B 150 - Ideally suited workshop grinder for smoothing, deburring and beveling
B 150 - Ideally suited workshop grinder for smoothing, deburring and beveling

B 150

SKU : 102886

The heavy belt grinder has a large grinding surface with an endless grinding belt that runs over a large contact roller. The angle of the grinder can be adjusted horizontally and connected to a dust extraction system via a nozzle. This belt grinder series has a particularly powerful main drive, ideal for grinding flat and straight surfaces or for chamfering and deburring edges. The contact roller is also ideal for grinding outer and inner radii or angles on narrow workpiece ends.

  • For precision grinding of tube unions
  • Contact roll for grinding of shaft ends
  • Longitudinal grinding surface for deburring
  • Suitable for stainless steel and aluminum
  • Ready for vacuum exhaust connection
Working Area
Contact wheel 8 in x 6 in
Belt dimensions 6 in x 79 in
Sanding area 21 in x 6 in
Belt speed 1287 in/s
Speed 2800 rpm
Drive Capacity
Motor rating main drive 5.4 Hp
Measures and Weights
Driving roller (dimensions) 9 in x 6 in
Overall dimensions (length x width x height) 42 in x 25 in x 50 in
Weight 282 lbs

  • Excellent grinding results due to minimal vibration during sanding belt operation and rigid design of all components
  • The wide contact roll is ideal for grinding edges, points and radii
  • Adjustable grinding support with adjustable eye protection for maximum accuracy and safety
  • One cover encloses the longitudinal grinding surface while it is not in use
  • Grinding belts can be changed within seconds via a quick-change vise, no tools required
  • Chip collectors help keep the work environment clean

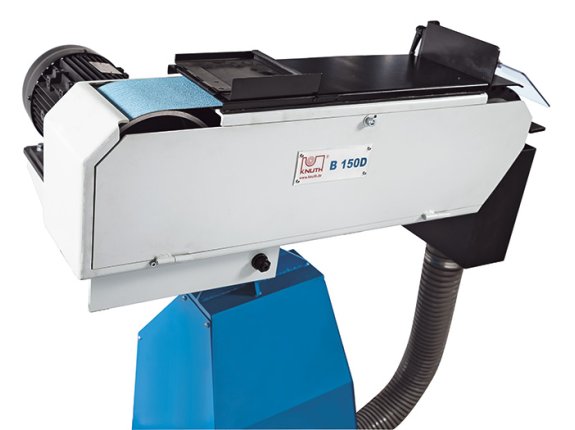

  • The B150 D Belt Sander features a base with integrated vacuum exhaust

Base SKU:

Machine base with storage space

Base
Base SKU:

Machine base with storage space

1 sanding belt
1 sanding belt SKU:
Support table
Support table SKU:
Safety observation shield
Safety observation shield SKU:
Operator instructions
Operator instructions SKU:
