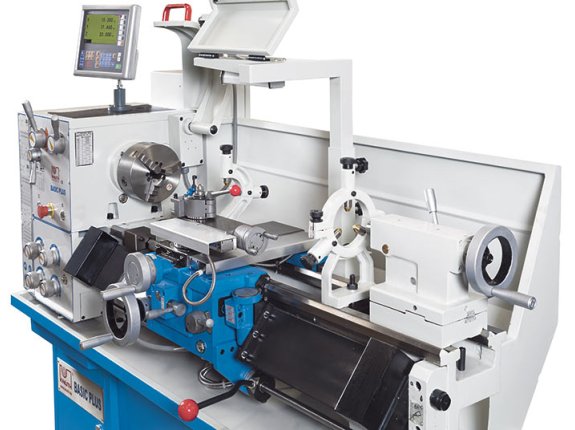

Basic Plus - Best-selling entry-level lathe with extended list of standard accessories, also ideal for training
Steady and follow rests are included

Steady and follow rests are included

Positioning indicator on X, Z and Z1 axis

Positioning indicator on X, Z and Z1 axis

Basic Plus - Best-selling entry-level lathe with extended list of standard accessories, also ideal for training
Steady and follow rests are included
Positioning indicator on X, Z and Z1 axis

Basic Plus

SKU : 300809

The Basic Plus is a versatile lathe for single part production. Due to the large selection of optional accessories, this model is the best choice for repair, training and workshops of all kinds.

  • Robustness and precision
  • Compact design with small footprint
  • Extensive standard equipment
  • Quick change tool holder
  • Assembled 3-axis position indicator
Working Area
Center width 31.89 in
Turning diameter over bed 12 in
Turning-Ø over support 7 in
Bed width 7 in
Travels
Travel X-axis 6.1 in
Travel Z1-axis 4 in
Swing range of top slide ± 60°
Headstock
Spindle speed 60 rpm - 1550 rpm
Spindle bore 1.5 in
Spindle mount Camlock D1-4
Spindle taper 5 MT
Feed
Feed X-axis 0.00055 in/R - 0.01496 in/R
Feed Z-axis 0.00205 in/R - 0.0548 in/R
Threading
Threading, metric (26) 04-7 mm
Threading, whitworth (34) 4-56 TPI
Tailstock
Tailstock quill diameter 1 in
Tailstock taper 3 MT
Tailstock quill stroke 4 in
Tailstock traverse adjustment ± 0.5 in
Drive Capacity
Motor rating main drive 1.5 Hp
Measures and Weights
Overall dimensions (length x width x height) 63 in x 30 in x 50 in
Weight 1144 lbs

  • Hardened and ground headstock gears
  • Headstock with Camlock D1-4" mount, bore diam. 1.5 in, run in 2 adjustable tapered roller bearings
  • Adjustable headstock bearing
  • Tailstock can be moved ± 0.4 in for taper turning
  • Reversing gear reversing gearbox for changing the feed direction
  • Guides are adjustable via tapered gibs
  • Cast-iron bed, double v-guide, hardened and ground

3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
Quick change tool holder head WA
Quick change tool holder head WA SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0.0004 in.

Quick change tool holder WAD 1675
Quick change tool holder WAD 1675 SKU:
3-jaw chuck Ø 6"
3-jaw chuck Ø 6" SKU:
  • self-centering 3 jaw chuck
  • size of Ø 6.3 in
  • made of cast iron
  • delivered with one set of hard jaw
4-jaw face plate chuck Ø 8"
4-jaw face plate chuck Ø 8" SKU:
  • independent4 jaw chuck
  • size of Ø 7.87 in
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 10"
Face plate Ø 10" SKU:

Face plate diam. Ø9.8 in

Steady and follow rests
Steady and follow rests SKU:
Micrometer stop
Micrometer stop SKU:

Increases the precision of operations and reduces downtimes spent for part measuring.

Thread gauge
Thread gauge SKU:
Reducing sleeve
Reducing sleeve SKU:
Dead center
Dead center SKU:
Protective shield for the toolpost
Protective shield for the toolpost SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Work light
Work light SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:

3-axis position indicator X.Pos 3.2

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Chucks and Accessories 4-Jaw Lathe Chuck Steel 6 inch
SKU : 116600
Lathe Tools and Accessories Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
SKU : 108775
Lathe Tool Post Tool Holder WAD 16x75
SKU : 103271
Lathe Tool Post Tool Holder WAD 16x90
SKU : 103272
Lathe Tool Post Tool Holder WAD 20x75
SKU : 103273
Lathe Tool Post Tool Holder WAJ 30x80
SKU : 103276
Lathe Tool Post Cut-off insert holder WAA-AO
SKU : 103277
Milling & Drilling Adapters Reduction Sleeve MT 3/1
SKU : 103810
Milling & Drilling Adapters Reduction Sleeve MT 3/2
SKU : 103815
Milling & Drilling Adapters Extension Sleeve MT 3/4
SKU : 104665
Drill Chucks Tool Holder Bit MT 3 / B 16
SKU : 104739
Drill Chucks Tool Holder Bit MT 3 / B 18
SKU : 104740
Drill Chucks Keyless Drill Chuck 0.04-0.5 in B 16
SKU : 104765
Drill Chucks Keyless Drill Chuck 0.12-0.63 in B 18
SKU : 104770

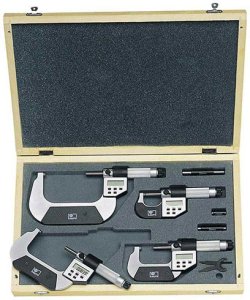

Micrometers Digital Micrometer Calipers 0 - 4 in
