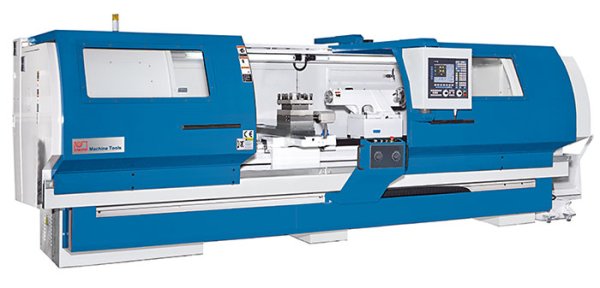

Forceturn 630.15 - Precision flatbed lathe with Fagor control, 4-fold tool changer and electronic handwheels for manual operation
Automatic changing 4-fold steel holder

Automatic changing 4-fold steel holder

Option: steady rests up to 16 in diameter

Option: steady rests up to 16 in diameter

Easy handling: for positioning, the tailstock can be coupled to the support

Easy handling: for positioning, the tailstock can be coupled to the support

Compact control unit with electronic hand-wheels

Compact control unit with electronic hand-wheels

Interface for data transmission, swivelling control operating unit

Interface for data transmission, swivelling control operating unit

USB interface

USB interface

Example for cycle mask insertion

Example for cycle mask insertion

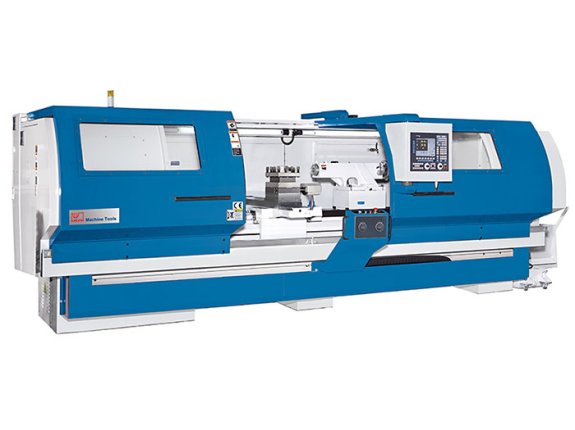

Forceturn 630.15 - Precision flatbed lathe with Fagor control, 4-fold tool changer and electronic handwheels for manual operation
Automatic changing 4-fold steel holder
Option: steady rests up to 16 in diameter
Easy handling: for positioning, the tailstock can be coupled to the support
Compact control unit with electronic hand-wheels
Interface for data transmission, swivelling control operating unit
USB interface
Example for cycle mask insertion

Forceturn 630.15

SKU : 100350

Our Forceturn series is the optimal solution for customers who want to machine large parts with a powerful CNC lathe. The robust flat bed design ensures high precision when machining heavy workpieces that can be up to 5,000 mm (197 in) long. The control is easy to use and has a teach-in function. Thanks to the two electronic handwheels, the machine can be operated in a similar way to a manual lathe. Options allow adaptation to special requirements. This makes the Forceturn series the best choice for maintenance departments or single part production.

  • Powerful main drive for heavy machining
  • Servo-driven 4-station tool changer
  • 2 electronic hand-wheels for manual operation
  • Cycle programming for series production
Working Area
Turning diameter over bed 26 in
Bed width 18 in
Center height 13 in
Turning-Ø over support 16 in
Workpiece length (max.) 63 in
Travels
Travel X-axis 17.7 in
Travel Z-axis 59 in
Headstock
Speed range 27 rpm - 2250 rpm
Spindle mount D1-8
Spindle bore 3.3 in
Rapid Feed
Rapid feed X-axis 196.85 in/min
Rapid feed Z-axis 196.85 in/min
Tool Head
Number of tool stations 4 positions
Accuracies
Positioning accuracy X-axis 0.00059 in
Positioning accuracy Z-axis 0.00059 in
Repeatability X-axis 0.00028 in
Repeatability Z-axis 0.00028 in
Tailstock
Tailstock taper 5 MT
Tailstock quill diameter 4 in
Tailstock quill stroke 7 in
Drive Capacity
Motor rating main drive 29.5 Hp
Main drive, continuous load 20.11 Hp
Motor rating X-axis 2.7 Hp
Motor rating Z-axis 4.83 Hp
Measures and Weights
Overall dimensions (length x width x height) 158 in x 89 in x 89 in
Weight 9020 lbs

Highlights

  • Fagor 8055i FL-TC featuring intuitive, easy to learn cycle programming, including Profile Editor, for batch and single part production of complex workpieces
  • Graphical simulation for added safety
  • 2 electronic hand-wheels at the control panel for manual operation and for easy, quick setup of new workpieces and tools

Machine Design

  • Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated
  • Powerful main drive motor handles part weights up to 3748 lb with ease
  • A high-performance coolant system and automatic central lubrication system are included
  • Spindle bore 3.35" (model 630) or 4.13" (model 800)

Spindle

  • Infinitely variable, programmable, and adjustable spindle speeds with automatic 3-step main gear

Main gear

  • Motor rating 20 / 30 HP

Tool Changer

  • Heavy, automatic 4-station servo-driven tool changer for programmed tool changes

Fagor 8055i FL-TC control SKU:
  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
Fagor 8055i FL-TC control
Fagor 8055i FL-TC control SKU:
  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
2 electronic hand-wheels
2 electronic hand-wheels SKU:
3-jaw chuck Ø 12”
3-jaw chuck Ø 12” SKU:
Automatic 3-step gears
Automatic 3-step gears SKU:
4-station servo tool holder
4-station servo tool holder SKU:
Coolant system
Coolant system SKU:
Central lubrication
Central lubrication SKU:

Mounted behind the bridge, this unit ensures automatic central lubrication, which minimizes service requirements and greatly increases machine reliability

Tailstock
Tailstock SKU:
Work lamp
Work lamp SKU:
Operating tools
Operating tools SKU:
Operating manual and programming instructions
Operating manual and programming instructions SKU:

Fagor 8055i FL-TC control

  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
Steady rest (5-14.6 in)
Steady rest (5-14.6 in) SKU: 250935
Steady rest (5-14.6 in)
Steady rest (1.97-11.8") SKU: 250936
Steady rest (1.97-11.8")
Steady rest (11-15.7" ) SKU: 250937
Steady rest (11-15.7" )
Chain-type chip conveyor SKU: 253047
Chain-type chip conveyor
Sauter 8-station tool turret acc. to VDI 40, servo-driven turret SKU: 254035
Sauter 8-station tool turret acc. to VDI 40, servo-driven turret
