HB 560 L - Stable double column construction with linear guide for large diameters with hydraulically clamping and swivelling vise

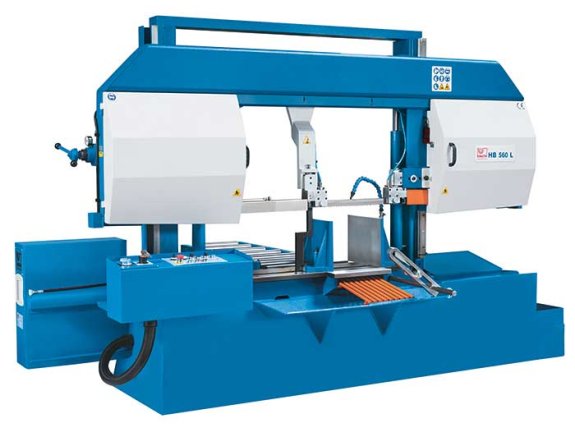

HB 560 L

HB 560 L - Stable double column construction with linear guide for large diameters with hydraulically clamping and swivelling vise

HB 560 L

SKU : 152811

The semi-automatic horizontal band saws of the HB-L series are the first choice for applications in the category of heavy cutting. They cut heavy workpieces made of steel, cast iron and other materials with high precision. The machines are characterized by a rigid and extremely stable dual column construction. Reduced vibrations enable shorter cutting times and higher accuracy. Functions such as the finely adjustable saw blade feed, the continuously adjustable saw blade speed and the swiveling workpiece clamping contribute to the excellent cutting performance of the HB-L series.

  • Double column design with linear guide
  • Semi-automatic operation
  • Automatic stroke height adjustment with optical sensor
  • 45Ā° swiveling vise for miter cutting
  • Short setup time for machine and workpiece
Cutting Capacities
Cutting capacity 0Ā° (round) 22 in
Cutting capacity 0Ā° (square) 22 in
Cutting capacity 0Ā° (flat) (length x width) 30 in x 22 in
Cutting capacity 45Ā° (round) 16 in
Cutting capacity 45Ā° (square) 16 in
Cutting capacity 45Ā° (flat) (length x width) 16 in x 22 in
Cutting speed 65.4 fpm - 327 fpm
Drive Capacity
Motor rating main drive 5.4 Hp
Motor rating hydraulic pump 1.5 Hp
Motor rating coolant pump 0.2 Hp
Measures and Weights
Blade dimensions 236.22 in x 1.61 in x 0.05 in
Overall dimensions (length x width x height) 134 in x 46 in x 89 in
Weight 3850 lbs

For precise sawing of sections and solid material like steel, aluminum and other material

  • Every model of this series provides infinitely variable cutting speeds from 66 to 328 ft/min
  • Powerful, low-maintenance motors for high reliability
  • Hydraulic workpiece clamping is now standard equipment on all models
  • Pressure gauge ensures correct saw blade tension for increased blade life and lower cost
  • Removable coolant reservoir for simplified maintenance
  • Saw blade tension can be precisely adjusted via a pressure gauge

With linear guide technology!

  • Torsion-proof steel construction with dual-column guide ā€“ rigid and vibration absorbing
  • The saw frame features a mono-frame design for travel across large linear guides
  • Advanced hydraulic saw frame feed with new pressure regulating system (PAS) allows optimum adjustment for every sawing task: infinitely variable feed speed and cutting power control provide a wide spectrum of machining possibilities with just one saw blade type
  • The control valve features identifications and labeling for sheets, solid materials and various other material types to provide maximum user-friendly handling
  • Optical registration of the workpiece height allows fully automated empty runs in rapid feed mode for a timely optimum change-over to work feed as well as limiting the vertical saw frame travel and keeping down-times to a minimum

Bimetallic band saw blade SKU:
Bimetallic band saw blade
Bimetallic band saw blade SKU:
Mechanical saw blade tensioning with hydraulic pressure gauge
Mechanical saw blade tensioning with hydraulic pressure gauge SKU:
Hydraulic part clamping
Hydraulic part clamping SKU:
Automatic stroke height adjustment
Automatic stroke height adjustment SKU:
Feed roller table 3 ft
Feed roller table 3 ft SKU:
PAS system
PAS system SKU:
Coolant system
Coolant system SKU:
Operator instructions
Operator instructions SKU:
3 meter roller table for HB 560 L
3 meter roller table for HB 560 L SKU: 251586
3 meter roller table for HB 560 L
hydraulic top clamping for HB 560 L SKU: 251584
hydraulic top clamping for HB 560 L
motorized 3 meter roller table for HB 560 L SKU: 251587
motorized 3 meter roller table for HB 560 L
chip conveyor for HB 560 L SKU: 251588
chip conveyor for HB 560 L
Turn Table for HB 560 L SKU: 251590
Turn Table for HB 560 L
hydraulic blade tentioning for HB 560 L SKU: 251591
hydraulic blade tentioning for HB 560 L
3 m Feed Roller Table with linear stop and digital display for HB 560 L SKU: 257419
3 m Feed Roller Table with linear stop and digital display for HB 560 L
6m Feed Roller Table with linear stop and digital display for HB 560 L SKU: 257420
6m Feed Roller Table with linear stop and digital display for HB 560 L
Minimum quantity cooling SKU: 253719
Minimum quantity cooling
Laser pointer SKU: 253753
Laser pointer
Clamping force controlled at operator panel SKU: 253899
Clamping force controlled at operator panel
Micro spray cooling system for band saws 400-810 SKU: 254015
Micro spray cooling system for band saws 400-810
