KMT RNC 2004 - Sliding block guided motorized plate shears with NC-controlled back gauge
KMT RNC 2004 - Sliding block guided motorized plate shears with NC-controlled back gauge

KMT RNC 2004

SKU : 133626

This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated Return-to-Sender function.

  • Solid steel weldment with sliding block guide
  • NC-controlled back gauge can be easily programmed
  • Automatic, semi-automatic, and manual modes
  • Cutter for stainless steel machining included
  • Reversible cutters with multiple cutting surfaces
  • Adjustable kerf
  • Return-to-Sender function
Working Area
Working length 81 in
Cutting angle 1.3 deg
Work table height 35 in
Work table depth 18 in
Number of support arms 2 positions
Support arms 39 in
Strokes per minute 31 H/min
Back Gauge
Rear stop 30 in
Cutting Capacities
Plate thickness (min.) - 450 N/mm² 0.008 in
Plate thickness (max.) - 450 N/mm² 0.157 in
Plate thickness(max.) - 700 N/mm² 0.079 in
Drive Capacity
Motor rating main drive 10.1 Hp
Measures and Weights
Overall dimensions (length x width x height) 107 in x 93 in x 56 in
Weight 6820 lbs

Machine Frame

  • The machine frame is made of a very rigid, solid steel weldment and the cutter bar is sliding-block guided
  • The high-precision guide ensures clean cuts and special cutters for machining stainless steel plates are included
  • The upper cutters are reversible for use of both sides, and the lower cutters feature 4 cutting edges
  • A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line
  • The optimum kerf for machining can be adjusted manually

Ergonomic Design

  • The “Return-to-Sender” function is an innovative plate shears feature that returns the cut off metal sheet automatically back to the operator position. This function provides increased process efficiency and operator safety
  • The rigid side angle stop simplifies precise alignment of the plate perpendicular to the cut line
  • Rugged support arms ensure a strong hold of large plates
  • Material support rollers are recessed in the table to simplify workpiece handling and avoid scratches on the workpiece
  • The mobile foot switch gives the operator added flexibility and both hands are free for handling the workpiece
  • The bright LED illumination of the cut line creates a clearly visible shadow on the marked line
  • Additionally, the smart machine enclosure design allows vertical view from the top for exact workpiece alignment
  • All lubrication points and adjustment screws are easily accessible to simplify regular maintenance

Rear stop:

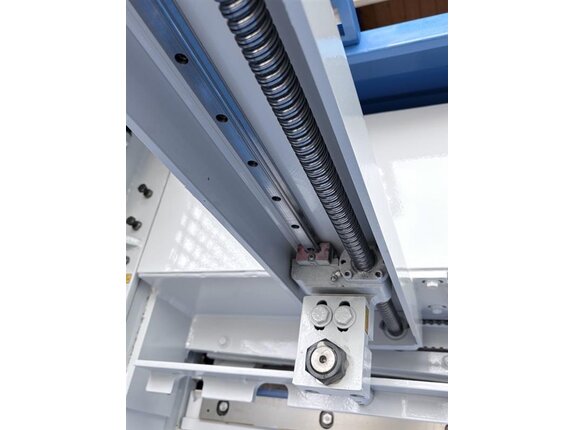

  • The motorized back gauge ensures precise positioning in automatic, semi-automatic and manual mode
  • The NC-controlled back gauge can be easily and quickly programmed
  • The easy accessible work area at the back gauge is secured by light curtain

Equipment

  • High-quality electric components ensure reliable operation and maximum availability
  • The full machine enclosure provides maximum safety, features a practical design and is precision machined

BRL NC controller SKU:
BRL NC controller
BRL NC controller SKU:
cut counter
cut counter SKU:
cut-line lighting
cut-line lighting SKU:
finger guard
finger guard SKU:
light curtain
light curtain SKU:
upper cutter with 2 cutting edges / Lower cutter with 4 cutting edges
upper cutter with 2 cutting edges / Lower cutter with 4 cutting edges SKU:
foot switch with emergency stop switch
foot switch with emergency stop switch SKU:
lateral stop with scale and T-slots
lateral stop with scale and T-slots SKU:
support arms
support arms SKU:
Motorized rear stop (29 inch)
Motorized rear stop (29 inch) SKU:
manual kerf adjustment
manual kerf adjustment SKU:
manual Return-to-Sender function
manual Return-to-Sender function SKU:
table with material support rollers
table with material support rollers SKU:
Operator instructions
Operator instructions SKU:
Additional blade kit for 78.7" cut length
Additional blade kit for 78.7" cut length SKU: 254193
Additional blade kit for 78.7" cut length
Angular stop adjusts from 0 to 180° SKU: 254196
Angular stop adjusts from 0 to 180°
Back gauge travel increased to 39.4" SKU: 254197
Back gauge travel increased to 39.4"
Side stop L = 78.7" SKU: 254198
Side stop L = 78.7"
Support arms L = 79"( 1 each) SKU: 254201
Support arms L = 79"( 1 each)
Pneumatic sheet hold-up device with reset function SKU: 254203
Pneumatic sheet hold-up device with reset function
Fuji control SKU: 254204
Fuji control
