RSM A Series

The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longitudinal direction. A large scale ring on the handwheel of the X-axis facilitates precise infeed and the zero stop guarantees compliance with the desired dimension. The standard position indicator with linear scales is used to check the actual values. The headstock is rotated 180 degrees for internal grinding. An extensive accessory package is standard.
The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longit...
read more
Models
RSM 800 RSM 500 A
Center height
5 in
5 in
Workpiece length (max.)
37 in
25 in
Grinding length
31 in
20 in
Grinding diameter
0.3 in - 7.9 in
0.3 in - 7.9 in
Inside grinding diameter without rest
1 in - 3.9 in
1 in - 3.9 in
Work piece weight between centers (max.)
110 lbs
110 lbs
Inside grinding spindle speed
16000 rpm
16000 rpm
Grinding wheel dimensions
15.75 in x 1.97 in x 7.99 in
15.75 in x 1.97 in x 7.99 in
Overall dimensions (length x width x height)
119 in x 63 in x 60 in
99 in x 63 in x 60 in
Weight
6600 lbs
5500 lbs
View Machine
View Machine
-
Center height
Workpiece length (max.)
Grinding length
Grinding diameter
Inside grinding diameter without rest
Work piece weight between centers (max.)
Inside grinding spindle speed
Grinding wheel dimensions
Overall dimensions (length x width x height)
Weight

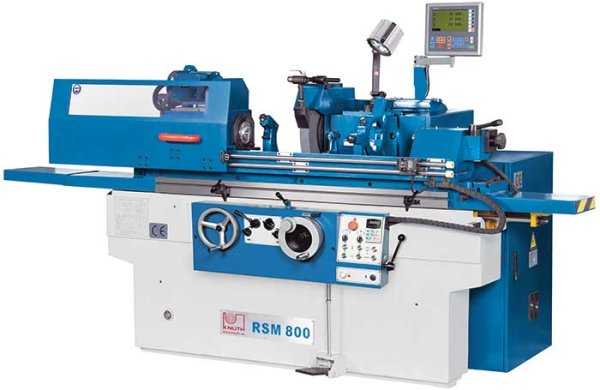

RSM 800
Center height 5 in
Workpiece length (max.) 37 in
Grinding length 31 in
Grinding diameter 0.3 in - 7.9 in
Inside grinding diameter without rest 1 in - 3.9 in
Work piece weight between centers (max.) 110 lbs
View Machine
RSM 500 A
Center height 5 in
Workpiece length (max.) 25 in
Grinding length 20 in
Grinding diameter 0.3 in - 7.9 in
Inside grinding diameter without rest 1 in - 3.9 in
Work piece weight between centers (max.) 110 lbs
View Machine
