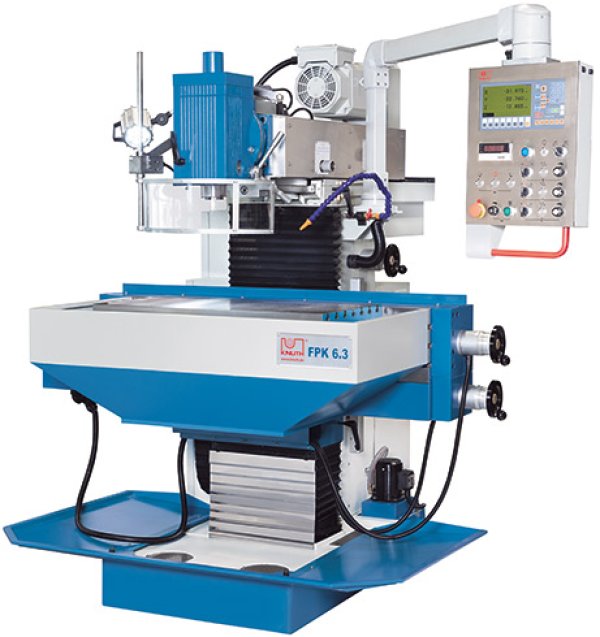

FPK 4.3 • FPK 6.3 Series

This versatile tool-milling machine has become an indispensable part of mechanical production in tool and mold making. The compact design, which offers a lot of flexibility and at the same time is very easy to use, has proven itself many times and has been interpreted in a modern way. Servo drives and ball screws make the machine even more powerful and precise. The entire series is ideally suited for the construction of tools and molds in repair shops as well as training and manufacturing departments.
This versatile tool-milling machine has become an indispensable part of mechanical production in tool and mold making. The compact design, which offers a lot of flexibility and at the same time is ver...
read more
Models
Table dimensions
18 in x 33 in
16 in x 31 in
Travel X-axis
23.6 in
19.7 in
Travel Y-axis
18 in
16 in
Travel Z-axis
18 in
16 in
Rapid feed X-axis
47.24 in/min
47.24 in/min
Speed range
40 rpm - 2000 rpm
40 rpm - 2000 rpm
Spindle mount
SK 40 DIN 2080
SK 40 DIN 2080
Motor rating main drive
7.4 Hp
4.3 Hp
Overall dimensions (length x width x height)
63 in x 71 in x 79 in
60 in x 67 in x 71 in
Weight
3850 lbs
3410 lbs
-
Table dimensions
Travel X-axis
Travel Y-axis
Travel Z-axis
Rapid feed X-axis
Speed range
Spindle mount
Motor rating main drive
Overall dimensions (length x width x height)
Weight
FPK 6.3
Table dimensions 18 in x 33 in
Travel X-axis 23.6 in
Travel Y-axis 18 in
Travel Z-axis 18 in
Rapid feed X-axis 47.24 in/min
Speed range 40 rpm - 2000 rpm
View Machine
FPK 4.3
Table dimensions 16 in x 31 in
Travel X-axis 19.7 in
Travel Y-axis 16 in
Travel Z-axis 16 in
Rapid feed X-axis 47.24 in/min
Speed range 40 rpm - 2000 rpm
View Machine
