VB-A Series

A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides
A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and ...
read more
Models
VB 300 A VB 400 A VB 500 A VB 585 A
Table dimensions
20 in x 16 in x 35 in
24 in x 22 in x 38 in
28 in x 26 in x 39 in
28 in x 26 in x 39 in
Table with angle adjustment (l/r)
15/45 deg
15/45 deg
15/30 deg
15/30 deg
Cutting capacity height x throat
7 in x 12 in
11 in x 16 in
12 in x 20 in
13 in x 23 in
Cutting speed
32.7 fpm - 588.6 fpm
49.05 fpm - 850.2 fpm
49.05 fpm - 1072.56 fpm
49.05 fpm - 1072.56 fpm
Motor rating main drive
0.7 Hp
2 Hp
2 Hp
2 Hp
Blade welder capacity
2.4 kVA
2.4 kVA
2.4 kVA
2.4 kVA
Blade width
0.12 in - 0.63 in
0.12 in - 0.59 in
0.12 in - 0.63 in
0.24 in - 0.75 in
Blade length
111.61 in - 114.76 in
133.46 in - 136.5 in
156.69 in - 159.45 in
174.41 in - 177.95 in
Overall dimensions (length x width x height)
36 in x 33 in x 63 in
42 in x 37 in x 72 in
50 in x 41 in x 78 in
53 in x 42 in x 84 in
Weight
605 lbs
693 lbs
902 lbs
1221 lbs
View Machine
View Machine
View Machine
View Machine
-
Table dimensions
Table with angle adjustment (l/r)
Cutting capacity height x throat
Cutting speed
Motor rating main drive
Blade welder capacity
Blade width
Blade length
Overall dimensions (length x width x height)
Weight

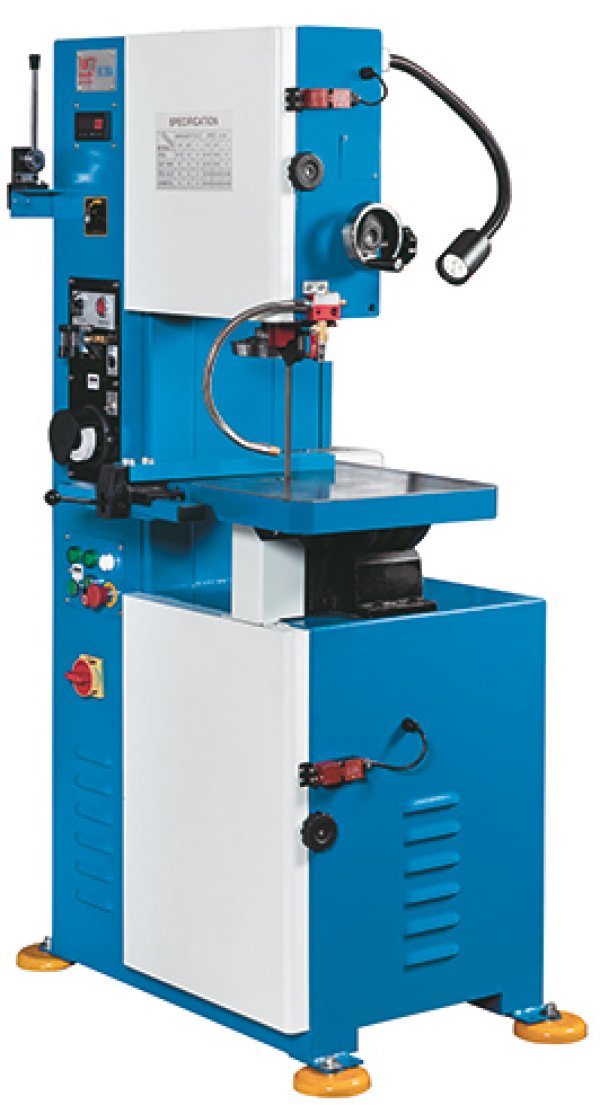

VB 300 A
Table dimensions 20 in x 16 in x 35 in
Table with angle adjustment (l/r) 15/45 deg
Cutting capacity height x throat 7 in x 12 in
Cutting speed 32.7 fpm - 588.6 fpm
Motor rating main drive 0.7 Hp
Blade welder capacity 2.4 kVA
View Machine
VB 400 A
Table dimensions 24 in x 22 in x 38 in
Table with angle adjustment (l/r) 15/45 deg
Cutting capacity height x throat 11 in x 16 in
Cutting speed 49.05 fpm - 850.2 fpm
Motor rating main drive 2 Hp
Blade welder capacity 2.4 kVA
View Machine
VB 500 A
Table dimensions 28 in x 26 in x 39 in
Table with angle adjustment (l/r) 15/30 deg
Cutting capacity height x throat 12 in x 20 in
Cutting speed 49.05 fpm - 1072.56 fpm
Motor rating main drive 2 Hp
Blade welder capacity 2.4 kVA
View Machine
VB 585 A
Table dimensions 28 in x 26 in x 39 in
Table with angle adjustment (l/r) 15/30 deg
Cutting capacity height x throat 13 in x 23 in
Cutting speed 49.05 fpm - 1072.56 fpm
Motor rating main drive 2 Hp
Blade welder capacity 2.4 kVA
View Machine
