KMT RNC Series

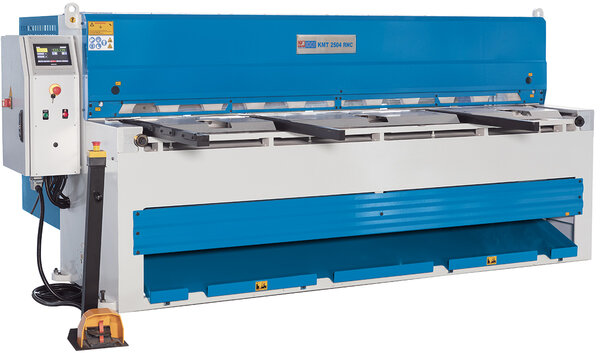

This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated Return-to-Sender function.
This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid...
read more
Models
KMT RNC 1505 KMT RNC 2004 KMT RNC 2504 KMT RNC 3004
Rear stop
30 in
30 in
30 in
30 in
Working length
61 in
81 in
101 in
120 in
Plate thickness (max.) - 450 N/mm²
0.197 in
0.157 in
0.157 in
0.157 in
Plate thickness(max.) - 700 N/mm²
0.098 in
0.079 in
0.079 in
0.079 in
Cutting angle
2 deg
1.3 deg
1.3 deg
1.3 deg
Motor rating main drive
10.1 Hp
10.1 Hp
10.1 Hp
14.8 Hp
Overall dimensions (length x width x height)
89 in x 93 in x 56 in
107 in x 93 in x 56 in
126 in x 93 in x 56 in
146 in x 93 in x 56 in
Weight
5720 lbs
6820 lbs
7700 lbs
9020 lbs
View Machine
View Machine
View Machine
View Machine
-
Rear stop
Working length
Plate thickness (max.) - 450 N/mm²
Plate thickness(max.) - 700 N/mm²
Cutting angle
Motor rating main drive
Overall dimensions (length x width x height)
Weight
KMT RNC 1505
Rear stop 30 in
Working length 61 in
Plate thickness (max.) - 450 N/mm² 0.197 in
Plate thickness(max.) - 700 N/mm² 0.098 in
Cutting angle 2 deg
Motor rating main drive 10.1 Hp
View Machine
KMT RNC 2004
Rear stop 30 in
Working length 81 in
Plate thickness (max.) - 450 N/mm² 0.157 in
Plate thickness(max.) - 700 N/mm² 0.079 in
Cutting angle 1.3 deg
Motor rating main drive 10.1 Hp
View Machine
KMT RNC 2504
Rear stop 30 in
Working length 101 in
Plate thickness (max.) - 450 N/mm² 0.157 in
Plate thickness(max.) - 700 N/mm² 0.079 in
Cutting angle 1.3 deg
Motor rating main drive 10.1 Hp
View Machine
KMT RNC 3004
Rear stop 30 in
Working length 120 in
Plate thickness (max.) - 450 N/mm² 0.157 in
Plate thickness(max.) - 700 N/mm² 0.079 in
Cutting angle 1.3 deg
Motor rating main drive 14.8 Hp
View Machine
