KMT S NC Series

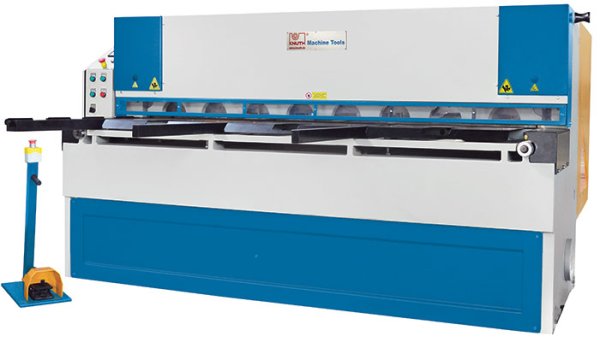

This model from the KMT S NC series is a modern, high-quality guillotine shear with high-quality components. The powerful motorised drive offers a high cutting capacity of up to four sheet thicknesses. The very sturdy design with a slotted blade bar and a small cutting angle of 1.3 degrees also enables cuts with minimal distortion in the workpiece. The cutting gap can be adjusted manually, while the cutting length is positioned via the NC control. Simple operation and quick adjustment reduce non-productive times in production.
This model from the KMT S NC series is a modern, high-quality guillotine shear with high-quality components. The powerful motorised drive offers a high cutting capacity of up to four sheet thicknesses...
read more
Models
Working length
81 in
100 in
Cutting angle
1.3 deg
1.3 deg
Work table height
32 in
32 in
Number of support arms
3 positions
3 positions
Rear stop
30 in
30 in
Overall dimensions (length x width x height)
107 in x 85 in x 58 in
126 in x 85 in x 58 in
Weight
6600 lbs
7700 lbs
-
Working length
Cutting angle
Work table height
Number of support arms
Rear stop
Overall dimensions (length x width x height)
Weight
KMT S 2054 NC
Working length 81 in
Cutting angle 1.3 deg
Work table height 32 in
Number of support arms 3 positions
Rear stop 30 in
Overall dimensions (length x width x height) 107 in x 85 in x 58 in
View Machine
KMT S 2554 NC
Working length 100 in
Cutting angle 1.3 deg
Work table height 32 in
Number of support arms 3 positions
Rear stop 30 in
Overall dimensions (length x width x height) 126 in x 85 in x 58 in
View Machine
