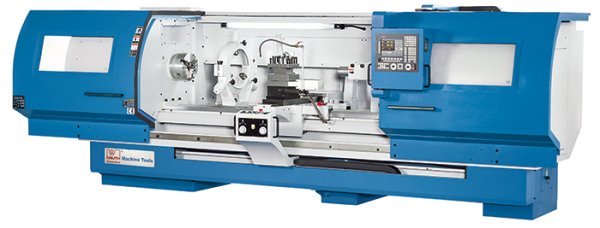

Forceturn Series

Our Forceturn series is the optimal solution for customers who want to machine large parts with a powerful CNC lathe. The robust flat bed design ensures high precision when machining heavy workpieces that can be up to 5,000 mm (197 in) long. The control is easy to use and has a teach-in function. Thanks to the two electronic handwheels, the machine can be operated in a similar way to a manual lathe. Options allow adaptation to special requirements. This makes the Forceturn series the best choice for maintenance departments or single part production.
Our Forceturn series is the optimal solution for customers who want to machine large parts with a powerful CNC lathe. The robust flat bed design ensures high precision when machining heavy workpieces ...
read more
Models
Turning diameter over bed
26 in
26 in
26 in
32 in
32 in
32 in
Turning-Ø over support
16 in
16 in
16 in
22 in
22 in
22 in
Workpiece length (max.)
63 in
122 in
201 in
63 in
122 in
201 in
Speed range
27 rpm - 2250 rpm
27 rpm - 2250 rpm
27 rpm - 2250 rpm
20 rpm - 1500 rpm
20 rpm - 1500 rpm
20 rpm - 1500 rpm
Number of tool stations
4 positions
4 positions
4 positions
4 positions
4 positions
4 positions
Motor rating main drive
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
Main drive, continuous load
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
Weight
9020 lbs
12320 lbs
16720 lbs
9900 lbs
13200 lbs
17600 lbs
-
Turning diameter over bed
Turning-Ø over support
Workpiece length (max.)
Speed range
Number of tool stations
Motor rating main drive
Main drive, continuous load
Weight
Forceturn 630.15
Turning diameter over bed 26 in
Turning-Ø over support 16 in
Workpiece length (max.) 63 in
Speed range 27 rpm - 2250 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
Forceturn 630.30
Turning diameter over bed 26 in
Turning-Ø over support 16 in
Workpiece length (max.) 122 in
Speed range 27 rpm - 2250 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
Forceturn 630.50
Turning diameter over bed 26 in
Turning-Ø over support 16 in
Workpiece length (max.) 201 in
Speed range 27 rpm - 2250 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
Forceturn 800.15
Turning diameter over bed 32 in
Turning-Ø over support 22 in
Workpiece length (max.) 63 in
Speed range 20 rpm - 1500 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
Forceturn 800.30
Turning diameter over bed 32 in
Turning-Ø over support 22 in
Workpiece length (max.) 122 in
Speed range 20 rpm - 1500 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
Forceturn 800.50
Turning diameter over bed 32 in
Turning-Ø over support 22 in
Workpiece length (max.) 201 in
Speed range 20 rpm - 1500 rpm
Number of tool stations 4 positions
Motor rating main drive 29.5 Hp
View Machine
