Plasma-Jet Eco Compact 1530
Plasma-Jet Eco Compact 1530

Plasma-Jet Eco Compact 1530

SKU : 143025

$24,500.00
Working Area
Cutting width 59 in
Cutting length 118 in
Distance between cutter head and table 6 in
Table load capacity 205 lbs/ft²
Table height 31 in
Plasma source
Plasma Source Powermax 105®
Rapid Feed
Rapid feed 591 in/min
Cutting capacity in plain carbon steel
Severing cut 1 in
Production capacity (plunge cuts) 1 in
Measures and Weights
Total width 93 in
Total length (without control panel) 161 in
Height 87 in
Weight 5610 lbs

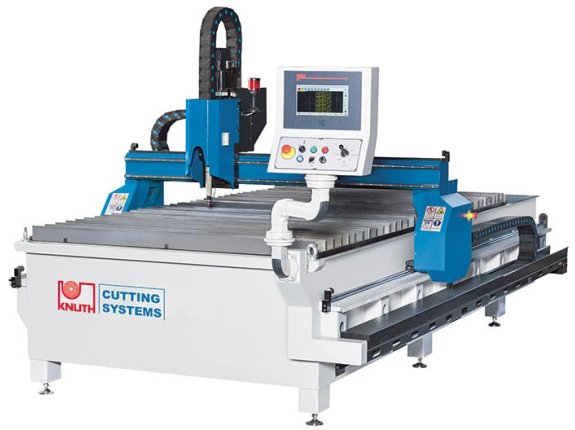

The compact machine frame is perfect for small spaces

  • Plasma cutting system for personal use providing high value at a lost cost
  • Careful selection of the optimum components ensures that the same cutting functionality is available as in large plasma cutting systems
  • Machine can be moved and transported in its fully assembled state
  • The drives on both sides of the machine bridge and the drive of the X-slide along the machine bridge are carried out in a permanently precise manner by helical rack and pinion
  • The machine has a segment-wise suction of the working surface, whereby the respective suction flap is opened mechanically by the machine bridge passing.
  • The distance between plasma cutting nozzle and plate surface is maintained by the Z axis height control; height control is regulated by an electric arc
  • Plasma cutter head with collision guard
  • For thin plates, the distance can also be regulated by roller guides on the plate surface, whereby the roller guides are lowered onto the plate surface pneumatically while the electric arc control is shut off (custom option upon request)

Operating manual and programming instructions SKU:
Operating manual and programming instructions
Operating manual and programming instructions SKU:
Powermax 105 plasma source
Powermax 105 plasma source SKU:
ESA CNC control
ESA CNC control SKU:
Work table with vacuum connector and mechanic shutter control
Work table with vacuum connector and mechanic shutter control SKU:
Dual-drive bridge
Dual-drive bridge SKU:
Gear drives for X/Y movement
Gear drives for X/Y movement SKU:
ESA servo drives
ESA servo drives SKU:
Integrated linear guide with preloaded ball screws for Z axis
Integrated linear guide with preloaded ball screws for Z axis SKU:
Torch height control
Torch height control SKU:
Magnetic cutter head coupler
Magnetic cutter head coupler SKU:
Grid nesting software
Grid nesting software SKU:

Machine control

  • IPC based on AMD ETX-LX800, 500 MHz, 128 MB DRAM
  • 10 inch color touchscreen
  • 128 MB hard drive
  • Ethernet port 10/100 Mbit for LAN connection
  • USB 2.0 ports
  • The user interface is functional and very easy to handle:
  • The cutting job to be executed is selected on the touchscreen.The respective cutting parameters are also entered there.

Control console with

  • • Emergency-stop button • Start button for the drives • Selector for plasma source Off / On • Start button for cutting start • Stop button for cutting interruption • Joystick for manual movement of the machine axes • Override knob for cutting speed reduction also during cutting • USB port for entering NC programs

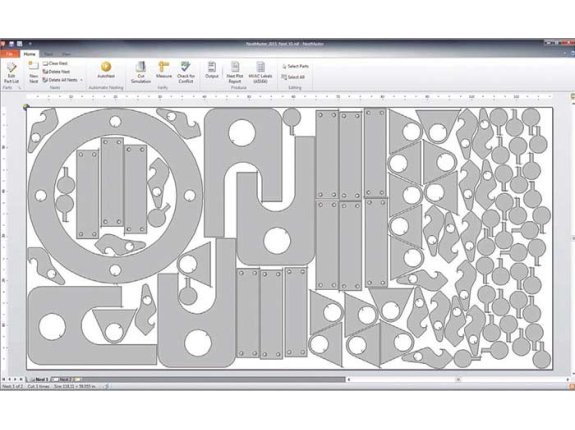

  • The standard equipment includes the SigmaNEST® CADCAM software AutoNEST™, by the help of which the NC programs for the cutting system can be generated: setting of the piercing points, the leading lines and the end points of cut, automatic nesting of the cut parts on the sheet by means of rectangle areas (grid boxes) or manual nesting. The software is delivered on a data storage and is to be installed on an existing workstation memory. The generated NC data records can be transferred to the machine control via LAN or via USB sticks.
