RSM 800 - Inside and outside machining with manual feed on transverse axis

RSM 800 is shown

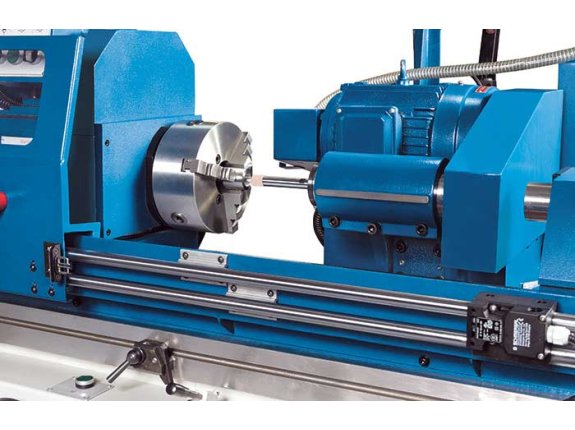

Grinding headstock can be rotated 180º to change from inside to outside grinding

Grinding headstock can be rotated 180º to change from inside to outside grinding

RSM 800 - Inside and outside machining with manual feed on transverse axis
Grinding headstock can be rotated 180º to change from inside to outside grinding

RSM 800

SKU : 370150

The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longitudinal direction. A large scale ring on the handwheel of the X-axis facilitates precise infeed and the zero stop guarantees compliance with the desired dimension. The standard position indicator with linear scales is used to check the actual values. The headstock is rotated 180 degrees for internal grinding. An extensive accessory package is standard.

  • Internal and external grinding
  • Hydrostatic bearings for high surface quality
  • Swiveling headstock for conical grinding of short parts
  • Integrated rapid feed on Z-axis with manual return
  • Extensive package of standard accessories
Working Area
Center height 5 in
Workpiece length (max.) 37 in
Grinding length 31 in
Grinding diameter 0.3 in - 7.9 in
Inside grinding diameter without rest 1 in - 3.9 in
Work piece weight between centers (max.) 110 lbs
Inside grinding depth 4.9 in
Table swivel range (max.) -3° / +8° R / L
Wheel speeds 1365 in/s
Feed
Table feed, infinitely variable 0.33 fpm - 13.08 fpm
Feed per scale division X-axis 0.000197 in
Headstock
Working headstock swivel range 0-45°
Spindle taper 4 MT
Grinding headstock
Inside grinding spindle speed 16000 rpm
Grinding headstock swivel range (r+l) ± 30°
Tailstock
Tailstock taper 4 MT
Measures and Weights
Grinding wheel dimensions 15.75 in x 1.97 in x 7.99 in
Grindstone dimensions, inside grinding (max.) 2 in x 1.6 in x 0.6 in
Grindstone dimensions, inside grinding (min.) 1.4 in x 1.8 in x 0.4 in
Overall dimensions (length x width x height) 119 in x 63 in x 60 in
Weight 6600 lbs

  • Proven and extremely rigid machine frame made of premium cast-iron - this machine's high intrinsic weight, diligent design and production create optimum conditions for excellent grinding and sanding results
  • Infinitely variable hydraulic linear feed
  • High-precision guideways of linear and transverse movement consisting of combined V-guides and box ways
  • Hydraulic adjustment of the grinding headstock simplifies set-up, workpiece exchanges and reduces downtime
  • Grinding spindle with segmented high-precision bearing, adjustable and low maintenance
  • Work spindle speeds are infinitely variable and can be easily adjusted and optimized during the machining process
  • Machine table swivels for taper grinding
  • Hydraulic tailstock with foot switch
