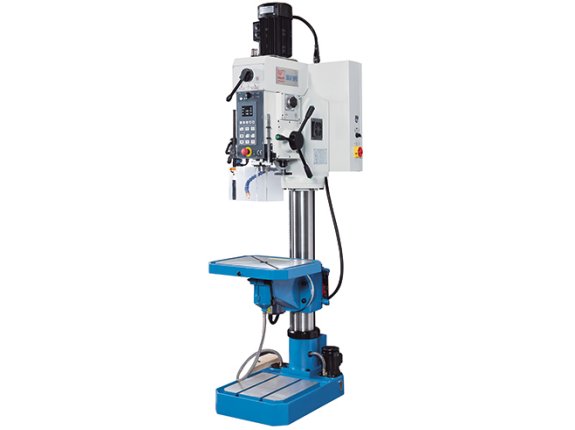

SSB 40 F Super - The bestseller with infinitely variable speed control, motorised moving clamping table and extensive features
SSB 40 F Super - The bestseller with infinitely variable speed control, motorised moving clamping table and extensive features

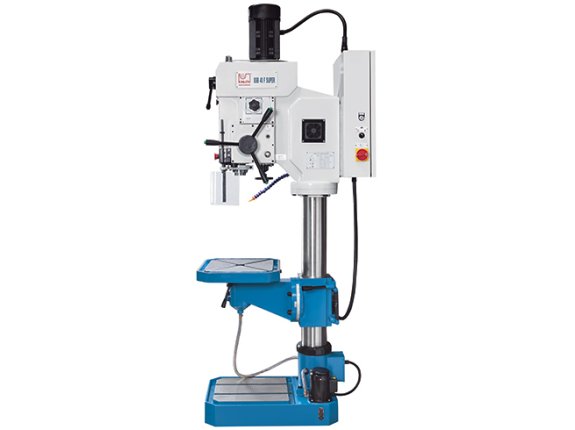

SSB 40 F Super

SKU : 162335

The drilling machines of the SSB F Super series are the right choice for every workshop, from maintenance to production. The sturdy drilling machines are constructed with a thick-walled column and powerful drives. The spindle speed is infinitely variable and the quill feed has a robust gearbox. Whether via the control panel or touchscreen, all functions are clearly displayed and are easy to use. The clamping table can be moved in height using a motor and facilitates the handling of heavy parts.

  • High drilling and thread cutting capacity
  • Infinitely variable speed
  • Motorized table height adjustment
  • Swiveling and rotating setup table
  • Fully equipped
Working Area
Drilling capacity 1.57 in
Tapping capacity, steel M 24
Table set up area 21 in x 17 in
Quill stroke 7 in
Manual table travel 22.44 in
Powered table travel 16.93 in
Table swivel range (max.) ± 45°
Column diameter 6 in
Spindle nose-to-table surface distance 23 in
Spindle nose-to-foot distance 47 in
Throat depth 13 in
Headstock
Speed range 60 rpm - 2600 rpm
Spindle mount 4 MT
Feed
Quill feeds 0.004; 0.008; 0012; 0.016 (4) “/rev
Drive Capacity
Motor rating main drive 2.7 Hp
Measures and Weights
Overall dimensions (length x width x height) 40 in x 26 in x 88 in
Weight 1100 lbs

Ideal for drilling, countersinking, reaming and tapping

  • Very rigid construction with thick-walled column and large throat
  • Infinitely variable speed adjustment and digital speed display
  • 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
  • Motorized table height adjustments
  • Digital boring depth display

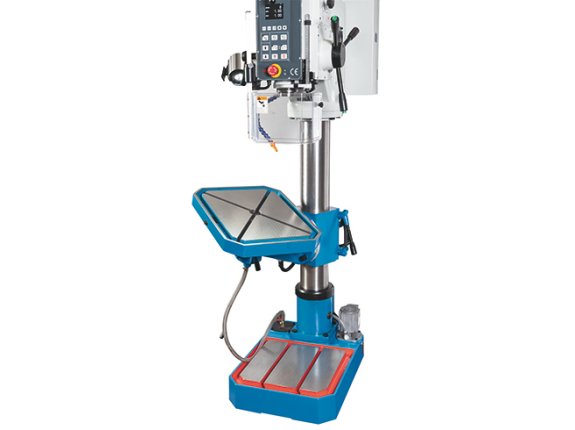

  • Large drilling table with circumferential coolant groove, height adjustment, and ± 45° swivel range
  • Tapping unit is Standard equipment

Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Protective shield
Protective shield SKU:
  • With interlock system for increased safety
  • High adjustable
LED work lamp
LED work lamp SKU:
Coolant system
Coolant system SKU:
Operating tools
Operating tools SKU:
Operator manual
Operator manual SKU:
