V-Turn 410/1000

SKU : 300820

Our bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 1/min and processes workpieces with small diameters efficiently and of the best quality. The models also offer strength and stability for heavier machining. When facing, the "constant cutting speed" function integrated in the X-Pos adapts the spindle speed to the turning diameter and thus delivers quality that is comparable to the results of a CNC machine.

  • Constant cutting speed
  • High spindle speed and motor power
  • Extensive standard equipment
  • Roller bearing from world-leading manufacturer NSK

Please request a quote for our latest pricing and delivery updates

Working Area
Center width 39.37 in
Center height 8 in
Turning diameter over bed 15 in
Turning diameter over gap bridge 23 in
Turning-Ø over support 10 in
Gap bridge length 10 in
Bed width 10 in
Travels
Travel X-axis 8.3 in
Travel Z1-axis 6 in
Swing range of top slide ± 45°
Headstock
Speed range, high 550 rpm - 3000 rpm
Speed range, low 30 rpm - 550 rpm
Spindle bore 2 in
Spindle mount Camlock D1-6
Spindle taper 6 MT
Feed
Feed X-axis 0.00098 in/R - 0.03346 in/R
Feed Z-axis 0.00197 in/R - 0.06693 in/R
Threading
Threading, metric (39) 02-14 mm
Threading, diametric (21) 8-44 DP
Threading, module 0.3 mm - 3.5 mm
Threading, whitworth (45) 2-72 TPI
Tailstock
Tailstock quill diameter 2 in
Tailstock taper 4 MT
Tailstock quill stroke 5 in
Tailstock traverse adjustment ± 0.5 in
Drive Capacity
Motor rating main drive 7.4 Hp
Measures and Weights
Overall dimensions (length x width x height) 77 in x 40 in x 52 in
Weight 2640 lbs

  • Constant cutting speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
  • A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
  • Wide, hardened and ground guideways ensure superior turning results and long life
  • Large spindle bearings and high-precision headstock ensure excellent concentricity
  • Headstock gears and shafts are hardened and ground for quiet operation und constant speed
  • 7 Hp headstock motor ensures powerful machining
  • Spindle speeds are infinitely variable from 30 to 550 and 550 to 3000 rpm
  • Micrometer and turret stop are included
  • Integrated central lubrication at the support for low maintenance
  • The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
  • Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
  • The electromagnetic brake on the main spindle is maintenance-free and slows the machine safely and reliably

3-axis position indicator, X.pos 3.2 VC SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
3-axis position indicator, X.pos 3.2 VC
3-axis position indicator, X.pos 3.2 VC SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
4-jaw face plate chuck Ø 10 inch
4-jaw face plate chuck Ø 10 inch SKU:
  • independent 4 jaw chuck
  • size of Ø 9.8 in
  • made of cast iron
  • delivered with one set of hard jaws
Face plate (13" diam.)
Face plate (13" diam.) SKU:

Face plate diam. Ø13.7 in

Quick-change tool holder head WB
Quick-change tool holder head WB SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0.0004 in.

Quick change tool holder WBD 25120
Quick change tool holder WBD 25120 SKU:
Coolant system
Coolant system SKU:
Steady rest
Steady rest SKU:

Max. working diameter Ø130 mm

Follow rest
Follow rest SKU:
Turret stop
Turret stop SKU:

Turret stop with 4 positions which are used as spacers when paired with a micrometre stop

Micrometer stop
Micrometer stop SKU:
Chip tray
Chip tray SKU:
Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Protective shield for the toolpost
Protective shield for the toolpost SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

Foot brake pedal
Foot brake pedal SKU:
Work light
Work light SKU:
Reducing Sleeve
Reducing Sleeve SKU:
Dead center
Dead center SKU:
Thread gauge
Thread gauge SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:

3-axis position indicator, X.pos 3.2 VC

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • Optical Scales: 5 μm resolution (0.000197") with outside cover from aluminum for protection against oil, coolant and chips

Basic Functions

  • Resolution of 0.000197"
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Chucks and Accessories 3-Jaw Lathe Chuck Steel 7.9 in
SKU : 146372
Chucks and Accessories 4-Jaw Lathe Chuck Steel 8 in
SKU : 146472
Lathes accessories Quick-Set Spindle Bore Stop Size 6 1.8-2.3 in
SKU : 103020
Lathe Tool Post Tool Holder WBD 25x100
SKU : 103291
Lathe Tool Post Tool Holder WBD 25x140
SKU : 103292
Lathe Tool Post Tool Holder WBD 32x120
SKU : 103293
Lathe Tool Post Tool Holder WBD 32x140
SKU : 103294
Lathe Tool Post Tool Holder WBH 32x130
SKU : 103295
Lathe Tool Post Tool Holder WBJ 40x120
SKU : 103296
Lathe Tool Post Cut-off insert holder WBA-A2a
SKU : 103297
Lathe Tool Post Tool Holder WBH 18x120
SKU : 103298
Milling & Drilling Adapters Reduction Sleeve MT 4/1
SKU : 103820
Milling & Drilling Adapters Reduction Sleeve MT 4/2
SKU : 103825
Milling & Drilling Adapters Reduction Sleeve MT 4/3
SKU : 103830
Milling & Drilling Adapters Extension Sleeve MT 4/5
SKU : 104670
Drill Chucks Tool Holder Bit MT4 / B16
SKU : 104745
Drill Chucks Tool Holder Bit MT4 / B18
SKU : 104750
Drill Chucks Keyless Drill Chuck 0.04-0.5 in B 16
SKU : 104765
Drill Chucks Keyless Drill Chuck 0.12-0.63 in B 18
SKU : 104770
Lathe Tools and Accessories Turning Tool Set 8 pcs., 0.78 in
SKU : 108700
Lathe Tools and Accessories Clamped Turning Tool Set 0.78 in
SKU : 108773
Lathe Tools and Accessories Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
SKU : 108775

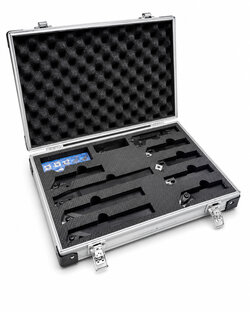

Lathe Tools and Accessories Clamped Turning Tool Set 0.78 in, 9-pc
SKU : 108778
Lathe Tools and Accessories Indexable Insert Set 0.8 in, 30-pc
SKU : 108779
Chucks and Accessories Soft Jaw Pads for 3-jaw chuck 7.9"
SKU : 116551
Chucks and Accessories Soft Jaw Pads for 4-jaw chuck 7.87"
SKU : 116651
Lathe Tools and Accessories Clamped Turning Tool Set 0.98 in
SKU : 108670
Oil, Coolants and Lubricants Coolant Concentrate 5 Ltr.
SKU : 103184
Lathe Tools and Accessories Live center set, MT4
SKU : 106790
Chip Removal Power Worker Metal Cutter
SKU : 123040
Lathe Tools and Accessories Knurl Holder
SKU : 108520
Lathe Tools and Accessories Knurl Set, angles
SKU : 108521
Installation, Assembly Pivoted Mounts LK 3
SKU : 103330
Lathe Tools and Accessories Indexable Insert Set 0.98 in, 30 pcs.
SKU : 108675
Drill Chucks Accessory Set for Drilling MT4, 8-pc
SKU : 104594
Lathe Tools and Accessories Live Center MT 4
SKU : 106755

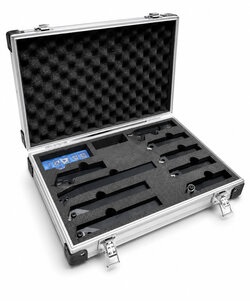

Lathe Tools and Accessories Clamped Turning Tool Set 0.6/0.8/0.9 in, 9-pc
