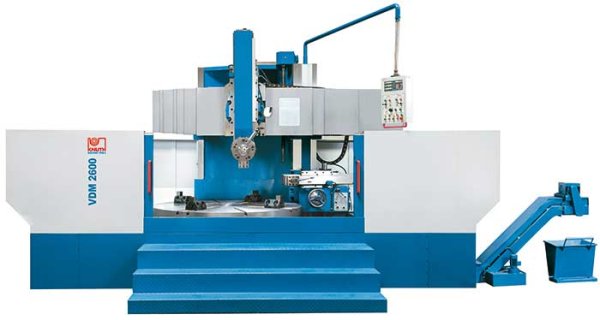

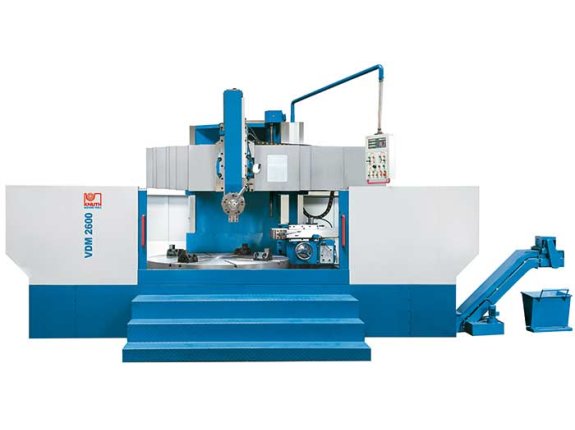

VDM 2600 S - With movable crossbeam, infinitely variable servo feed and additional lateral support for very large turning diameters

Incl. position indicator

The work area is easily accessible through wide opening doors

The work area is easily accessible through wide opening doors

Vertical support includes a 5-station tool holder, side support with independent feed for inside and outside turning

Vertical support includes a 5-station tool holder, side support with independent feed for inside and outside turning

VDM 2600 S - With movable crossbeam, infinitely variable servo feed and additional lateral support for very large turning diameters
The work area is easily accessible through wide opening doors
Vertical support includes a 5-station tool holder, side support with independent feed for inside and outside turning

CONVENTIONAL VERTICAL LATHE

VDM 2600 S

SKU : 301396

The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.

  • Optimum assembly with crane and forklift
  • Infinitely variable feed control via servo motor
  • Long, sturdy vertical boom
  • Side support with boom and independent feed
  • Reduction gear drive for high torque
Working Area
Rotating diameter (max.) 2.600 mm
Turning diameter of upper tool holder 2.600 mm
Turning diameter of side tool holder 2.300 mm
Machining height (max.) 1.500 mm
Swivel range of upper tool holder ± 30°
Workpiece length (max.) 1.500 mm
Workpiece weight (max.) 10.000 kg
Travels
Travel X1 axis, upper support 1.300 mm
Travel Z1 axis , upper support 1.000 mm
Travel W-axis, traverse 1.100 mm
Travel X2 axis , side support 730 mm
Travel Z2 axis , side support 1.180 mm
Headstock
Speed range 14 1/min - 45 1/min
Spindle torque (max.) 32.000 Nm
Rotary table diameter 2.300 mm
Rapid Feed
Rapid feed of upper support 1.800 mm/min
Rapid feed of side support 1.800 mm/min
Feed
Feed speed X-axis 08 mm/min - 86 mm/min
Feed speed Z-axis 08 mm/min - 86 mm/min
Feed speed W-axis 440 mm/min
Tool Head
Tool holder 30 mm x 40 mm
Tool weight max. 50 kg
Drive Capacity
Motor rating main drive 37 kW
Motor rating X-axis 47 kW
Motor rating Z-axis 47 kW
Measures and Weights
Overall dimensions (length x width x height) 7.9 m x 5.3 m x 5.4 m
Weight 27.500 kg

  • Infinitely variable feed control via servo-motor
  • Optimum tooling and easy access for cranes and forklift trucks
  • Heavy-duty column with wide, hardened guideways
  • Hydraulic clamping of cross traverse
  • Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
  • Spindle runs in a high-precision two-row roller bearing and is adjustable
  • Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm
  • Servo motor technology ensures powerful, infinitely variable feed of the vertical boom

3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
Totally enclosed work space
Totally enclosed work space SKU:
Chip conveyor
Chip conveyor SKU:
Tool holder vertical
Tool holder vertical SKU:
Tool holder horizontal
Tool holder horizontal SKU:
Automatic central lubrication
Automatic central lubrication SKU:
Work lamp
Work lamp SKU:
Anchor bolts
Anchor bolts SKU:
Operating tools
Operating tools SKU:
Operator manual
Operator manual SKU:
Coolant System
Coolant System SKU: 251430
Coolant System
