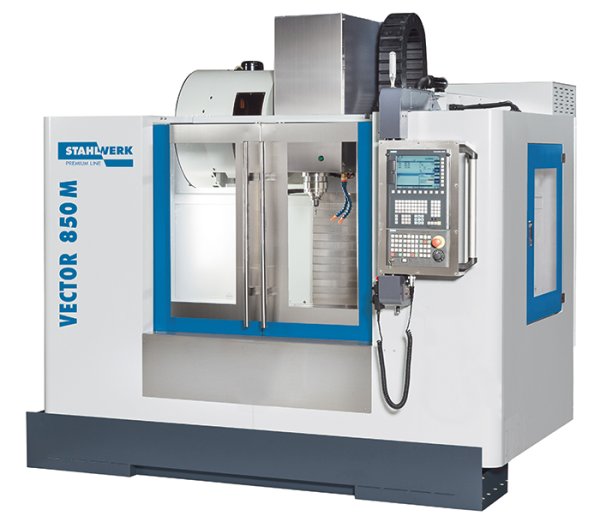

VECTOR 850 M SI

SKU : 181432

The Vector series is the compact all-in-one machining solution, designed and preconfigured for complex manufacturing challenges. The machines are designed using the latest FEM analysis software. The production takes place under strict quality control in order to guarantee perfect execution. Both the tried and tested Meehanite cast and the delta construction of the column ensure additional stability of the machine frame. The consistently high-quality components guarantee smooth operation during multiple shifts.

  • Extra-wide Y-shaped Meehanite column for maximum stability
  • 30-bar CTS to ensure optimum machining quality
  • Designed for multi-shift operation
  • Many customization and automation possibilities
Working Area
Table dimensions 39 in x 22 in
Table load capacity 1760 lbs
Spindle nose-to-table surface distance 6 in - 28 in
Spindle center - column 20 in
Travels
Travel X-axis 33.5 in
Travel Y-axis 22 in
Travel Z-axis 22 in
Guideway Roller
Headstock
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
Torque, constant 42 ft.lb.
Spindle bearing 7012 x 4
Spindle drive method Riemenantrieb
Rapid Feed
Rapid feed X-/ Y-axis 1417 in/min
Rapid feed Z-axis 590.55 in/min
Feed
Work feed X-axis 393.7 in/min
Work feed Y-axis 393.7 in/min
Work feed Z-axis 393.7 in/min
Tool Head
Tool change type Doppelarm
Number of tool stations 24 positions
Tool selection Memory random
Tool size Ø x L (max.) 3.15 in x 11.81 in
Tool weight max. 15 lbs
Tool-change time tool/tool 1.8 sec
Tool-changing time chip/chip 3.9 sec
Accuracies
Repeatabilities ± 0003 / ± 0.00012" in
Positioning accuracies ± 0005/ 0.0002" in
Drive Capacity
Main drive, continuous load 12.07 Hp
Voltage 400 V
Mains frequency 50 Hz
Control
Control Siemens
Measures and Weights
Overall dimensions (length x width x height) 96 in x 87 in x 107 in
Weight 9460 lbs

Highlights

  • Rigid machine structure with extra deep center of gravity and small footprint

Machine Design

  • 30 mm preloaded ball screws combined with a digital drive package provide a rigid table guide and high torque
  • A major focus during development of this machine was a space-saving design
  • Dual-arm tool changer with 24 stations ensures adequate flexibility and capacity for every day production needs
  • The Vector Series features linear guides on X, Y and Z to ensure high accuracy made possible by lower friction
  • 435 psi internal cooling for optimum machining quality

Spindle

  • Spindle runs on multiple bearings to ensure excellent absorption and dissipation of forces during machining

Tool Changer

  • Changing times (1.8 seconds tool-to-tool and 3.9 seconds chip-to-chip) increase spindle up-time and machine output

Control Siemens Sinumerik 828D

  • The top specialist for demanding milling operations
  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • 100 adjustable zero offsets
  • Synchronous actions, and quick output of help functions
  • Siemens Sinumerik 828 D
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in die making applications
  • Siemens Sinumerik 828D CNC highlights, specifications and features
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for high-volume series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated elements: unique operation and programming assistance with animated sequences
  • Advanced data transfer options via USB stick, CF card and network (Ethernet)
  • Easy message: maximum machine availability due to process monitoring per texting (SMS)
  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Jerk-limited acceleration
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle hold
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring

Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Siemens 828D control with Shopmill
Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Coolant flow through spindle, 30 bar with double filter
Coolant flow through spindle, 30 bar with double filter SKU:
24-station tool changer with dual-arm
24-station tool changer with dual-arm SKU:
Main spindle motor 12 HP
Main spindle motor 12 HP SKU:
ST 40 mount
ST 40 mount SKU:
Spindle oil cooler
Spindle oil cooler SKU:
Chain-type conveyor with chip container
Chain-type conveyor with chip container SKU:
Electronic hand-wheel
Electronic hand-wheel SKU:
Oil skimmer
Oil skimmer SKU:
Automatic central lubrication
Automatic central lubrication SKU:
Coolant gun
Coolant gun SKU:
Chip flushing system
Chip flushing system SKU:
Heat exchanger for electric control cabinet
Heat exchanger for electric control cabinet SKU:
Telescoping axis cover
Telescoping axis cover SKU:
USB port
USB port SKU:
Ethernet port (LAN)
Ethernet port (LAN) SKU:
Work lamp
Work lamp SKU:
3-color signal lamp
3-color signal lamp SKU:
CF card reader
CF card reader SKU:
Totally enclosed work space
Totally enclosed work space SKU:
Coolant system
Coolant system SKU:
Adjustable machine feet
Adjustable machine feet SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
Prepared for Renishaw TS 27
Prepared for Renishaw TS 27 SKU:

Siemens 828D control with Shopmill

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Spindle upgrade from ST40 to HSK63 for Vector 650-1000
Spindle upgrade from ST40 to HSK63 for Vector 650-1000 SKU: 253953
Spindle upgrade from ST40 to HSK63 for Vector 650-1000
Top cover for X.Mill/Vector 650-1000 SKU: 252819
Top cover for X.Mill/Vector 650-1000
Renishaw OMP 40 workpiece measuring SKU: 252820
Renishaw OMP 40 workpiece measuring
Arm Type BT40 upg. from 24 to 30 tools SKU: 252967
Arm Type BT40 upg. from 24 to 30 tools
Connection for 4th axis (wiring only and axis chart) SKU: 253019
Connection for 4th axis (wiring only and axis chart)
Siemens Function: P25: 3D Simulation SKU: 253378
Siemens Function: P25: 3D Simulation
Siemens Function: P13: Residual Material Detection SKU: 253379
Siemens Function: P13: Residual Material Detection
Siemens Function: P22: Simulataneous Recording SKU: 253380
Siemens Function: P22: Simulataneous Recording
Renishaw TS27R tool measuring system SKU: 253386
Renishaw TS27R tool measuring system
Siemens measuring cycles SKU: 253438
Siemens measuring cycles
Renishaw OTS wireless tool setter (OTS) SKU: 253598
Renishaw OTS wireless tool setter (OTS)
Ø170mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253605
Ø170mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
Ø210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253606
Ø210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
Prepared for Renishaw OMP40 SKU: 253613
Prepared for Renishaw OMP40
Manual tailstock ST-170T for rotary table SKU: 253618
Manual tailstock ST-170T for rotary table
Manual tailstock ST-210T for rotary table SKU: 253619
Manual tailstock ST-210T for rotary table
Manual chuck, 6'', for rotary table SKU: 253622
Manual chuck, 6'', for rotary table
Manual chuck, 8'', for rotary table SKU: 253623
Manual chuck, 8'', for rotary table
Upgrade from 10.4" to 15" Touchscreen (Si) for Vector SKU: 253674
Upgrade from 10.4" to 15" Touchscreen (Si) for Vector
Renishaw OMP 60 workpiece measuring system (BT40) SKU: 253681
Renishaw OMP 60 workpiece measuring system (BT40)
7.87" diam. 4th & 5th axis for Vector 650/850/1000 (Si) SKU: 253682
7.87" diam. 4th & 5th axis for Vector 650/850/1000 (Si)
Upgrade from 828D PPU260 to 840DSL IPC447E 10.4" for Vector SKU: 253835
Upgrade from 828D PPU260 to 840DSL IPC447E 10.4" for Vector
Spindle upgrade from ST40 to BBT40 for X.Mill/Vector 650-1000 SKU: 253951
Spindle upgrade from ST40 to BBT40 for X.Mill/Vector 650-1000
12,000 rpm, direct drive CTS for Vector 650-1200(Si) SKU: 253956
12,000 rpm, direct drive CTS for Vector 650-1200(Si)
Reinforced machine base with 800 mm Z axis travel SKU: 253625
Reinforced machine base with 800 mm Z axis travel
Spindle speed upgrade to 12000 rpm, belt-type SKU: 253781
Spindle speed upgrade to 12000 rpm, belt-type

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Milling Arbors & Milling Chucks Pull stud DIN 69872A SK40 with hole
SKU : 253962
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box LAN
SKU : 270307
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T.-Box WIFI
SKU : 270308
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box W4G
SKU : 270309
Drill Chucks Keyless Drill Chuck 0.04-0.5 in B 16
SKU : 104765
Drill Chucks Keyless Drill Chuck 0.12-0.63 in B 18
SKU : 104770
Vises HNCS 160V hydraulic machine vise
SKU : 104934
Vises Dial for HNCS 160V
SKU : 104935
Clamping Kits Deluxe Clamping Tool Set 18/M16
SKU : 105305
Clamping Kits Swivel Hold-Down Clamp Set 125/M16
SKU : 105800
Collets & Chucks ER 32 Collet Set 6 pcs.
SKU : 106052
Collets & Chucks ER 40 Collet Set 15 pcs.
SKU : 106075
Collets Angle Collet Fixture (vertical + horizontal)
SKU : 106090
Collets 5-C-Collet Clamp-Ø 0.04 in
SKU : 106103
Collets 5-C-Collet Clamp-Ø 0.08 in
SKU : 106104
Collets 5-C-Collet Clamp-Ø 0.12 in
SKU : 106105
Collets 5-C-Collet Clamp-Ø 0.16 in
SKU : 106110
Collets 5-C-Collet Clamp-Ø 1 in
SKU : 106215
Chip Removal Power Worker Metal Cutter
SKU : 123040
Vises HS 150 Hydraulic machine vise
SKU : 125028
Vises Corrugated Parallel Parts 0.4-0.9 in
SKU : 128960
Vises Corrugated Parallels 1-1.5 in
SKU : 128961
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 0.511"
SKU : 192926
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 0.63"
SKU : 192927
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 0.866"
SKU : 192928
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 1.06"
SKU : 192929
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 1.26"
SKU : 192930
Milling Arbors & Milling Chucks Combo shell-end milling arbor DIN 69871, ST 40 Ø 1.57"
SKU : 192931

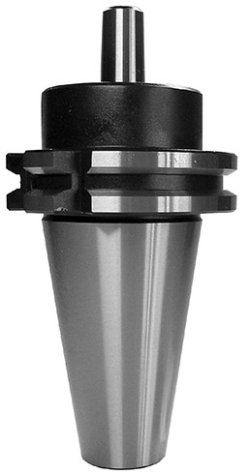

Drill Chucks Drill chuck mount DIN 69871, ST 69871, ST 40, B16
SKU : 193033
Drill Chucks Drill chuck mount DIN 69871, ST 40, B18
SKU : 193034
Milling & Drilling Adapters Adapter sleeves, tangs DIN 69871, ST 40 / MT1
SKU : 193037
Milling & Drilling Adapters Adapter sleeves, tangs DIN 69871, ST 40 / MT2
SKU : 193038
Milling & Drilling Adapters Adapter sleeves, tangs DIN 69871, ST 40 / MT3
SKU : 193039
Milling & Drilling Adapters Adapter sleeves, tangs DIN 69871, ST 40 / MT4
SKU : 193040
Collets & Chucks Collet chucks DIN 69871, ST40, ER 40
SKU : 193064
Milling Arbors & Milling Chucks Weldon chucks with coolant ring DIN 69871, ST 40 , Ø 20
SKU : 193078
Milling Arbors & Milling Chucks Weldon chucks with coolant ring DIN 69871, ST 40 , Ø 25
SKU : 193079
Milling Arbors & Milling Chucks Weldon chucks with coolant ring DIN 69871, ST 40 , Ø 32
SKU : 193080
Milling Arbors & Milling Chucks Weldon chucks with coolant ring DIN 69871, ST 40 , Ø 40
SKU : 193081

Similar Products

VECTOR 650 M SI - Premium milling solution for production and one-off manufacturing with extensive customisation and automation options

VECTOR 650 M SI

Travel X-axis: 25,6 in
Travel Y-axis: 22 in
VECTOR 1000 M SI - Premium milling solution for production and one-off manufacturing with extensive customisation and automation options

VECTOR 1000 M SI

Travel X-axis: 39,4 in
Travel Y-axis: 22 in
VECTOR 650 M SI - Premium milling solution for production and one-off manufacturing with extensive customisation and automation options

VECTOR 650 M SI

Travel X-axis: 25,6 in
Travel Y-axis: 22 in
VECTOR 1000 M SI - Premium milling solution for production and one-off manufacturing with extensive customisation and automation options

VECTOR 1000 M SI

Travel X-axis: 39,4 in
Travel Y-axis: 22 in
consultation

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals

Service by KNUTH

All machines need an occasional pit stop. With our all-encompassing plans for service, training and installation you always will get the best possible performance from your KNUTH machines.

View Services

See KNUTH Machines in action

Get a first-hand impression at one of our facilities! Many machines in our portfolio are always in stock and available for demonstration.

Book a Demo

Request a quote

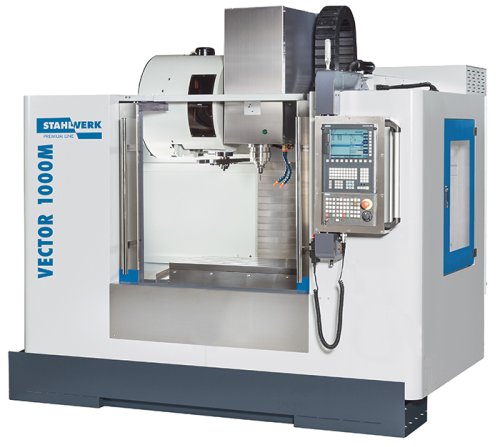

VECTOR 850 M SI - Premium milling solution for production and one-off manufacturing with extensive customisation and automation options
VECTOR 850 M SI
SKU : 181432
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Explore more machines Book a demo for this machine
Something went wrong

Please refresh the page and try submitting the form again.

Request a Consultation

*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

Request a service

*
*
*
*
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our service representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.
