ABS 360 S NC

SKU : 152841

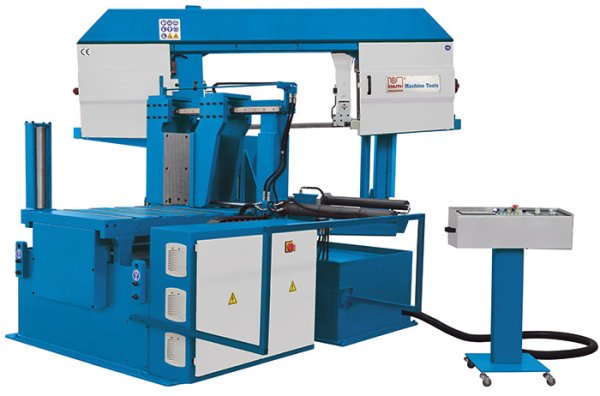

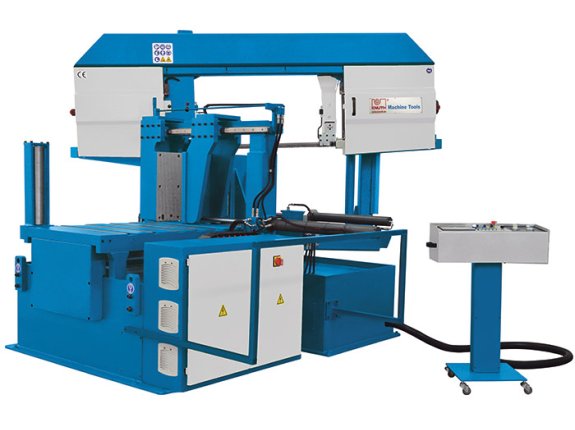

The ABS S NC is a high-performance production band saw with a dual column design. The material is fed via a controlled servo motor with ball screw drive and measuring system with a positioning and repeat accuracy of +/- 0.2 mm. The Omron touchscreen controller can store up to 30 programs with 50 steps each. For additional flexibility, this series also offers hydraulic bundle clamping as an option. The manually set miter angle can be read on a digital display. The workpiece is clamped hydraulically.

Double-column design with precise linear guidance
Miter cutting with hydraulic workpiece clamping and digital display
Omron touchscreen controller for fast programming and setup
Material servo-feeding for high precision +/-0,2 mm
Automated stroke height control with optical sensor

Working area
Minimum cut length	1 mm - 2 mm
Remaining length	190 mm

Cutting Capacities
Feed per single stroke (max.)	700 mm
Cutting speed	20 m/min - 100 m/min
Cutting capacity 0° (round)	360 mm
Cutting capacity 0° (flat) (length x width)	610 mm x 360 mm
Cutting capacity 0° (square)	360 mm
Cutting capacity 30° (round)	360 mm
Cutting capacity 30° (flat) (length x width)	590 mm x 360 mm
Cutting capacity 30° (square)	360 mm
Cutting capacity 45° (round)	360 mm
Cutting capacity 45° (flat) (length x width)	450 mm x 360 mm
Cutting capacity 45° (square)	360 mm
Max. feed length (multiple strokes)	9999 mm

Accuracies
Positioning accuracy (multiple strokes)	0,2 mm

Cutting capacity in semi-automatic mode
Cutting capacity 60° (round)	325 mm
Cutting capacity 60° (flat) (length x width)	280 mm x 360 mm
Cutting capacity 60° (square)	290 mm

Drive capacity
Motor rating main drive	3 kW
Motor rating hydraulic pump	1,1 kW
Motor rating coolant pump	0,12 kW

Measures and weights
Blade dimensions	5200 mm x 34 mm x 1,1 mm
Overall dimensions (length x width x height)	2,85 m x 2,25 m x 1,87 m
Weight	2400 kg

The ABS S NC is a fully automated horizontal band saw series with parallel guiding system, which is ideally suited for series production with miter cuts in solid materials, tubes, and profiles
The workpiece feed with servo motor drive and preloaded ball screws deliver maximum precision
The combination of linear guides and box ways result in low maintenance, long tool life and extreme ruggedness under heavy production conditions
The saw frame, including guide frame, can be rotated manually up to 60° and fixed in the selected position via a hydraulic clamping device
The fully automated mode allows miter cut angles up to 45°, and the semi-automatic mode up to 60°
The exact saw frame angle can easily be checked by the operator on a digital display
A slight 3° inclination of the saw frame on the cutting axis increases cutting capacity and saw blade life

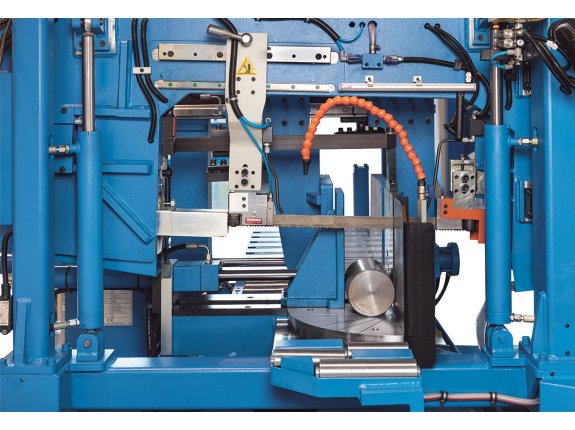

Rigid saw blade guides ensure vertical angular accuracy
The reliable hydraulic unit provides the controlled clamping force for workpiece clamping
Hydraulically controlled saw frame micro-feed
The reliable Omron control with touchscreen allows for easy and convenient programming for a fully automated operation
Unnecessary downtime is reduced by an optically controlled change-over from rapid feed to work feed
A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel
The correct saw blade tension can be verified directly at the pressure gauge display
An automatic band breakage control, a high-performance coolant system, and a chip brush complement the standard equipment package
Available options for this series include Minimal Quantity Lubrication (MQL) and hydraulic bundle clamping

Omron control with touchscreen SKU:

Intuitive operation and efficient control of all parameters

Reliable OMRON control with rugged touchscreen input panel
High-precision workpiece feed via servo motor and preloaded ball screws
Up to 30 cutting jobs, each with 50 cut positions, can be programmed and saved
Number of programs: 30
Working steps in the program: 50

Omron control with touchscreen

Automatic workpiece feed (servo)

Hydraulic part clamping

hydraulic cutting angle clamping

Digital angle display

Optical height adjustment

Saw-band

Mechanical saw blade tensioning with hydraulic pressure gauge

Saw blade cleaner brush

Coolant system

Operating tools

Operator manual

Omron control with touchscreen

Intuitive operation and efficient control of all parameters

Reliable OMRON control with rugged touchscreen input panel
High-precision workpiece feed via servo motor and preloaded ball screws
Up to 30 cutting jobs, each with 50 cut positions, can be programmed and saved
Number of programs: 30
Working steps in the program: 50

3 meter roller table for

3 meter roller table for SKU: 253825

Clamping force controlled at operator panel SKU: 253808

Hydraulic saw blade tensioning SKU: 253822

Chip conveyor SKU: 253820

Hydraulic bundle clamping SKU: 253897

Micro spray cooling system SKU: 253851

Laser pointer SKU: 253753

Micro mist cooler SKU: 254014

Optional Accessories

Explore the range of compatible accessories in stock

Bandsaw Blades Bi-metal band saw blade, 5200x34x1.1 mm, 4/6 teeth

SKU : 119131

Bandsaw Blades Bi-metal band saw blade, 5200x34x1.1 mm, 5/8 teeth

SKU : 119132

Bandsaw Blades Bi-metal band saw blade, 5200x34x1.1 mm, 3/4 teeth

SKU : 119807

Oil, Coolants and Lubricants Coolant Concentrate 5 Ltr.

SKU : 103184
