All switches and controls are clearly arranged on a separate control Panel

ABS 440 H NC

SKU : 152835

The ABS-H NC series is characterized by a swiveling and stable dual column frame. In the fully automatic mode, manual cutting angles of up to 45 degrees can be set, semi-automatically up to 60 degrees are possible. The saw blade speed is infinitely variable. Workpiece clamping and the automatic material feed are controlled hydraulically. The Siemens control unit KP 400 S offers simple programming with a large memory capacity. Components from well-known suppliers and first-class workmanship guarantee high availability.

Double column design with precise linear guide

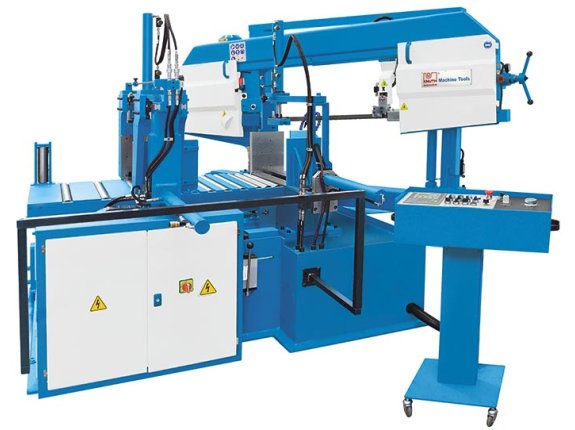

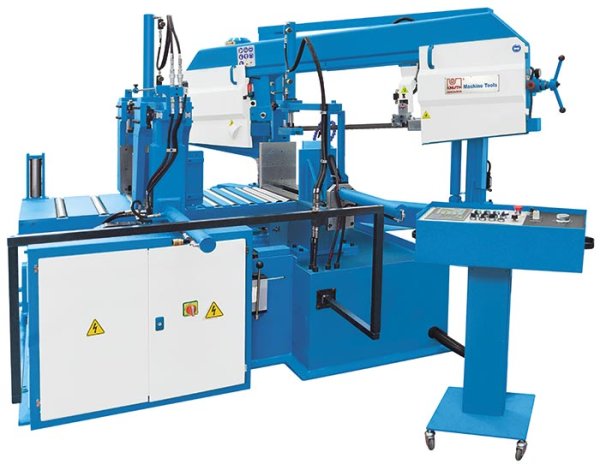

Miter band saw with hydraulic workpiece clamping
Siemens Simatic KP 400
High-precision hydraulic workpiece feed
Automated stroke height control with optical sensor

Working area
Minimum cut length	25 mm
Remaining length	295 mm

Cutting Capacities
Feed per single stroke (max.)	500 mm
Cutting speed	20 m/min - 100 m/min
Cutting capacity 0° (round)	450 mm
Cutting capacity 0° (flat) (length x width)	610 mm x 425 mm
Cutting capacity 0° (square)	425 mm
Cutting capacity 30° (round)	450 mm
Cutting capacity 30° (flat) (length x width)	560 mm x 425 mm
Cutting capacity 30° (square)	425 mm
Cutting capacity 45° (round)	430 mm
Cutting capacity 45° (flat) (length x width)	430 mm x 425 mm
Cutting capacity 45° (square)	425 mm
Max. feed length (multiple strokes)	6000 mm

Accuracies
Positioning accuracy (multiple strokes)	0,3 mm - 0,5 mm

Cutting capacity in semi-automatic mode
Cutting capacity 60° (round)	320 mm
Cutting capacity 60° (flat) (length x width)	260 mm x 425 mm
Cutting capacity 60° (square)	290 mm

Drive capacity
Motor rating main drive	4 kW
Motor rating hydraulic pump	2,2 kW
Motor rating coolant pump	0,12 kW

Measures and weights
Blade dimensions	5400 mm x 41 mm x 1,3 mm
Overall dimensions (length x width x height)	2,85 m x 2,1 m x 1,95 m
Weight	2480 kg

The ABS H NC is a fully automated horizontal band saw series with parallel guiding system, which is ideally suited for series productions with miter cuts in solid materials, tubes, and profiles
The torsionally rigid guideway frame provides excellent stability and vibration-damping characteristics
The combination of linear guides and box ways result in low maintenance, long tool life and extreme ruggedness under heavy production conditions
The fully automated mode allows miter cut angles up to 45°, and the semi-automatic mode up to 60°
A slight 3° inclination of the saw frame on the cutting axis increases cutting capacity and saw blade life
Rigid high-precision carbide saw blade guides ensure high vertical angular accuracy
The reliable hydraulic unit provides the drive power for the automatic workpiece feed, and also the controlled clamping force for workpiece clamping
Hydraulically controlled saw frame micro-feed
All switches and controls are conveniently arranged on a stand-alone control panel
The reliable Siemens Simatic KP 400 PLC allows for easy and convenient programming for a fully automated operation
Unnecessary downtime is reduced by an optically controlled change-over from rapid feed to work feed
A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel
The correct saw blade tension can be verified directly at the pressure gauge display
An automatic band breakage control, a high-performance coolant system, and a chip brush complement the standard equipment package
Available options for this series include Minimal Quantity Lubrication (MQL) and hydraulic bundle clamping

Siemens Simatic KP 400 SPS-control SKU:

Siemens Simatic KP400

Number of programs: 1
Working steps in the program: 10

Siemens Simatic KP 400 SPS-control

Automatic workpiece feed (hydraulic)

Hydraulic part clamping

hydraulic cutting angle clamping

Digital angle display

Optical height adjustment

Saw-band

Mechanical saw blade tensioning with hydraulic pressure gauge

Saw blade cleaner brush

Coolant system

Operating tools

Operator manual

Siemens Simatic KP 400 SPS-control

Siemens Simatic KP400

Number of programs: 1
Working steps in the program: 10

Hydraulic saw blade tensioning

Hydraulic saw blade tensioning SKU: 253823

Clamping force controlled at operator panel SKU: 253808

3 meter roller table SKU: 251873

Chip conveyor SKU: 253821

Hydraulic bundle clamping SKU: 253898

Minimum quantity cooling SKU: 253719

Laser pointer SKU: 253753
