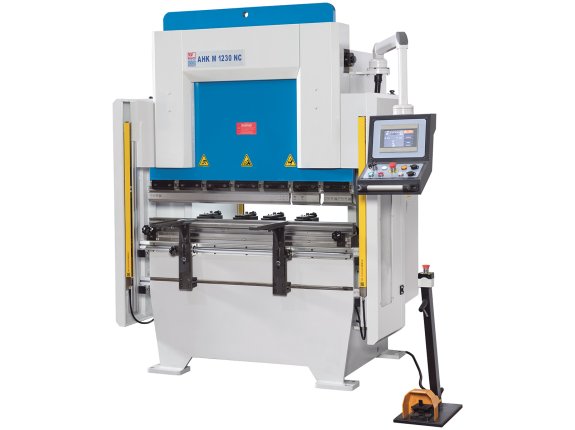

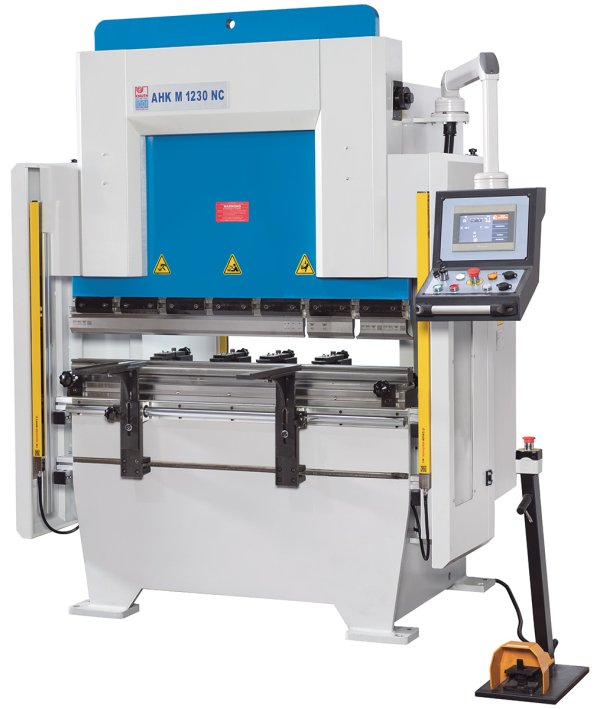

AHK M 1230 NC - Compact NC bending solution with X and R axis and extensive standard equipment as an excellent alternative to CNC machines

Shown with optional equipment

Shown with optional equipment

Shown with optional equipment

Shown with optional equipment

Shown with optional equipment

AHK M 1230 NC - Compact NC bending solution with X and R axis and extensive standard equipment as an excellent alternative to CNC machines
Shown with optional equipment
Shown with optional equipment

AHK M 1230 NC

SKU : 182640

The AHK M series was developed as a modern, inexpensive NC alternative to CNC press brakes. Many operators are familiar working without CNC programming, and this model series combines proven technology with modern safety standards. The back gauge in the X- and R-axes and the depth gauge in the cylinders can be positioned directly using the touchscreen, or bending sequences can be stored in the NC control for automatic operation. The series is convincing in the production of workpieces with recurring materials and contours.

  • Stress-relieved welded steel construction
  • Top beam with torsion shaft
  • NC control with touch-screen HMI
  • Back gauge with X and R axes
  • European-style male die
Working area
Pressure force 30 t
Brake length 1250 mm
Distance between columns 1010 mm
Throat 255 mm
Stroke 150 mm
Clear opening 265 mm
Table width 130 mm
Travels
Travel in X-axis 500 mm
Travel in R-axis 140 mm
Feed
Bending speed 10 mm/s
Rapid feed 120 mm/s
Return speed 70 mm/s
Drive capacity
Motor rating main drive 3 kW
Motor rating X-axis 0,55 kW
Motor rating R-axis 0,25 kW
Measures and weights
Hydraulic tank volume 90 l
Overall dimensions (length x width x height) 1,76 m x 1,38 m x 2,14 m
Weight 1700 kg

Machine Frame and Male Die

  • The machine frame is made of a high-precision, stress-relieved steel weldment and features a rigid bending bar and hydraulic cylinders on both sides
  • A large throat and narrow table ensure plenty of free space to accommodate complex bending sequences

Hydraulics

  • The hydraulic unit with reservoir is placed in the top part of the machine frame to save space and add to the rigidity of the construction
  • Precise upper beam positioning is ensured by a torsion shaft that connects the depth stops of both cylinders

Front Support Arms

  • Each support arm can be adjusted in height and is extremely sturdy
  • A stop ridge on the supporting surface helps with workpiece alignment

Bending Tools

  • Promecam tool mounts to accommodate an extensive selection of bending tools
  • Manual quick-action clamping system for tool mount shortens tool changing times
  • With 4 bending dies the die can handle a wide spectrum of workpieces

Safety and Productivity

  • Safety features are based on the latest CE regulations
  • Light curtains around the work area provide reliable protection

Control

  • All functions are input and retrieved directly at the touchscreen
  • In manual mode, all axes can be positioned via motorized motion and the set values are shown on the display
  • In semi-automatic mode, the values entered by the user are directly selected
  • In auto. mode, the programmed bending sequence is positioned automatically
  • Each storage area holds 500 data sets, and programs can be stored externally and re-imported
  • The axis position is maintained when the display is turned off
  • In addition to a USB port, the machine also features a network port at the control panel

Back Gauge

  • The excellent stability of the NC-controlled back gauge is an important factor for achieving excellent machining precision
  • Linear guides and large preloaded ball screws are low maintenance and extremely sturdy
  • The motorized R-axis simplifies the precise stop-height set-up
  • Lateral positioning of back gauge fingers on dual, smooth-running linear guides

Weintek 7'' NC-control SKU:
Weintek 7'' NC-control
Weintek 7'' NC-control SKU:
Motorized backgauge X-axis
Motorized backgauge X-axis SKU:
Motorized backgauge R-axis
Motorized backgauge R-axis SKU:
European type bottom tool 4V
European type bottom tool 4V SKU:
Upper tool H European style H = 67 mm (segmented)
Upper tool H European style H = 67 mm (segmented) SKU:
Laser optical safety system
Laser optical safety system SKU:
Light curtain
Light curtain SKU:
Sliding front support arms (2 pcs)
Sliding front support arms (2 pcs) SKU:
Foot pedal with emergency stop switch
Foot pedal with emergency stop switch SKU:
Operator instructions
Operator instructions SKU:
extended backgauge for X axis for AHK M NC
  • X axis travel increases to 1.000 mm to facilitate longer bends, and to enable to make more complex operations.
extended backgauge for X axis for AHK M NC SKU: 253658
extended backgauge for X axis for AHK M NC
  • X axis travel increases to 1.000 mm to facilitate longer bends, and to enable to make more complex operations.
additional backgauge finger (pc) for AHK M NC SKU: 253725
additional backgauge finger (pc) for AHK M NC
