Basic 170 Super - Solid precision bench lathe with large center width
Micrometer bed stop ensures repeatability

Micrometer bed stop ensures repeatability

The thread gauge allows for resuming the thread after the apron nut for retrograde motion has been opened

The thread gauge allows for resuming the thread after the apron nut for retrograde motion has been opened

Basic 170 Super - Solid precision bench lathe with large center width
Micrometer bed stop ensures repeatability
The thread gauge allows for resuming the thread after the apron nut for retrograde motion has been opened

Basic 170 Super

SKU : 300815

The Basic 170 Super is a versatile lathe for single part production. Due to the large selection of optional accessories, these models are the best choice for repair, training and workshops of all kinds

  • Compact design for small footprint
  • Extensive standard equipment for a wide range of applications
  • 3-axis position indicator with turning functions
Working area
Center width 1000 mm
Turning diameter over bed 330 mm
Turning-Ø over support 198 mm
Travels
Travel X-axis 170 mm
Travel Z1-axis 95 mm
Swing range of top slide ± 360°
Headstock
Spindle speed 70 1/min - 2000 1/min
Spindle bore 38 mm
Spindle mount Camlock D1-4
Spindle taper 5 MT
Feed
Feed X-axis 0,014 mm/R - 0,38 mm/R
Feed Z-axis 0,052 mm/R - 1,392 mm/R
Threading
Threading, metric (26) 0,4-7 mm
Threading, whitworth (34) 4-56 TPI
Tailstock
Tailstock quill diameter 33 mm
Tailstock taper 3 MT
Tailstock quill stroke 100 mm

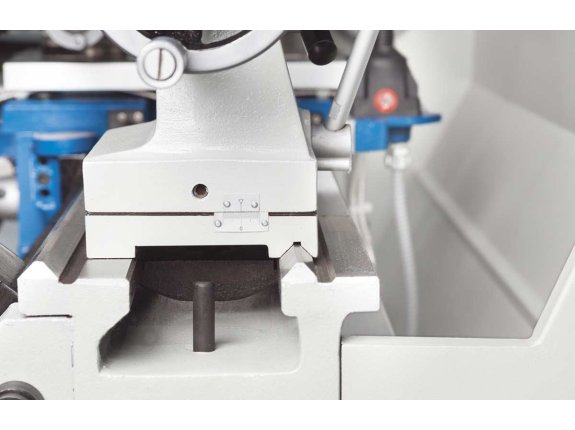

Tailstock traverse adjustment ± 10 mm
Drive capacity
Motor rating main drive 1,5 kW
Measures and weights
Overall dimensions (length x width x height) 1,83 m x 0,68 m x 1,32 m
Weight 520 kg

  • Hardened and ground headstock gears
  • Max. spindle speed 2000 rpm
  • Adjustable headstock bearing

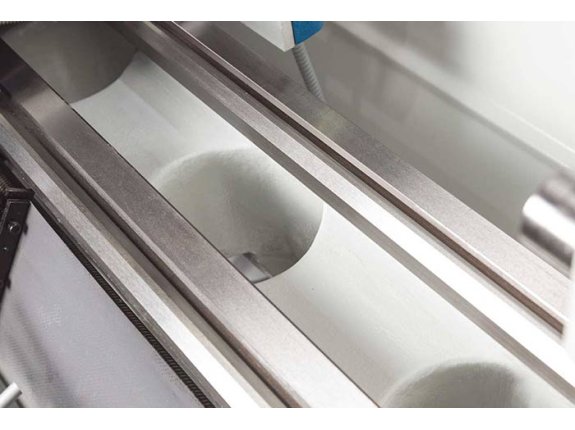

  • Cast-iron bed, double v-guide, hardened and ground
  • Interlock to prevent simultaneous operation of lead screw and feed shaft feed

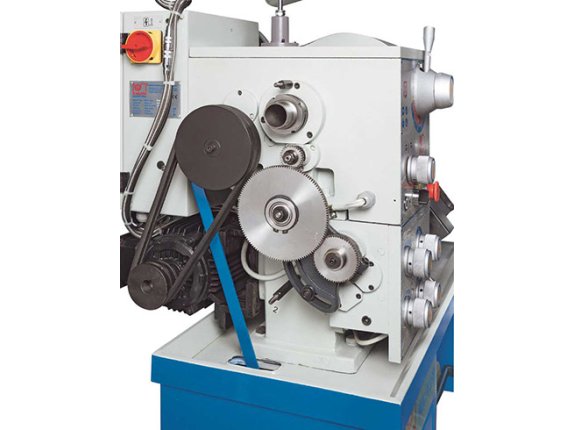

  • Oil-bath lubricated main drive and feed gear
  • Double-walled apron box with oil-bath lubrication
  • All guideways are adjustable

3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
Quick change tool holder head WE
Quick change tool holder head WE SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0,01 mm.

Quick change tool holder WED 20100
Quick change tool holder WED 20100 SKU:
  • Tool holder WED 20100
  • Side 20×100 mm
3-jaw chuck Ø 160 mm
3-jaw chuck Ø 160 mm SKU:
  • self-centering 3 jaw chuck
  • size of Ø 160 mm
  • made of cast iron
  • delivered with one set of hard jaws
4-jaw face plate chuck Ø 200 mm
4-jaw face plate chuck Ø 200 mm SKU:
  • independent4 jaw chuck
  • size of Ø 200 mm
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 280 mm
Face plate Ø 280 mm SKU:

Face plate diam. Ø280 mm

Steady and follow rests
Steady and follow rests SKU:
  • Steady rest - max. workpiece diameter: Ø70 mm
  • Follow rest - max. workpiece diameter: Ø60 mm
Micrometer stop
Micrometer stop SKU:

Increases the precision of operations and reduces downtimes spent for part measuring.

Thread gauge
Thread gauge SKU:
Reducing sleeve
Reducing sleeve SKU:
Dead center
Dead center SKU:
Protective shield for the toolpost
Protective shield for the toolpost SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

Foot brake pedal
Foot brake pedal SKU:

Emergency foot brake pedal

Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Work light
Work light SKU:
Chip tray
Chip tray SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:

3-axis position indicator X.Pos 3.2

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
