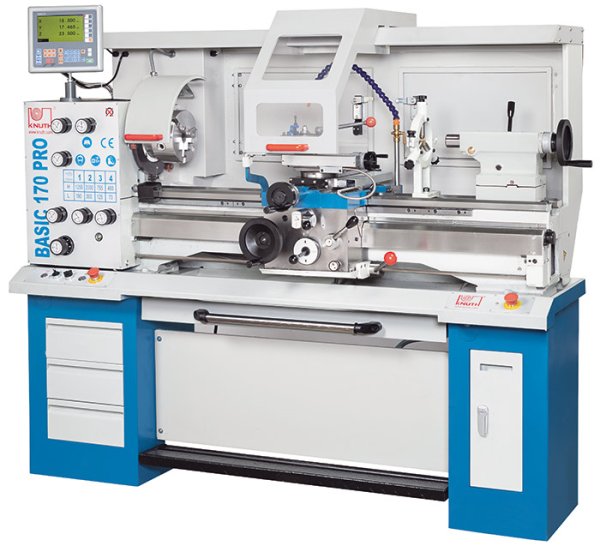

Basic 170 Super Pro - Top model of the mechanic's lathes, perfect for workshop and training with complete equipment and modern ergonomics

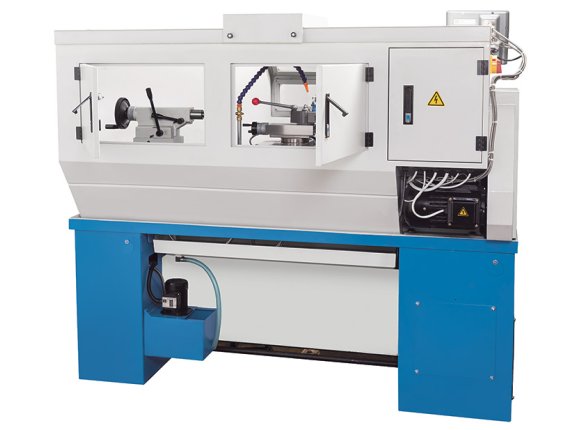

The work area is also accessible through large swinging doors on the back of the machine

The work area is also accessible through large swinging doors on the back of the machine

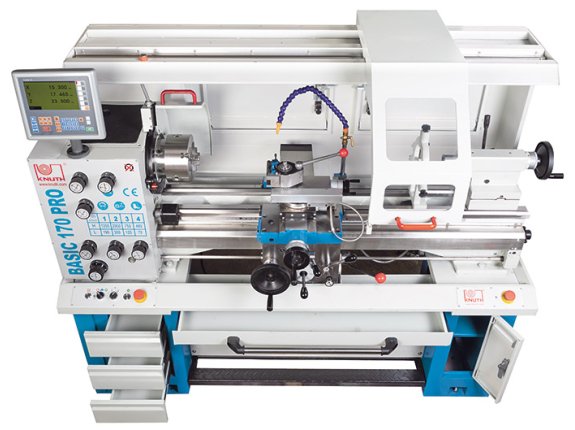

The operator elements are very clearly organized

The operator elements are very clearly organized

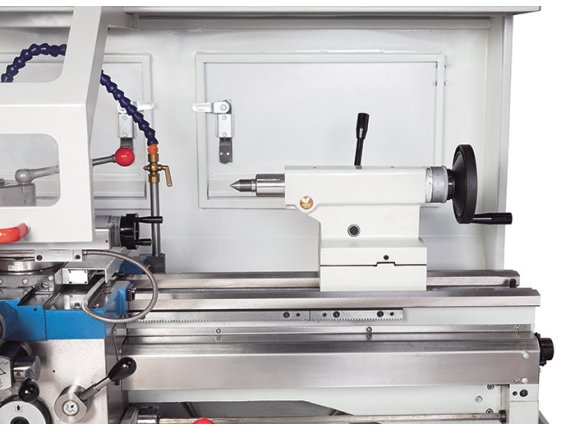

Tailstock can be moved sideways for taper turning

Tailstock can be moved sideways for taper turning

Basic 170 Super Pro - Top model of the mechanic's lathes, perfect for workshop and training with complete equipment and modern ergonomics
The work area is also accessible through large swinging doors on the back of the machine
The operator elements are very clearly organized
Tailstock can be moved sideways for taper turning

Basic 170 Super Pro

SKU : 300814

For many years the Basic series has been the reliable mechanic's lathes that have been used in countless workshops and training centers. The new PRO version offers improved performance and ergonomics, more standard equipment and also the design has been improved, to meet the demands of todays users.

  • Modern ergonomic design
  • Large spindle bore
  • Machine base with storage space
  • Extensive standard equipment
  • Coolant system
Working area
Center width 1000 mm
Center height 179 mm
Turning diameter over bed 354 mm
Turning-Ø over support 223 mm
Bed width 187 mm
Travels
Travel X-axis 185 mm
Travel Z1-axis 95 mm
Headstock
Spindle speed 70 1/min - 2000 1/min
Spindle bore 52 mm
Spindle mount Camlock D1-5
Spindle taper 6 MT
Feed
Feed X-axis 0,0291 mm/R - 2,035 mm/R
Feed Z-axis 0,0406 mm/R - 2,842 mm/R
Threading
Threading, metric 0,2 mm - 14 mm
Threading, whithworth 2 TPI - 56 TPI
Threading, diametric 8 DP - 56 DP
Threading, module 0,2 MP - 3,5 MP
Tailstock
Tailstock quill diameter 42 mm
Tailstock taper 3 MT
Tailstock quill stroke 100 mm
Drive capacity
Motor rating main drive 1,5 kW
Measures and weights
Overall dimensions (length x width x height) 1,9 m x 0,76 m x 1,6 m
Weight 650 kg

  • The fully equipped Basic PRO with its modern ergonomic design meets all requirements for universal applications in the areas of repairs, training and production
  • The lathe bed is made of high-quality cast-iron for maximum stability and rigidity
  • All gears, transmission shafts, and guideways are hardened and ground to guarantee very quiet operation and long tool life
  • Wide guideways are hardened and ground to reduce wear and allow readjustments for long-term accuracy
  • Readjustable spindle bearings ensure high precision and low wear for a long service life
  • Gears and apron run in an enclosed oil bath for low maintenance
  • Safety interlock to prevent simultaneous operation of lead screw and feed shaft feed
  • Stainless steel covers on lead screw and feed shaft ensure safety without the usual restrictions, while also preventing contamination and early wear
  • The tailstock can easily be positioned on the machine bed and moved sideways for taper turning
  • High-performance coolant system is included
  • The machine base features ample storage space for accessories and tools, including a chip tray that can be removed at front
  • The X.Pos position indicator provides easy to program auxiliary functions

3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
Quick change tool holder head WE
Quick change tool holder head WE SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0,01 mm.

Quick change tool holder WED 20100
Quick change tool holder WED 20100 SKU:
  • Tool holder WED 20100
  • Side 20×100 mm
3-jaw-chuck 178 mm
3-jaw-chuck 178 mm SKU:
4-jaw face plate chuck Ø 200 mm
4-jaw face plate chuck Ø 200 mm SKU:
  • independent4 jaw chuck
  • size of Ø 200 mm
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 280 mm
Face plate Ø 280 mm SKU:

Face plate diam. Ø280 mm

Steady and follow rests
Steady and follow rests SKU:
  • Steady rest - max. workpiece diameter: Ø70 mm
  • Follow rest - max. workpiece diameter: Ø60 mm
Coolant system
Coolant system SKU:
Micrometer stop
Micrometer stop SKU:

Increases the precision of operations and reduces downtimes spent for part measuring.

Reducing sleeve
Reducing sleeve SKU:
Dead center
Dead center SKU:
Traveling cover for the toolpost
Traveling cover for the toolpost SKU:
Fixed stainless steel safety cover for tension and lead screw
Fixed stainless steel safety cover for tension and lead screw SKU:
Chuck guard
Chuck guard SKU:
Foot brake pedal
Foot brake pedal SKU:

Emergency foot brake pedal

Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Work light
Work light SKU:
Chip tray
Chip tray SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:

3-axis position indicator X.Pos 3.2

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
