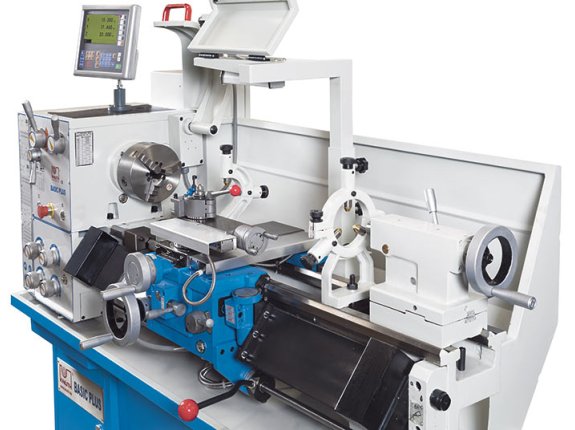

Steady and follow rests are included

Steady and follow rests are included

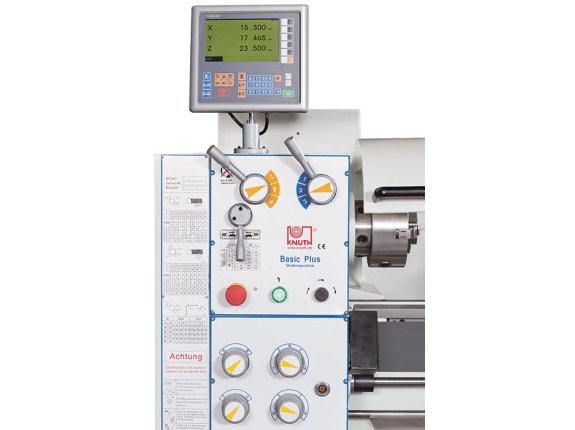

Positioning indicator on X, Z and Z1 axis

Positioning indicator on X, Z and Z1 axis

Basic Plus - Best-selling entry-level lathe with extended list of standard accessories, also ideal for training
Steady and follow rests are included
Positioning indicator on X, Z and Z1 axis

Basic Plus

SKU : 300809

The Basic Plus is a versatile lathe for single part production. Due to the large selection of optional accessories, this model is the best choice for repair, training and workshops of all kinds.

  • Robustness and precision
  • Compact design with small footprint
  • Extensive standard equipment
  • Quick change tool holder
  • Assembled 3-axis position indicator
Working area
Center width 810 mm
Turning diameter over bed 300 mm
Turning-Ø over support 178 mm
Bed width 180 mm
Travels
Travel X-axis 155 mm
Travel Z1-axis 95 mm
Swing range of top slide ± 60°
Headstock
Spindle speed 60 1/min - 1550 1/min
Spindle bore 38 mm
Spindle mount Camlock D1-4
Spindle taper 5 MT
Feed
Feed X-axis 0,014 mm/R - 0,38 mm/R
Feed Z-axis 0,052 mm/R - 1,392 mm/R
Threading
Threading, metric (26) 0,4-7 mm
Threading, whitworth (34) 4-56 TPI
Tailstock
Tailstock quill diameter 32 mm
Tailstock taper 3 MT
Tailstock quill stroke 100 mm
Tailstock traverse adjustment ± 10 mm
Drive capacity
Motor rating main drive 1,1 kW
Measures and weights
Overall dimensions (length x width x height) 1,6 m x 0,75 m x 1,27 m
Weight 520 kg

  • Hardened and ground headstock gears
  • Headstock with Camlock D1-4" mount, bore diam. 38 mm, run in 2 adjustable tapered roller bearings
  • Adjustable headstock bearing
  • Tailstock can be moved ± 10 mm for taper turning
  • Reversing gear reversing gearbox for changing the feed direction
  • Guides are adjustable via tapered gibs
  • Cast-iron bed, double v-guide, hardened and ground

3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

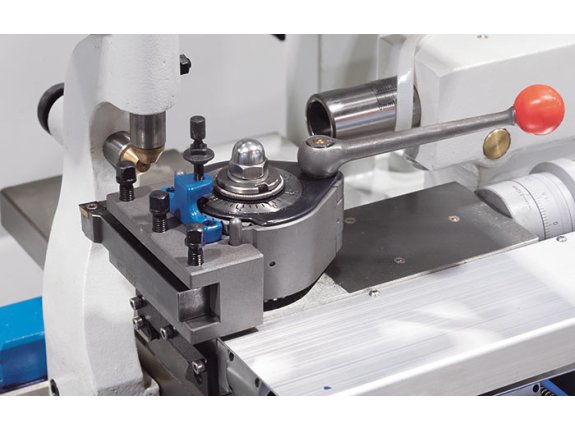

Quick change tool holder head WA
Quick change tool holder head WA SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0,01 mm.

Quick change tool holder WAD 1675
Quick change tool holder WAD 1675 SKU:
  • Tool holder WAD 1675
  • Side 16×75 mm
3-jaw chuck Ø 160 mm
3-jaw chuck Ø 160 mm SKU:
  • self-centering 3 jaw chuck
  • size of Ø 160 mm
  • made of cast iron
  • delivered with one set of hard jaws
4-jaw face plate chuck Ø 200 mm
4-jaw face plate chuck Ø 200 mm SKU:
  • independent4 jaw chuck
  • size of Ø 200 mm
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 250 mm
Face plate Ø 250 mm SKU:

Face plate diam. Ø250 mm

Steady and follow rests
Steady and follow rests SKU:
  • Steady rest - max. workpiece diameter: Ø50 mm
  • Follow rest - max. workpiece diameter: Ø30 mm
Micrometer stop
Micrometer stop SKU:

Increases the precision of operations and reduces downtimes spent for part measuring.

Thread gauge
Thread gauge SKU:
Reducing sleeve
Reducing sleeve SKU:
Dead center
Dead center SKU:
Protective shield for the toolpost
Protective shield for the toolpost SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Work light
Work light SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:

3-axis position indicator X.Pos 3.2

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
