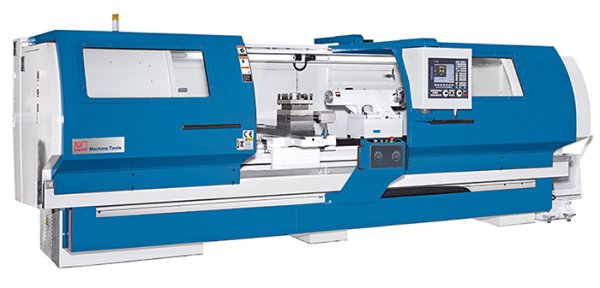

Forceturn 630.30 - Precision flatbed lathe with Fagor control, 4-fold tool changer and electronic handwheels for manual operation
Automatic changing 4-fold steel holder

Automatic changing 4-fold steel holder

Option: steady rests up to 400 mm diameter

Option: steady rests up to 400 mm diameter

Easy handling: for positioning, the tailstock can be coupled to the support

Easy handling: for positioning, the tailstock can be coupled to the support

Compact control unit with electronic hand-wheels

Compact control unit with electronic hand-wheels

Interface for data transmission, swivelling control operating unit

Interface for data transmission, swivelling control operating unit

USB interface

USB interface

Example for cycle mask insertion

Example for cycle mask insertion

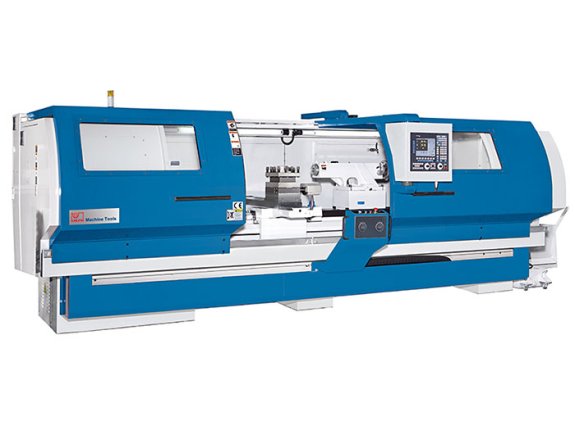

Forceturn 630.30 - Precision flatbed lathe with Fagor control, 4-fold tool changer and electronic handwheels for manual operation
Automatic changing 4-fold steel holder
Option: steady rests up to 400 mm diameter
Easy handling: for positioning, the tailstock can be coupled to the support
Compact control unit with electronic hand-wheels
Interface for data transmission, swivelling control operating unit
USB interface
Example for cycle mask insertion

Forceturn 630.30

SKU : 100351

Our Forceturn series is the optimal solution for customers who want to machine large parts with a powerful CNC lathe. The robust flat bed design ensures high precision when machining heavy workpieces that can be up to 5,000 mm (197 in) long. The control is easy to use and has a teach-in function. Thanks to the two electronic handwheels, the machine can be operated in a similar way to a manual lathe. Options allow adaptation to special requirements. This makes the Forceturn series the best choice for maintenance departments or single part production.

  • Powerful main drive for heavy machining
  • Servo-driven 4-station tool changer
  • 2 electronic hand-wheels for manual operation
  • Cycle programming for series production
Working area
Turning diameter over bed 670 mm
Bed width 450 mm
Center height 335 mm
Turning-Ø over support 400 mm
Workpiece length (max.) 3100 mm
Travels
Travel X-axis 450 mm
Travel Z-axis 3000 mm
Headstock
Speed range 27 1/min - 2250 1/min
Spindle mount D1-8
Spindle bore 85 mm
Rapid feed
Rapid feed X-axis 5000 mm/min
Rapid feed Z-axis 5000 mm/min
Tooling
Number of tool stations 4 positions
Accuracies
Positioning accuracy X-axis 0,015 mm
Positioning accuracy Z-axis 0,02 mm
Repeatability X-axis 0,007 mm
Repeatability Z-axis 0,01 mm
Tailstock
Tailstock taper 5 MT
Tailstock quill diameter 105 mm
Tailstock quill stroke 170 mm
Drive capacity
Motor rating main drive 22 kW
Main drive, continuous load 15 kW
Motor rating X-axis 2 kW
Motor rating Z-axis 3,6 kW
Total power consumption 40 kVA
Measures and weights
Overall dimensions (length x width x height) 5,5 m x 2,25 m x 2,25 m
Weight 5600 kg

Highlights

  • Fagor 8055i FL-TC featuring intuitive, easy to learn cycle programming, including Profile Editor, for batch and single part production of complex workpieces
  • Graphical simulation for added safety
  • 2 electronic hand-wheels at the control panel for manual operation and for easy, quick setup of new workpieces and tools

Machine Design

  • Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated
  • Powerful main drive motor handles part weights up to 1,7 t with ease
  • A high-performance coolant system and automatic central lubrication system are included
  • Spindle bore 85mm (models 630) or 105mm (models 800)

Spindle

  • Infinitely variable, programmable, and adjustable spindle speeds with automatic 3-step main gear

Main gear

  • Motor power 15/22 kW

Tool Changer

  • Heavy, automatic 4-station servo-driven tool changer for programmed tool changes

Fagor 8055i FL-TC control SKU:
  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
Fagor 8055i FL-TC control
Fagor 8055i FL-TC control SKU:
  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
2 electronic hand-wheels
2 electronic hand-wheels SKU:
3-jaw chuck Ø 300 mm
3-jaw chuck Ø 300 mm SKU:
Automatic 3-step gears
Automatic 3-step gears SKU:
4-station servo tool holder
4-station servo tool holder SKU:
Coolant system
Coolant system SKU:
Central lubrication
Central lubrication SKU:
Tailstock
Tailstock SKU:
Work lamp
Work lamp SKU:
Operating tools
Operating tools SKU:
Operating manual and programming instructions
Operating manual and programming instructions SKU:

Fagor 8055i FL-TC control

  • The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
  • A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
  • The graphically displayed cycles can be used individually or they can be linked within a user application
  • The Fagor 8055i FL-TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
  • Profile Editor
  • DIN ISO programming is also possible
  • Fixed cycles with options for graphic geometry definition
  • With multi-threaded thread cycle
  • Thread repair with cycle
  • Graphic simulation with solid body display, including simultaneous for editing
  • Easy to use tool management
  • USB port
  • RS232 port
  • Look Ahead function (75 blocks)
  • Block Processing Time: 1.5 ms
  • Compact Flash with storage expansion up to 2 GB
  • Optional C axis function prepared for lathes
  • Optional up to 1 MB RAM user memory
  • Optional free M-Codes, inputs and outputs
Steady rest (130-370mm)
Steady rest (130-370mm) SKU: 250935
Steady rest (130-370mm)
Steady rest (50-300mm) SKU: 250936
Steady rest (50-300mm)
Steady rest (280-400mm) SKU: 250937
Steady rest (280-400mm)
Chain type chip conveyor SKU: 251188
Chain type chip conveyor
Follow Rest (50 - 250mm) SKU: 251189
Follow Rest (50 - 250mm)
Sauter 8-Fach VDI 40 hydr. Servorevolver SKU: 254035
Sauter 8-Fach VDI 40 hydr. Servorevolver
