FPK 4.3 - Our new generation of machine tools with automated feed and infinitely variable spindle drive
All operator controls are arranged on one side

All operator controls are arranged on one side

Premium electric components ensure safety and high availability

Premium electric components ensure safety and high availability

Universal swivel table for FPK 4.3/ FPK 6.3 (253721)

Universal swivel table for FPK 4.3/ FPK 6.3 (253721)

FPK 4.3 - Our new generation of machine tools with automated feed and infinitely variable spindle drive
All operator controls are arranged on one side
Premium electric components ensure safety and high availability
Universal swivel table for FPK 4.3/ FPK 6.3 (253721)

FPK 4.3

SKU : 302340

This versatile tool-milling machine has become an indispensable part of mechanical production in tool and mold making. The compact design, which offers a lot of flexibility and at the same time is very easy to use, has proven itself many times and has been interpreted in a modern way. Servo drives and ball screws make the machine even more powerful and precise. The entire series is ideally suited for the construction of tools and molds in repair shops as well as training and manufacturing departments.

  • Vertical and horizontal spindle
  • Precise preloaded ball screws on all axes
  • Large vertical console and work table
  • Automatic feed on all axes with rapid feed
  • Infinitely variable main spindle drive
  • Extensive accessory package included
Working area
Table dimensions 400 mm x 800 mm
Vertical table 225 mm x 1020 mm
Table load capacity (max.) 200 kg
Number of T-slots 6 positions
T-slot (width x spacing) 14 mm x 63 mm
T-slots, vertical table (number) 3 positions
T-slots, vertical table (width x spacing) 14 mm x 63 mm
Travels
Travel X-axis 500 mm
Travel Y-axis 400 mm
Travel Z-axis 400 mm
Vertical Milling Spindle
Travel pinole 60 mm
Spindle center - column (min.) 165 mm
Spindle center - column (max.) 570 mm
Vertical milling head
Angular adjustment of vertical head ± 90°
Rapid feed
Rapid feed X-axis 1200 mm/min
Rapid feed Y-axis 1200 mm/min
Rapid feed Z-axis 1200 mm/min
Feed
Work feed X-axis 10 mm/min - 1000 mm/min
Work feed Y-axis 10 mm/min - 1000 mm/min
Work feed Z-axis 10 mm/min - 1000 mm/min
Horizontal Milling Spindle / Vertical Milling Spindle
Speed range 40 1/min - 2000 1/min
Spindle mount SK 40 DIN 2080
Drive capacity
Motor rating main drive 3,2 kW
Motor rating coolant pump 0,09 kW
Measures and weights
Overall dimensions (length x width x height) 1,5 m x 1,7 m x 1,8 m
Weight 1550 kg

  • The Machine column made of premium cast-iron, ensures maximum dynamic rigidity and constant precision
  • Precision preloaded ball screws on all axes
  • Ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort
  • Both machines have rigid outer arbors for horizontal milling
  • Despite the compact design, this machine features a large work table and large travels for versatile use
  • Automatic feed on all axes, infinitely variable and with fast rapid feed
  • The vertical cutter head swivels and the quill can be moved manually
  • The infinitely variable main spindle drive with counter gear offers a wide speed range with high torque
  • Extensive accessory package included
  • Central lubrication system is standard equipment
  • Price incl. fully assembled 3-axis position indicator

Electronic hand-wheels SKU:
Electronic hand-wheels
Electronic hand-wheels SKU:
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
Central lubrication
Central lubrication SKU:
Reducing sleeves MT1, MT2, MT3
Reducing sleeves MT1, MT2, MT3 SKU:
Collet chuck with collets
Collet chuck with collets SKU:
Horizontal milling arbor 16mm
Horizontal milling arbor 16mm SKU:
Horizontal milling arbor 22mm
Horizontal milling arbor 22mm SKU:
Horizontal milling arbor, 27 mm
Horizontal milling arbor, 27 mm SKU:
Horizontal milling arbor 32mm
Horizontal milling arbor 32mm SKU:
Counterholder for horizontal milling
Counterholder for horizontal milling SKU:
Chip tray
Chip tray SKU:
Coolant system
Coolant system SKU:
Work lamp
Work lamp SKU:
pull rod (M16) for horizontal / vertical spindle
pull rod (M16) for horizontal / vertical spindle SKU:
levelling pads and bolts
levelling pads and bolts SKU:
Operating tools
Operating tools SKU:
Operator manual
Operator manual SKU:

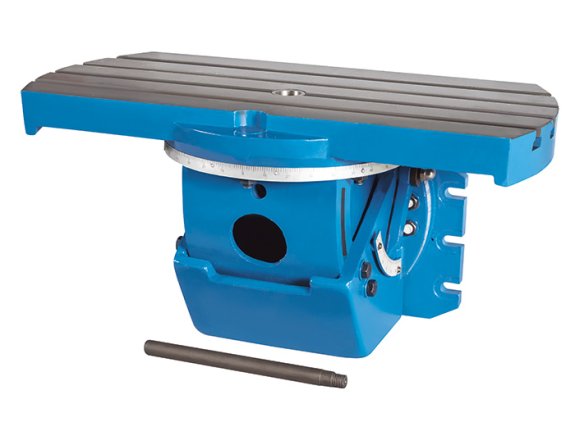

Universal swivel table for FPK 4.3/ FPK 6.3
Universal swivel table for FPK 4.3/ FPK 6.3 SKU: 253721
Universal swivel table for FPK 4.3/ FPK 6.3
