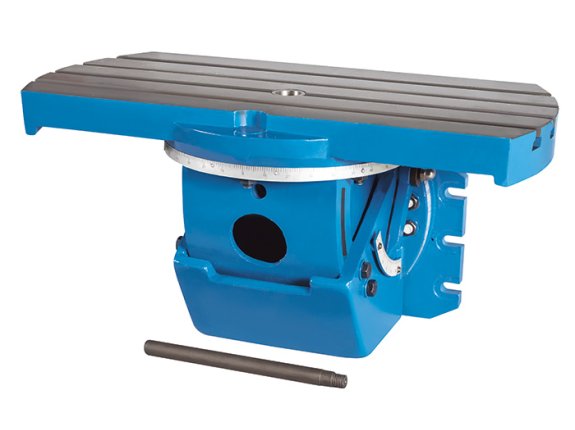

Universal swivel table for FPK 4.3/ FPK 6.3 (253721)

FPK 6.3

SKU : 302341

This versatile tool-milling machine has become an indispensable part of mechanical production in tool and mold making. The compact design, which offers a lot of flexibility and at the same time is very easy to use, has proven itself many times and has been interpreted in a modern way. Servo drives and ball screws make the machine even more powerful and precise. The entire series is ideally suited for the construction of tools and molds in repair shops as well as training and manufacturing departments.

Vertical and horizontal spindle
Precise preloaded ball screws on all axes
Large vertical console and work table
Automatic feed on all axes with rapid feed
Infinitely variable main spindle drive
Extensive accessory package included

Working area
Table dimensions	450 mm x 850 mm
Vertical table	250 mm x 1190 mm
Table load capacity (max.)	300 kg
Number of T-slots	7 positions
T-slot (width x spacing)	14 mm x 63 mm
T-slots, vertical table (number)	3 positions
T-slots, vertical table (width x spacing)	14 mm x 63 mm

Travels
Travel X-axis	600 mm
Travel Y-axis	450 mm
Travel Z-axis	450 mm

Vertical Milling Spindle
Travel pinole	100 mm
Spindle center - column (min.)	165 mm
Spindle center - column (max.)	620 mm

Vertical milling head
Angular adjustment of vertical head	± 90°

Rapid feed
Rapid feed X-axis	1200 mm/min
Rapid feed Y-axis	1200 mm/min
Rapid feed Z-axis	1200 mm/min

Feed
Work feed X-axis	10 mm/min - 1000 mm/min
Work feed Y-axis	10 mm/min - 1000 mm/min
Work feed Z-axis	10 mm/min - 1000 mm/min

Horizontal Milling Spindle / Vertical Milling Spindle
Speed range	40 1/min - 2000 1/min
Spindle mount	SK 40 DIN 2080

Drive capacity
Motor rating main drive	5,5 kW
Motor rating coolant pump	0,09 kW

Measures and weights
Overall dimensions (length x width x height)	1,6 m x 1,8 m x 2 m
Weight	1750 kg

The Machine column made of premium cast-iron, ensures maximum dynamic rigidity and constant precision
Precision preloaded ball screws on all axes
Ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort
Both machines have rigid outer arbors for horizontal milling
Despite the compact design, this machine features a large work table and large travels for versatile use
Automatic feed on all axes, infinitely variable and with fast rapid feed
The vertical cutter head swivels and the quill can be moved manually
The infinitely variable main spindle drive with counter gear offers a wide speed range with high torque
Extensive accessory package included
Central lubrication system is standard equipment
Price incl. fully assembled 3-axis position indicator

Electronic hand-wheels SKU:

Electronic hand-wheels

3-axis position indicator X.Pos 3.2

Central lubrication

Reducing sleeves MT1, MT2, MT3

Collet chuck with collets

Horizontal milling arbor 16mm

Horizontal milling arbor 22mm

Horizontal milling arbor, 27 mm

Horizontal milling arbor 32mm

Counterholder for horizontal milling

Chip tray

Coolant system

Work lamp

pull rod (M16) for horizontal / vertical spindle

levelling pads and bolts

Operating tools

Operator manual

Universal swivel table for FPK 4.3/ FPK 6.3

Universal swivel table for FPK 4.3/ FPK 6.3 SKU: 253721
