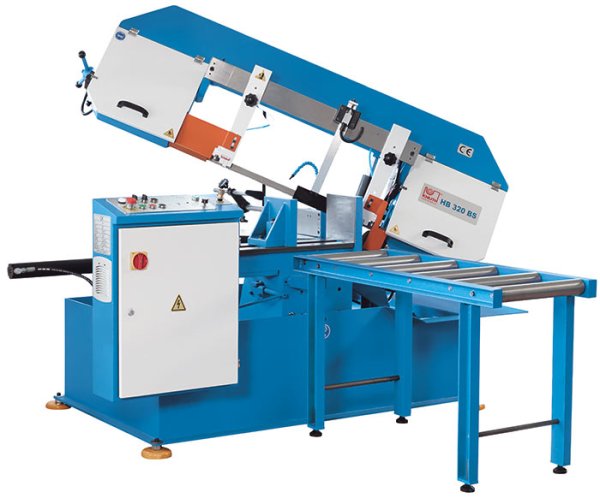

HB 320 BS - Miter bandsaw with swivel frame and hydraulic machine vise
HB 320 BS - Miter bandsaw with swivel frame and hydraulic machine vise

HB 320 BS

SKU : 152798

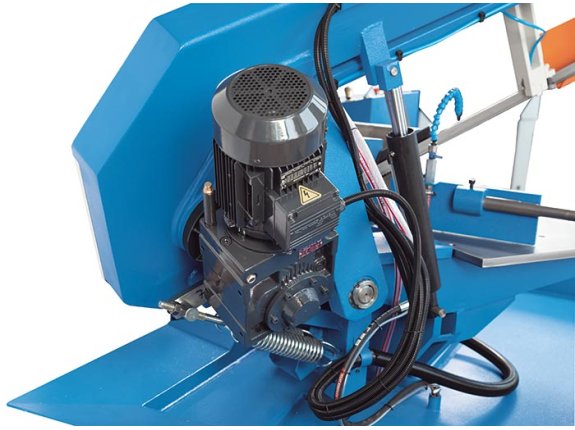

The band saw of the HB BS series is designed for precise miter cuts of up to 60 degrees and is ideal for workshops and production. With this model, it is not the vise with the material that is swiveled, but the saw frame. You can regulate the saw frame feed continuously via a hydraulic valve and also adjust it during processing. Pivoting, tensioning and clamping are carried out manually. The motor transmits its power low-maintenance and vibration-free via V-belt. The standard accessories of the machine also include a coolant device and a short roller conveyor for the material feed.

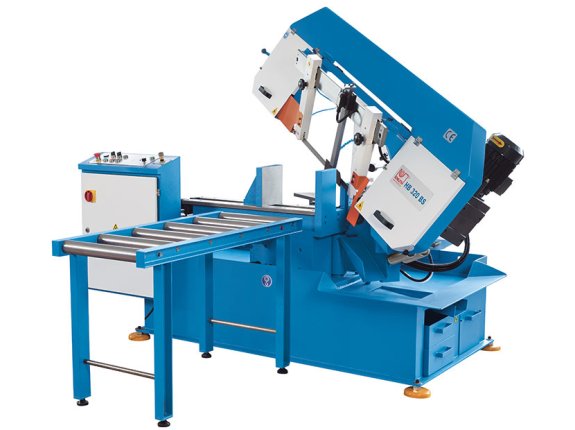

  • Saw frame can swivel 60° for miter cutting
  • Semi-automated operation
  • Automated stroke height control with optical sensor
  • Low machine and workpiece setup times
Cutting Capacities
Cutting capacity 0° (round) 320 mm
Cutting capacity 0° (square) 320 mm
Cutting capacity 0° (flat) (length x width) 610 mm x 320 mm
Cutting capacity 45° (round) 320 mm
Cutting capacity 45° (square) 320 mm
Cutting capacity 45° (flat) (length x width) 355 mm x 320 mm
Cutting capacity 60° (round) 260 mm
Cutting capacity 60° (square) 225 mm
Cutting capacity 60° (flat) (length x width) 280 mm x 200 mm
Cutting speed infinitely variable 20 m/min - 100 m/min
Drive capacity
Motor rating main drive 2,2 kW
Motor rating coolant pump 0,12 kW
Measures and weights
Blade dimensions 4160 mm x 34 mm x 1,1 mm
Overall dimensions (length x width x height) 2,1 m x 1,2 m x 1,34 m
Weight 1000 kg

  • Infinitely variable hydraulic saw advance ensures optimum cutting results and minimized tool wear
  • Automatic shut-off upon completion of saw process
  • Band break sensor activates automatic shut-off upon band break
  • Helical gears, designed for continuous operation with above average life time and low maintenance
  • Infinitely variable cutting speed from 20 to 100 m/min
  • Coolant system
  • Rigid guide arms

HB 320 BS highlights

  • Saw frame swivels allowing universal angle setting - no need to rotate the workpiece!
  • Including feed roller stand, 1.2 m long
  • Automatic lifting of the bandsaw with switching device for variable workpiece sizes
  • Hydraulic workpiece clamping

Hydraulic part clamping SKU:
Hydraulic part clamping
Hydraulic part clamping SKU:
Coolant system
Coolant system SKU:
Linear stop
Linear stop SKU:
Feed roller table 1,2 m
Feed roller table 1,2 m SKU:
Operator manual
Operator manual SKU:
3 meter roller table for HB 320 BS
3 meter roller table for HB 320 BS SKU: 251893
3 meter roller table for HB 320 BS
hydraulic top clamping for HB 320 BS SKU: 251891
hydraulic top clamping for HB 320 BS
Motorized 3 meter roller table SKU: 251894
Motorized 3 meter roller table
Hydraulic blade tentioning SKU: 251895
Hydraulic blade tentioning
3m Roller table w. length stopper & digital readout SKU: 257413
3m Roller table w. length stopper & digital readout
6m Roller table w. length stopper & digital readout SKU: 257414
6m Roller table w. length stopper & digital readout
Micro spray cooling system SKU: 253851
Micro spray cooling system
Laser pointer SKU: 253753
Laser pointer
Clamping force controlled at operator panel SKU: 253899
Clamping force controlled at operator panel
Micro mist cooler SKU: 254014
Micro mist cooler
