KB 20 SV - Tabledesign with infinitely variable speed adjustment and touchscreen for parameters setup
KB 20 SV - Tabledesign with infinitely variable speed adjustment and touchscreen for parameters setup

KB 20 SV

SKU : 170462

The KB SFV Series Drill Presses are the newest versions of the robust, streamlined bench drill presses and perfectly suited for light drilling jobs. These high-quality machines feature an infinitely variable, virtually maintenance-free drive and a touchscreen control panel for quick access to all functions. This series is especially suited for single part productions and manual series batch production in workshops and industrial operations.

  • Compact table design
  • Touchscreen for selection of functions
  • Integrated LED work light
  • Thread cutting unit
  • Infinitely variable main spindle speed
Working area
Drilling capacity 20 mm
Tapping capacity (max.) M 16
Table set up area 255 mm x 255 mm
Spindle nose-to-table surface distance 366 mm
Spindle nose-to-foot distance 678 mm
Throat 240 mm
Column diameter 85 mm
Quill stroke 135 mm
Headstock
Speed range 205 1/min - 2045 1/min
Spindle mount 2 MT
Drive capacity
Motor rating main drive 1,1 kW
Measures and weights
Overall dimensions (length x width x height) 1 m x 0,56 m x 1,4 m
Weight 179 kg

  • Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
  • Heavy, precision-ground work table with diagonal T-slots
  • Very smooth height adjustment of drill table, even under high loads
  • Large base plate with ground setup area and parallel T-slots
  • Forward and reverse, plus automatic reversal of direction for thread cutting
  • Spindle shank and spindle are hardened and ground
  • Robust belt drive and quiet, powerful motor
  • Integrated LED work lamp is standard

V models:

  • Infinitely variable speed adjustment via potentiometer

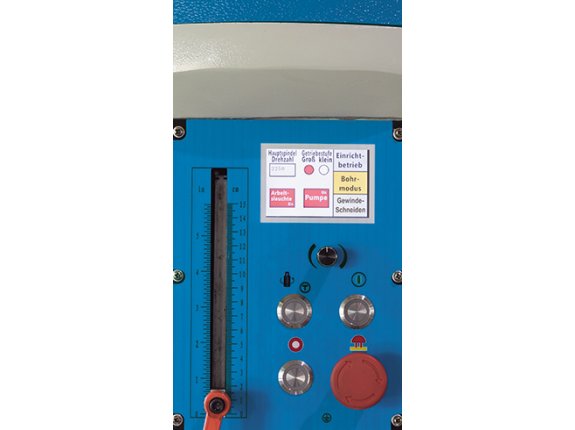

  • Touchscreen with comfortable selection of functions, like drilling, thread-cutting, and setup operations
  • The control unit allows querying of all limit switches and shows all functionalities, like coolant system, rpm and work lamp

Drill chuck SKU:
Drill chuck
Drill chuck SKU:
Tool-holder bits
Tool-holder bits SKU:
Drill press vise
Drill press vise SKU:
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Operating tools
Operating tools SKU:
LED work lamp
LED work lamp SKU:
Operator manual
Operator manual SKU:
