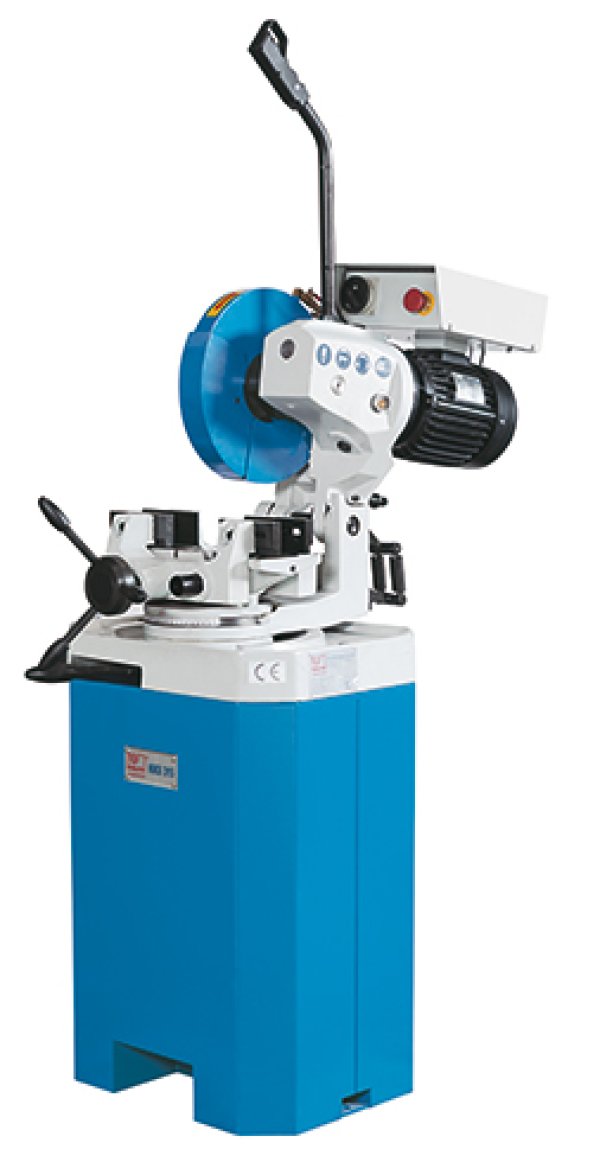

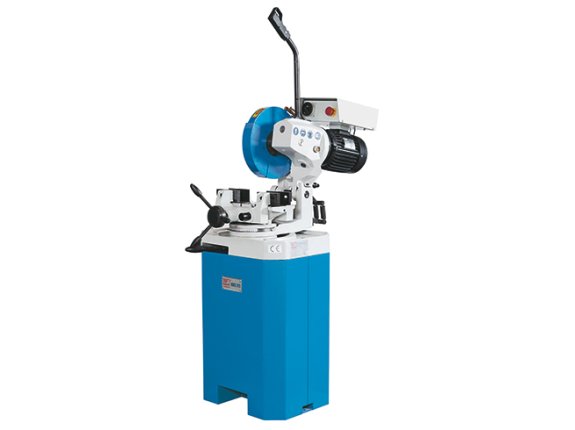

KKS 315 T - Robust manual cold circular saw for workshop use with precise mitre adjustment and space-saving base frame

KKS 315 T

KKS 315 T

KKS 315 T

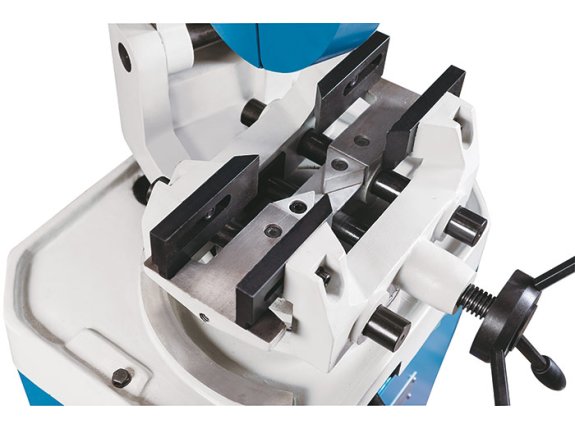

Dual vise (KKS 315 / 350 T)

Dual vise (KKS 315 / 350 T)

KKS 315 T - Robust manual cold circular saw for workshop use with precise mitre adjustment and space-saving base frame
KKS 315 T
Dual vise (KKS 315 / 350 T)

KKS 315 T

SKU : 102120

Manual circular cold saws KKS T come equipped with everything you need for machining smaller tubes and profiles. You can cut precise miters with all models. Vises on the model KKS T315/350 are self-centering for optimal cutting. Models with 250/275 mm saw blades are equipped with a quick-action clamping vise.

  • High-precision angle cuts
  • Rigid vise
  • Rigid machine base included
  • Built-in coolant system
Working area
Max. saw blade diameter 315 mm
Shaft diameter 40 mm
Speed 18/36 1/min
Width of vise 145 mm
Working height 960 mm
Cutting Capacities
Cutting capacity 0° (round) 100 mm
Cutting capacity 0° (square) 100 mm
Cutting capacity 0° (flat) (length x width) 140 mm x 90 mm
Cutting capacity 45° (round) L 90 mm
Cutting capacity 45° (square) L 90 mm
Cutting capacity 45° (round) R 90 mm
Cutting capacity 45° (flat) L (length x width) 100 mm x 90 mm
Cutting capacity 45° (square) R 90 mm
Cutting capacity 45° (flat) R (length x width) 100 mm x 90 mm
Drive capacity
Main motor rating 0,75 / 1,3 kW
Measures and weights
Overall dimensions (length x width x height) 0,92 m x 0,56 m x 1,78 m
Weight 227 kg

  • Easy operation, rugged design, and precise angular cuts make this circular cold saw a “must-have” basic for any workshop
  • The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
  • The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
  • The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions
  • KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
  • The miter can be adjusted up to +/- 45 degrees by rotating the gear head
  • The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
  • All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
  • A large idler gear runs in an oil bath for low maintenance and minimal wear
  • The rugged machine base allows a space-saving machine setup
  • An integrated coolant system is part of the standard equipment on all models

Self centering double vice SKU:
Self centering double vice
Self centering double vice SKU:
Base
Base SKU:

Machine base with storage space

Coolant system
Coolant system SKU:
1 saw blade
1 saw blade SKU:
Linear stop
Linear stop SKU:
