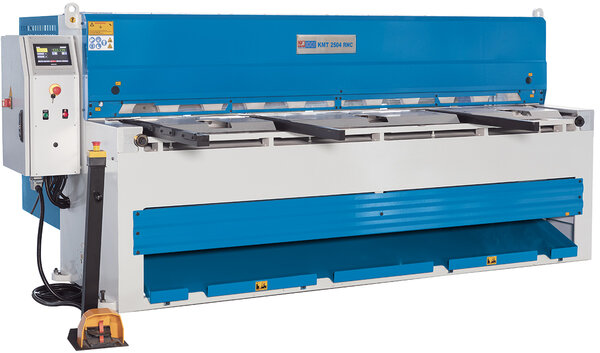

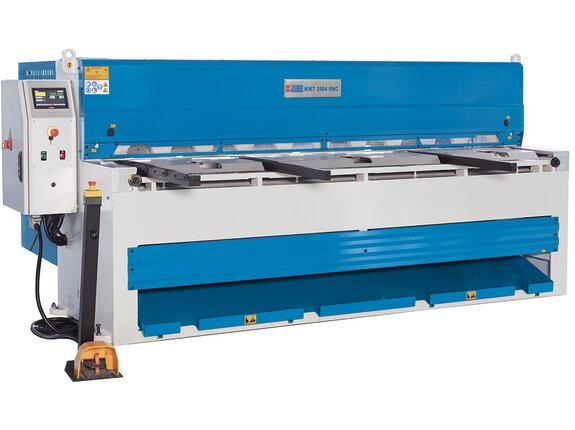

This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated Return-to-Sender function.
Working area | |
---|---|
Working length | 3060 mm |
Cutting angle | 1,3 deg |
Work table height | 880 mm |
Work table depth | 455 mm |
Number of support arms | 3 positions |
Support arms | 1000 mm |
Strokes per minute | 31 H/min |
Back Gauge | |
---|---|
Rear stop | 750 mm |
Cutting Capacities | |
---|---|
Plate thickness (min.) - 450 N/mm² | 0,2 mm |
Plate thickness (max.) - 450 N/mm² | 4 mm |
Plate thickness(max.) - 700 N/mm² | 2 mm |
Drive capacity | |
---|---|
Motor rating main drive | 11 kW |
Measures and weights | |
---|---|
Overall dimensions (length x width x height) | 3,7 m x 2,35 m x 1,4 m |
Weight | 4000 kg |
Machine Frame
Ergonomic Design
Rear stop:
Equipment
