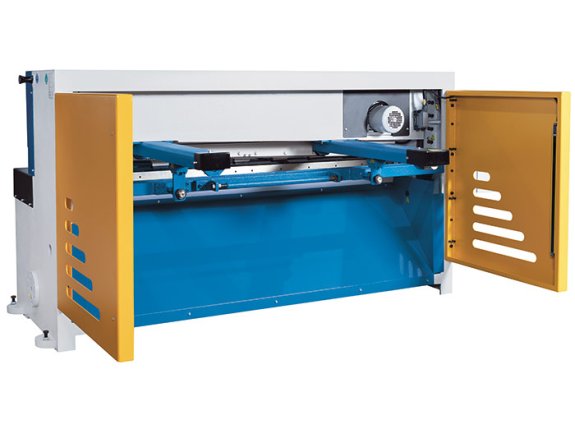

KMT S 2054 NC - Dependable cutting solution for batch cutting with NC-controlled back gauge

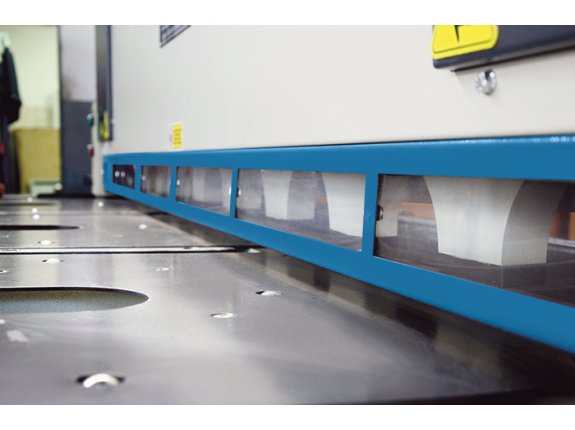

Material support rollers are recessed in the table for easy workpiece handling

Material support rollers are recessed in the table for easy workpiece handling

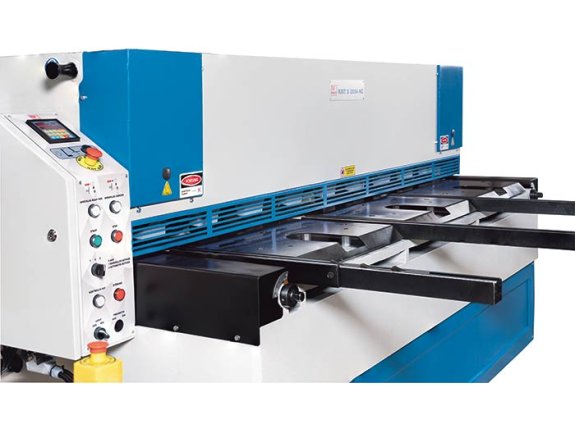

KMT S 2054 NC - Dependable cutting solution for batch cutting with NC-controlled back gauge
Material support rollers are recessed in the table for easy workpiece handling

KMT S 2054 NC

SKU : 132210

This model from the KMT S NC series is a modern, high-quality guillotine shear with high-quality components. The powerful motorised drive offers a high cutting capacity of up to four sheet thicknesses. The very sturdy design with a slotted blade bar and a small cutting angle of 1.3 degrees also enables cuts with minimal distortion in the workpiece. The cutting gap can be adjusted manually, while the cutting length is positioned via the NC control. Simple operation and quick adjustment reduce non-productive times in production.

  • Solid steel weldment
  • NC-controlled back gauge can be easily programmed
  • Automatic, semi-automatic and manual mode
  • Blades with multiple cutting surfaces
  • Manual kerf adjustment
Working area
Working length 2050 mm
Cutting angle 1,3 deg
Work table height 810 mm
Work table depth 455 mm
Number of support arms 3 positions
Support arms 940 mm
Strokes per minute 29 H/min
Back Gauge
Rear stop 750 mm
Cutting Capacities
Plate thickness (max.) - 450 N/mm² 0,1 mm - 4 mm
Plate thickness(max.) - 700 N/mm² 2 mm
Drive capacity
Motor rating main drive 7,5 kW
Measures and weights
Overall dimensions (length x width x height) 2,7 m x 2,15 m x 1,45 m
Weight 3000 kg

Machine Frame and Drive System

  • The machine frame is made of a very rigid, solid steel weldment
  • The upper knives are reversible for use of both sides, and the lower knives feature 4 cutting edges
  • A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line
  • The optimum kerf for machining can be adjusted manually

Material Support

  • The rigid side angle stop simplifies alignment of the plate to the cut line
  • Rugged support arms ensure a strong hold of large plates
  • Material support rollers are recessed in the table for easy workpiece handling

Ergonomic Design

  • The mobile foot switch gives the operator added flexibility and both hands are free for handling the workpiece
  • For a better view of the cut line, the hand safety guard can be flipped up or down
  • The bright LED illumination of the cut line creates a clearly visible shadow on the marked line

Rear stop:

  • The motorized back gauge ensures precise positioning in automatic, semi-automatic and manual modes
  • The NC-controlled back gauge can be easily and quickly programmed
  • The easy accessible work area at the back gauge is secured by light curtain
  • The machine can be equipped with an optional NC-controlled back gauge for a length up to 1000 mm, or a sheet hold-up device

BRL NC controller SKU:
BRL NC controller
BRL NC controller SKU:
Motorized rear stop (750 mm)
Motorized rear stop (750 mm) SKU:

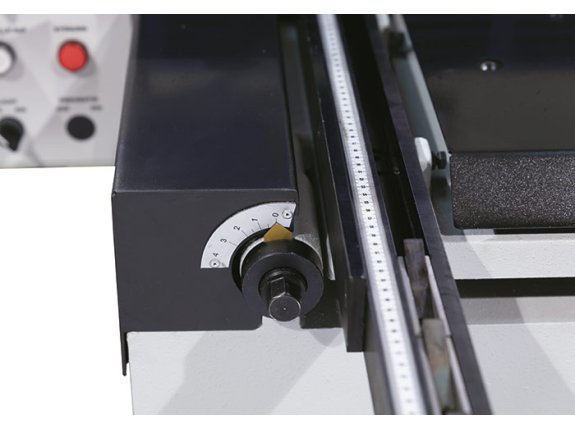

Manual blade gap adjustment
Manual blade gap adjustment SKU:
Foot pedal with emergency stop switch
Foot pedal with emergency stop switch SKU:
Cut-line lighting
Cut-line lighting SKU:
Light curtain
Light curtain SKU:
Squaring arm
Squaring arm SKU:
  • Squaring arm with scale & T-Slot & Tilting stop
  • Length: 1.000 mm
Support arms with T-slots and tilting stop
Support arms with T-slots and tilting stop SKU:
Ball bearing front table
Ball bearing front table SKU:
Top blade with 2 sides
Top blade with 2 sides SKU:
Finger guard
Finger guard SKU:
Operator instructions
Operator instructions SKU:

Properties

  • Encoder signal between 5 VDC and 30 VDC
  • Toggle between inch/metric
  • Measuring range 0 - 10 m
  • 0,1 mm sensitivity (adjustable)
  • Automatic, semi-automatic operation and manual mode can be selected
  • Up to 10 positions can be saved
  • Optional expansion for up to 100 programs with 10 adjustable values each
  • Machining in single mode is possible as well
  • Stroke can be limited on both sides
  • Dual positioning speed
  • Warnings and error message display
  • Programmable push buttons
  • Retraction is possible during the cutting process
  • Saves the set position values and counts upon shut-down
Motorized back gauge 1000 mm (BRL 401.2 NC)
Motorized back gauge 1000 mm (BRL 401.2 NC) SKU: 256816
Motorized back gauge 1000 mm (BRL 401.2 NC)
Adjustable angle stop on the support arm (the left one) 0-180° SKU: 253666
Adjustable angle stop on the support arm (the left one) 0-180°
Pneumatic sheet back support SKU: 253667
Pneumatic sheet back support
