KMT S 2552 - Cost-efficient cutting solution with up to 3000mm cutting length with manual backgauge
KMT S 2552 - Cost-efficient cutting solution with up to 3000mm cutting length with manual backgauge

KMT S 2552

SKU : 133613

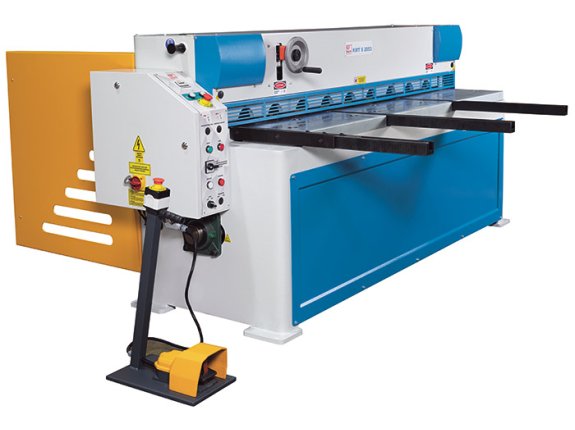

The KMT S series has stable construction and is of high quality. The modern guillotine shears have a powerful, motorised drive that enables high cutting performance. The construction with guided cutting blades and a small cutting angle enables cuts with little twist in the workpiece. The backgauge can be precisely positioned using the handwheel accessible from the front.

  • Solid steel weldment
  • Blades with multiple cutting surfaces
  • Back gauge can be positioned from the front of the machine
  • Work area is secured by light curtain
Working area
Working length 2550 mm
Cutting angle 1,3 deg
Work table height 840 mm
Work table depth 390 mm
Number of support arms 3 positions
Support arms 940 mm
Strokes per minute 34 H/min
Back Gauge
Rear stop 750 mm
Cutting Capacities
Plate thickness (max.) - 450 N/mm² 0,1 mm - 2,5 mm
Plate thickness(max.) - 700 N/mm² 1,25 mm
Drive capacity
Motor rating main drive 4 kW
Measures and weights
Overall dimensions (length x width x height) 3,2 m x 2,15 m x 1,31 m
Weight 1950 kg

Machine Frame and Drive System

  • The machine frame is made of a very rigid, solid steel weldment
  • The upper knives are reversible for use of both sides, and the lower knives feature 4 cutting edges
  • A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line

Material Support

  • The rigid side angle stop simplifies alignment of the plate to the cut line
  • Rugged support arms ensure a strong hold of large plates

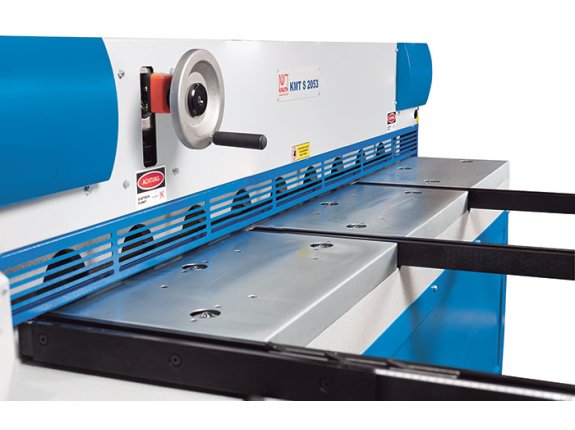

  • Material support rollers are recessed in the table for easy workpiece handling

Ergonomic Design

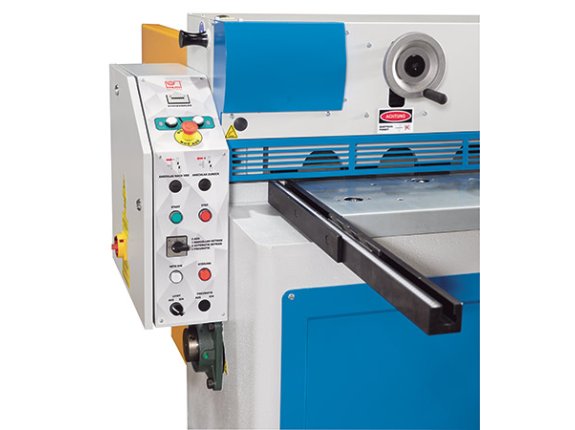

  • The mobile foot switch gives the operator added flexibility and both hands are free for handling the workpiece
  • For a better view of the cut line, the hand safety guard can be flipped up or down
  • The bright LED illumination of the cut line creates a clearly visible shadow on the marked line

Rear stop:

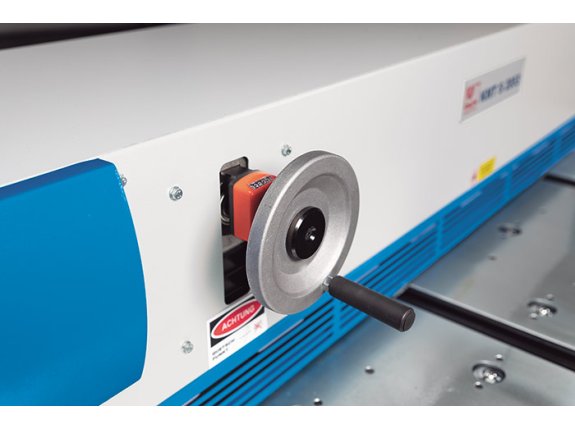

  • The back gauge can be positioned precisely via a hand-wheel

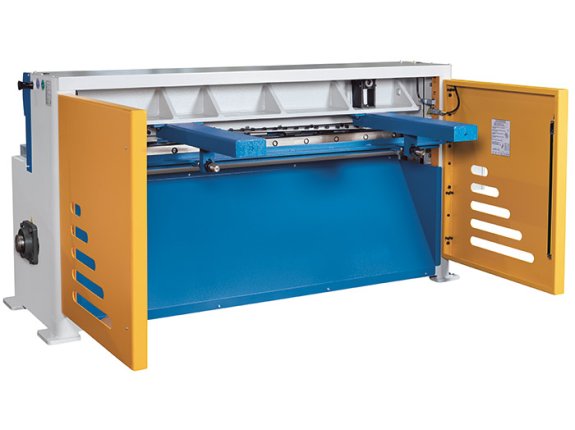

  • The easy accessible work area at the back gauge is secured by light curtain
  • The machine can be equipped with an optional NC-controlled back gauge for a length up to 1000 mm, or a sheet hold-up device

Foot pedal with emergency stop switch SKU:
Foot pedal with emergency stop switch
Foot pedal with emergency stop switch SKU:
Cut-line lighting
Cut-line lighting SKU:
Squaring arm
Squaring arm SKU:
  • Squaring arm with scale & T-Slot & Tilting stop
  • Length: 1.000 mm
Support arms with T-slots and tilting stop
Support arms with T-slots and tilting stop SKU:
Manual 750 mm backgauge
Manual 750 mm backgauge SKU:
Ball bearing front table
Ball bearing front table SKU:
Light curtain
Light curtain SKU:
Top blade with 2 sides
Top blade with 2 sides SKU:
Finger guard
Finger guard SKU:
Operator instructions
Operator instructions SKU:
Back gauge with NC Control 750 mm (BRL Controller)
Back gauge with NC Control 750 mm (BRL Controller) SKU: 253664
Back gauge with NC Control 750 mm (BRL Controller)
Back gauge with NC Control 1000 mm (BRL Controller) SKU: 253665
Back gauge with NC Control 1000 mm (BRL Controller)
Adjustable angle stop on the support arm (the left one) 0-180° SKU: 253666
Adjustable angle stop on the support arm (the left one) 0-180°
Pneumatic sheet back support SKU: 253667
Pneumatic sheet back support
