KNWP 15 M - Manual, ideal for craft shops, schools and training facilities
KNWP 15 M - Manual, ideal for craft shops, schools and training facilities

KNWP 15 M

SKU : 131742

These manual hydraulic workshop presses are built in Europe and are suitable for general assembly and straightening work or for testing workpieces. They enable safe and professional work and are mainly used in mechanical workshops, garages and locksmiths.

  • High quality
  • Made in Europe
  • With hand and foot control
  • Adjustable table height
  • Material support included
Working area
Pressure force 15 t
Operating pressure (max.) 382,2 bar
Total piston stroke 160 mm
Throat width 560 mm
Measures and weights
Hydraulic tank volume 1,65 l
Weight 117 kg
Overall dimensions (length x width x height) 0,83 m x 0,6 m x 1,93 m

For any repair and installation work, e.g.:

  • Removal and installation of press-fit bearings, bolts and bushings
  • Straightening beams, shafts, axles and sections
  • Pressing and crimping
  • Load tests and weld sample testing
  • Straightening of workpieces
  • Material testing
  • Rigid machine frame freaturing a carefully machined weldment structure

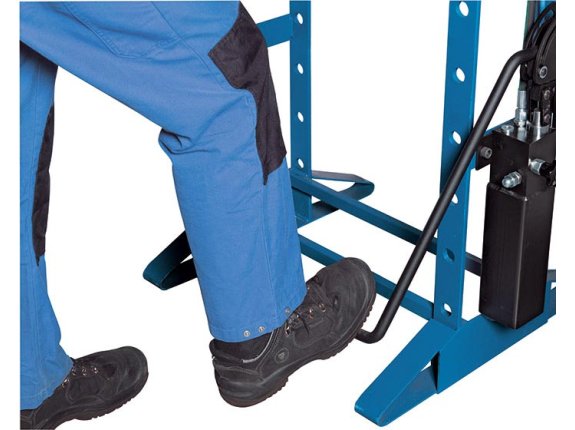

  • Hydraulic pump can be operated by hand or foot control
  • 2-step hydraulics - with change-over switch for changing between quick-stroke and work stroke
  • Automatic reset of piston, controllable by user via throttle valve and spring
  • The support table features a rigid design, but is easy to handle with adjustable height
  • Includes multi-function die for straightening flat material and corrugation
  • Table lifting system
