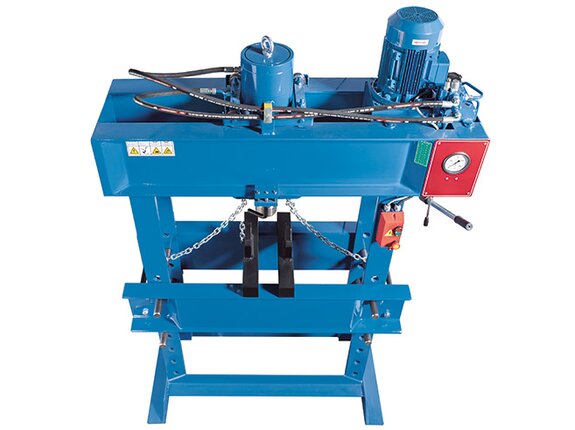

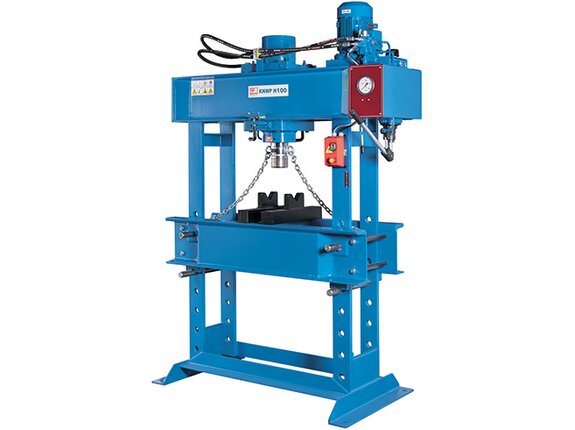

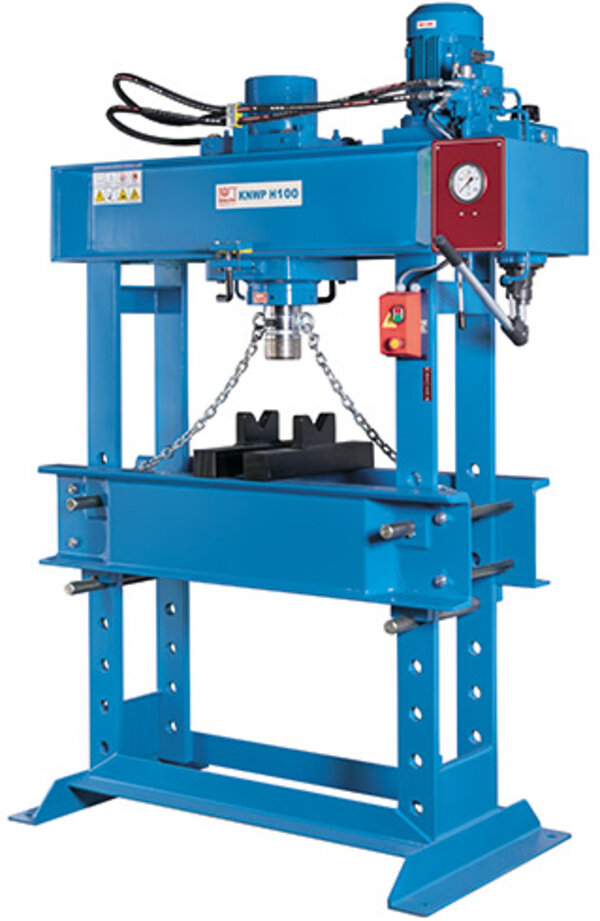

KNWP H 160 - Hydraulic, with horizontal piston travel and a set of prismatic blocks
Measurements

Measurements

KNWP H 160 - Hydraulic, with horizontal piston travel and a set of prismatic blocks
Measurements

KNWP H 160

SKU : 131774

This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.

  • Motorized hydraulic drive
  • Horizontal piston travel
  • Adjustable table height
  • Set of prismatic blocks
Working area
Working width 1100 mm
Frame through-hole 350 mm
Pressure force 160 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 6,2 mm/s
Press speed 6,2 mm/s
Return speed 9,8 mm/s
Drive capacity
Motor rating hydraulic pump 5,5 kW
Measures and weights
Hydraulic tank volume 15 l
Weight 1300 kg
Dimensions (L X W X H) 1640 mm x 950 mm x 2550 mm
Dimensions
A 2550 mm
B 950 mm
C 1390 mm
D 1100 mm
E 350 mm
F 1640 mm

  • Torsionally rigid welded gantry-style frame made of thick-walled sectional steel
  • Heavy-duty design, intended for professional use
  • Versatile for many kinds of repair and assembly work
  • Finely adjustable press force for trueing axles, supports, shafts, and much more
  • Long piston stroke for removing and press-fitting bearings and bushings
  • The operator can see the current working pressure on the gauge at all times.
  • Motorized hydraulic unit for efficient work
  • Work cylinder with smooth horizontal adjustment for easier setup
  • Premium components for guaranteed long-lasting reliable operation

Movable working cylinder SKU:

Piston can be moved left-right to change the position of the pressing point.

Movable working cylinder
Movable working cylinder SKU:

Piston can be moved left-right to change the position of the pressing point.

Height adjustable work table
Height adjustable work table SKU:

The support table can be easily adjusted at the desired height.

V-blocks
V-blocks SKU:

Multi-function V-blocks wich extend the range of possible operations.

Manometer
Manometer SKU:
Operator manual
Operator manual SKU:
