KSB 32A - Sturdy box column design reduces torsion and vibration for superior drilling, reaming and tapping performance
KSB 32A - Sturdy box column design reduces torsion and vibration for superior drilling, reaming and tapping performance

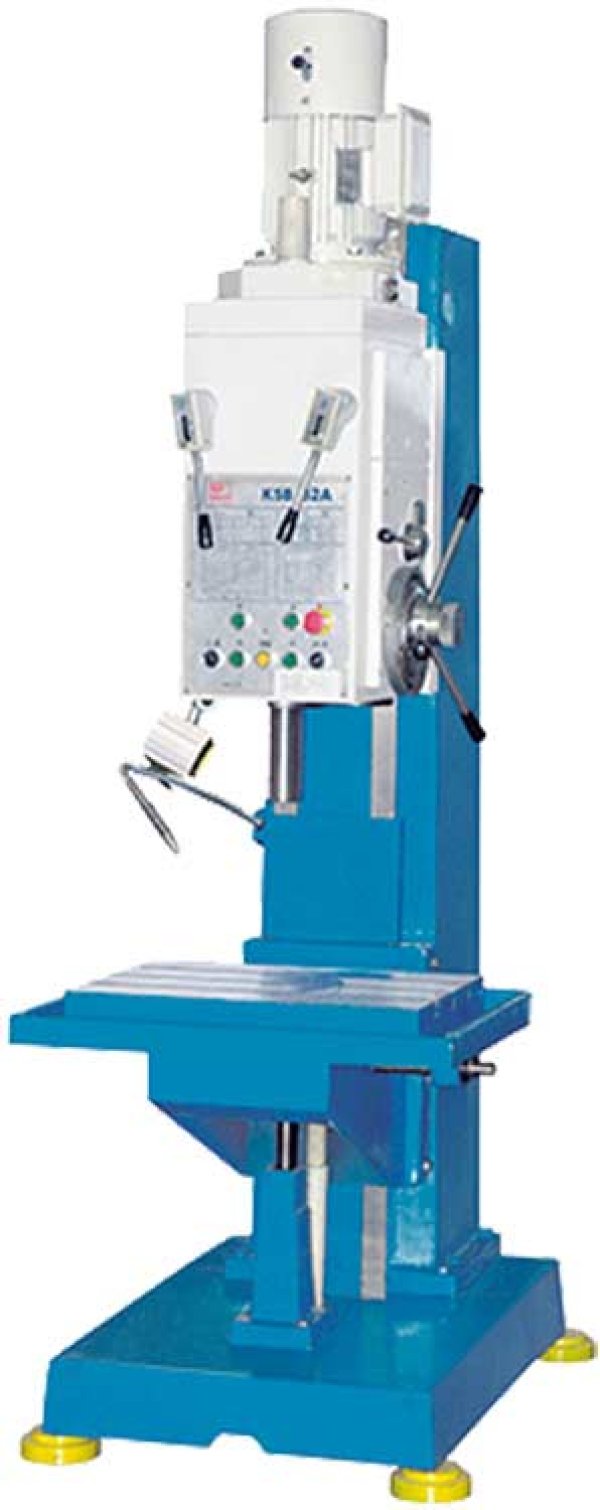

KSB 32A

SKU : 101692

The box column drilling machines of the KSB series are the heavyweights among column drilling machines. Their unwavering stability enables superior performance in demanding applications. Nothing vibrates here. Nothing bends here. Finely stepped spindle and feed gears provide the correct machining parameters for large bores. The table and head can be adjusted on the column and cannot be swiveled, which provides an additional advantage in terms of stability.

  • Extremely rigid box-column design
  • Table and drill head can each be positioned in height
  • High torque and drilling capacity
  • Powerful automatic feed
  • Includes thread cutting unit
Working area
Drilling capacity 32 mm
Feed force, axial (max.) 9 kN
Throat 280 mm
Vertical head travel 200 mm
Quill stroke 200 mm
Feed Z-axis 0,056 mm/R - 1,8 mm/R
Spindle nose-to-table surface distance 690 mm
Table stroke 300 mm
T-slots, width 14 mm
Number of T-slots 3 positions
Table set up area 400 mm x 550 mm
Headstock
Spindle torque (max.) 160 Nm
Spindle mount 4 MT
Spindle speed 50 1/min - 2000 1/min
Drive capacity
Motor rating main drive 2,2 kW
Motor rating coolant pump 0,09 kW
Measures and weights
Flow rate 25 l/min
Overall dimensions (length x width x height) 0,96 m x 0,85 m x 2,34 m
Weight 950 kg

  • Box-column design provides high load capacity, and is torsion-proof and rigid
  • Table and drill head can be moved individually for an optimum machining height
  • 9-step feed and speed gears, with oil-bath lubrication
  • High torque across the entire speed range
  • Thread-cutting unit automatically reverses upon reaching the preset depth

Coolant system SKU:
Coolant system
Coolant system SKU:
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
LED work lamp
LED work lamp SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
