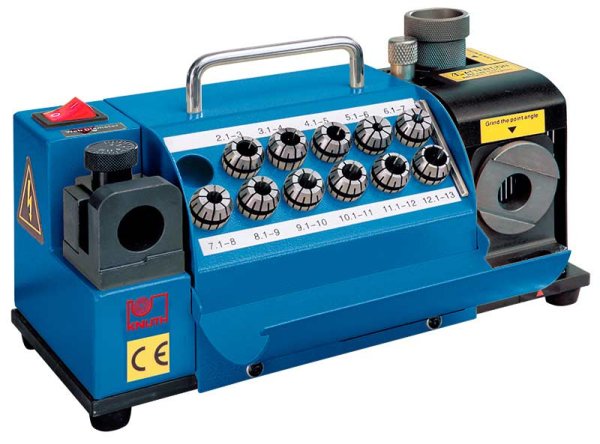

KSM 13 - Portable tool grinding machine for HSS and carbide drills
KSM 13 - Portable tool grinding machine for HSS and carbide drills

KSM 13

SKU : 112820

The handy drill bit grinding devices of the KSM series impress with their simple operation and are ideal for precise and cost-effective grinding of double-edged twist drill bits. Even without prior knowledge, the work is done cleanly, quickly and precisely. The devices are ideal for any tool crib and include both collets and a high-quality grinding wheel.

  • Clearance angle and point angle grinding
  • Grinding wheels included
  • Common collets included
Working area
Grinding diameter 3 mm - 13 mm
Grinding wheel material CBN
Drive capacity
Motor rating main drive 0,12 kW
Supply voltage 220 V
Measures and weights
Overall dimensions (length x width x height) 0,32 m x 0,18 m x 0,19 m
Weight 9 kg

  • Chamfering of relief angle (rear of drill bit), chamfering of point angle
  • Free grinding of drill bit center
  • Optimum grinding path to provide controlled chip removal at the drill
