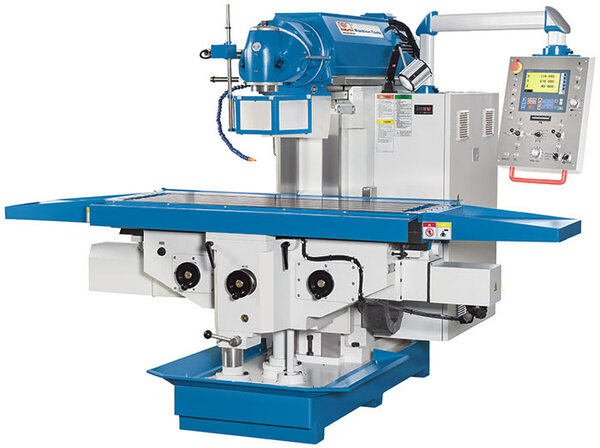

Servomill® UWF Series

The versatile Servomill UWF with servo-conventional feed technology and on two levels swiveling cutter head is the top model of the Universal Milling Machine series. This series features an extra large work area and more powerful main spindle drives. Electronic stops, electronic hand wheels and additional milling functions give the Servomill many of the advantages of the CNC series production technology even without programming. These machines are mainly used in tool making, manufacturing and training.
The versatile Servomill UWF with servo-conventional feed technology and on two levels swiveling cutter head is the top model of the Universal Milling Machine series. This series features an extra lar...
read more
Models
Table dimensions
1235 mm x 460 mm
1600 mm x 500 mm
2000 mm x 500 mm
Travel X-axis
900 mm
1200 mm
1400 mm
Travel Y-axis
650 mm
700 mm
700 mm
Travel Z-axis
450 mm
500 mm
500 mm
Speed range (2)
30-390 / 390-2050 1/min
30-390 / 390-2050 1/min
30-390 / 390-2050 1/min
Spindle mount
SK 40 DIN 2080
SK 50 DIN 2080
SK 50 DIN 2080
Rapid feed X-axis
2200 mm/min
2200 mm/min
2200 mm/min
Motor rating main drive
7,5 kW
11 kW
11 kW
Overall dimensions (length x width x height)
2 m x 2,5 m x 2 m
2,7 m x 2,3 m x 2,2 m
2,7 m x 2,3 m x 2,2 m
Weight
4000 kg
4200 kg
4500 kg
-
Table dimensions
Travel X-axis
Travel Y-axis
Travel Z-axis
Speed range (2)
Spindle mount
Rapid feed X-axis
Motor rating main drive
Overall dimensions (length x width x height)
Weight
Servomill® UWF 900
Table dimensions 1235 mm x 460 mm
Travel X-axis 900 mm
Travel Y-axis 650 mm
Travel Z-axis 450 mm
Speed range (2) 30-390 / 390-2050 1/min
Spindle mount SK 40 DIN 2080
View Machine
Servomill® UWF 1200
Table dimensions 1600 mm x 500 mm
Travel X-axis 1200 mm
Travel Y-axis 700 mm
Travel Z-axis 500 mm
Speed range (2) 30-390 / 390-2050 1/min
Spindle mount SK 50 DIN 2080
View Machine
Servomill® UWF 1400
Table dimensions 2000 mm x 500 mm
Travel X-axis 1400 mm
Travel Y-axis 700 mm
Travel Z-axis 500 mm
Speed range (2) 30-390 / 390-2050 1/min
Spindle mount SK 50 DIN 2080
View Machine
