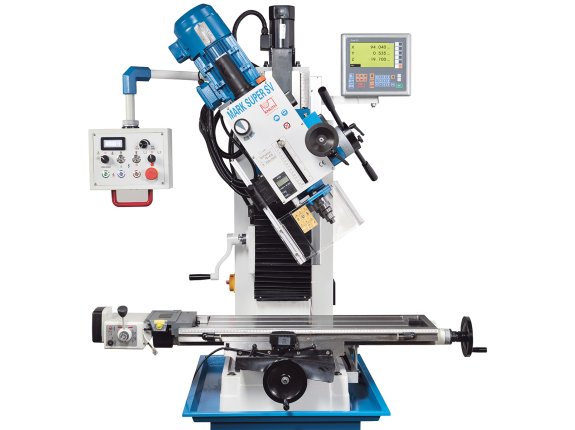

Mark Super SV - Multi-side milling/drilling machine with automated feed in the
X axis, automated quill feed and tapping unit

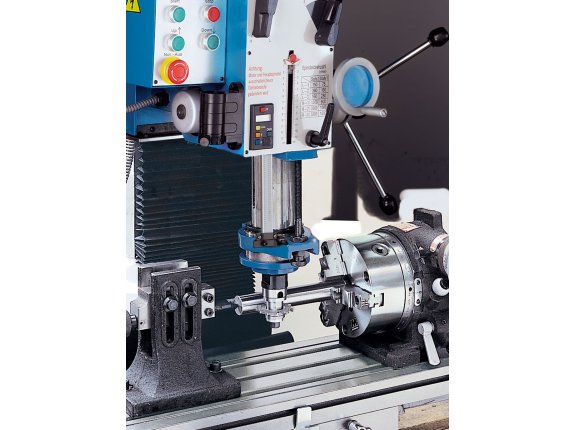

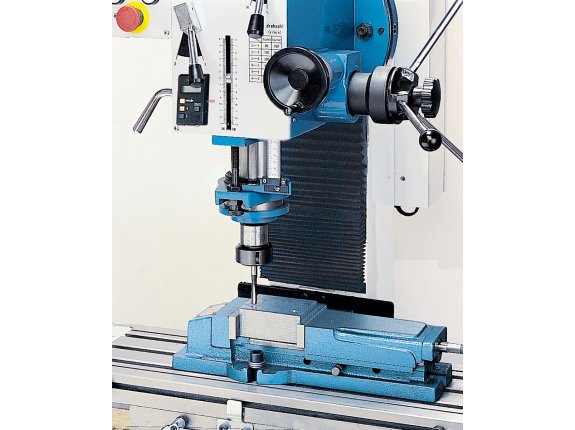

Head swivels ± 45°

Head swivels ± 45°

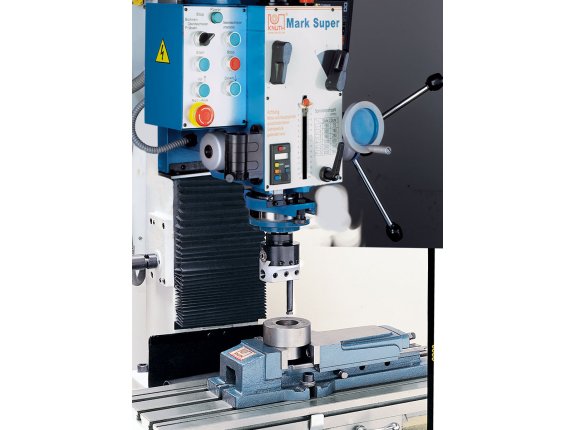

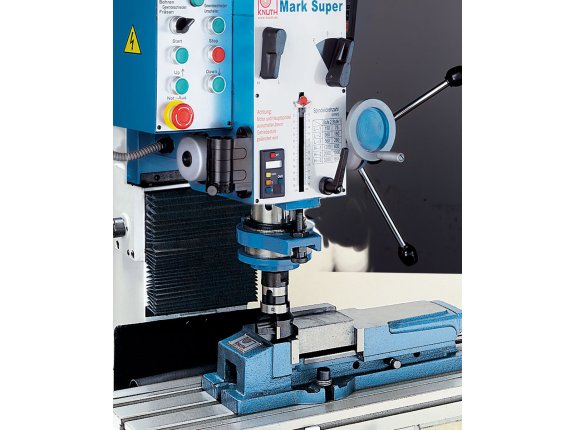

Tapping

Tapping

Mark Super SV - Multi-side milling/drilling machine with automated feed in the
X axis, automated quill feed and tapping unit
Head swivels ± 45°
Tapping

Mark Super SV

SKU : 301490

The models of the Mark Super series are drilling and milling machines in the best way. They are ideal as a compact drill with a powerful drive and a wide speed range. But these machines also cut a fine figure when milling steel and non-ferrous metals. They are therefore widespread in workshops and maintenance departments for single piece machining, small series production or training departments. Thanks to their compact design and versatility, they are still a bestseller even after 15 years.

  • Infinitely variable feed on X axis
  • Automated drilling feed with depth display
  • Gearbox milling head for powerful machining
  • Swiveling head for wide range of applications
  • Infinitely variable spindle speed with digital display (SV model only)
Working area
Table dimensions 800 mm x 240 mm
Drilling capacity in steel 25 mm
Shaft milling 25 mm
Head elevation 380 mm
Number of table T-slots 3 positions
T-slot table (width x spacing) 14 mm x 80 mm
Travels
Travel X-axis manual / autom. 560 / 480 mm
Travel Y-axis 190 mm
Vertical milling head
Spindle mount MK 4 DIN 228
Quill diameter 75 mm
Quill stroke 120 mm
Spindle nose-to-table distance 450 mm
Throat 258 mm
Head swivel range ± 45°
Speed (2) 75-438 / 438-2500 1/min
Feed
Quill feeds 0,10; 0,18; 0,26 (3) mm/R
Drive capacity
Main motor rating 1,5 kW
Measures and weights
Overall dimensions (length x width x height) 1,24 m x 0,93 m x 2,1 m
Weight 380 kg

Mark Super S• SV

  • Motorized cutter head movement and hand-wheel for exact positioning of head
  • Hand-wheel for quill micro-feed
  • Digital depth indicator for quill travel
  • Tapping unit with adjustable rotation reversal for thread cutting
  • Hardened gear racks and shafts for quiet operation and long life
  • Rigid base with storage room is included
  • Infinitely variable feed on X-axis is included

More power and variable speed control for a wider range of applications

  • Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
  • The selected spindle speed is displayed directly on the control panel

3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
Automatic quill feed
Automatic quill feed SKU:
Base
Base SKU:

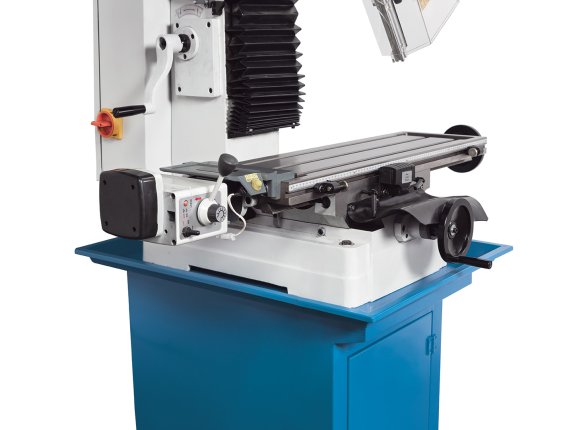

Machine base with storage space

Table feed TV 1000
Table feed TV 1000 SKU:
Drill chuck 13 mm
Drill chuck 13 mm SKU:
Tool-holder bits
Tool-holder bits SKU:
Operator manual
Operator manual SKU:
