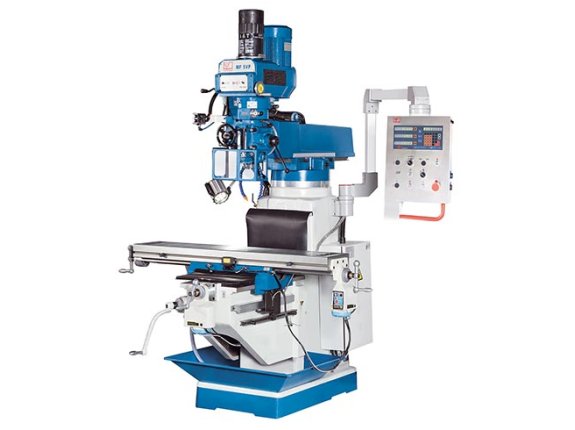

MF 5 VP - With large traverse paths, automatic feed in the X and Y axes, swiveling milling head and pneumatic tool clamping
Variable throat widths and machining angles

Variable throat widths and machining angles

Wide, rigid box ways on Z and Y-axes

Wide, rigid box ways on Z and Y-axes

MF 5 VP - With large traverse paths, automatic feed in the X and Y axes, swiveling milling head and pneumatic tool clamping
Variable throat widths and machining angles
Wide, rigid box ways on Z and Y-axes

MF 5 VP

SKU : 301217

The versatile multi-purpose milling machine combines all the advantages of the world's best-selling milling machine with additional stability. The top model of the MF series has an SK 40 tool holder and a 30 percent higher unladen weight. The X and Y axis are equipped with infinitely variable feed devices. The swiveling vertical milling head offers a wide speed range for machining steel and non-ferrous metals. The equipment also includes a four-stage, automatic quill feed, pneumatic tool clamping and a large clamping table for workpieces and clamping devices.

  • Swiveling cutter head with quill feed
  • Pneumatic tool tightening system
  • Infinitely variable spindle speed
  • Feed on X-axis with rapid feed
  • Heavy construction with wide guideways
ZAR 411,611.00
Working area
Table set up area 1370 mm x 250 mm
Table load capacity (max.) 350 kg
Travels
Travel X-axis 800 mm
Travel Y-axis 390 mm
Travel Z-axis 380 mm
Vertical milling head
Spindle speed (vertical) 70 1/min - 3600 1/min
Spindle mount SK 40 DIN 2080
Quill stroke 127 mm
Feed
Quill feeds (3) 0,04; 0,08; 0,15 mm/R
Drive capacity
Motor rating main drive 3,75 kW
Measures and weights
Overall dimensions (length x width x height) 2,54 m x 2,16 m x 2,24 m
Weight 1590 kg

  • More rigid and more powerful with 3.75 kW motor
  • ISO 40 spindle
  • 3 automatic drill feeds
  • Manual coarse feed for quill, with change-over for manual fine feed
  • Quill with micrometer depth stop
  • Reversing switch for forward reverse rotation
  • Spindle brakes
  • Infinitely variable speeds
  • Head swivels ± 90° to the right and to the left
  • TV 1000 table feed in X and Y, infinitely variable with rapid feed
  • Coolant system
  • Chip tray
  • Central lubrication
  • Pneumatic tool clamping

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.01/ 0.005 mm
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
Operating tools
Operating tools SKU:
Coolant system
Coolant system SKU:
Pneumatic tool clamping
Pneumatic tool clamping SKU:
Chip tray
Chip tray SKU:
Central lubrication
Central lubrication SKU:
Horizontal guideway cover
Horizontal guideway cover SKU:
Table feed TV 1000 on X- and Y-axis
Table feed TV 1000 on X- and Y-axis SKU:
Operator manual
Operator manual SKU:
