RSM 750 C - Inside and outside machining with auto feed on transverse axis
RSM 750 C - Inside and outside machining with auto feed on transverse axis

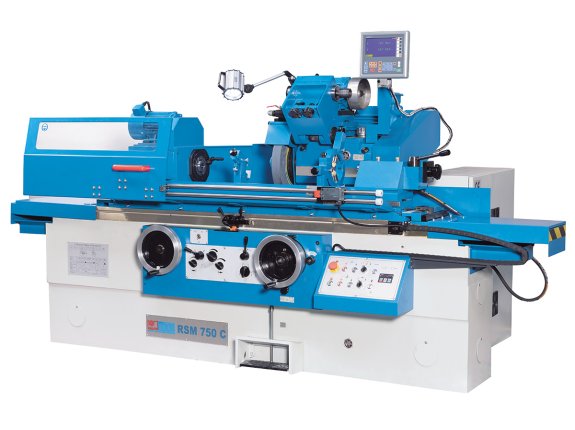

RSM 750 C

SKU : 302444

The models of the RSM C series are precision cylindrical grinding machines designed for long and heavier workpieces. The series is suitable for processing individual parts as well as for small series production and offer additional flexibility with the internal grinding device. The classic design with a large machine bed, ground guides, and powerful drives for the work spindle, grinding spindle and hydraulic unit, make these machines a cost-effective solution for the precision grinding of larger workpieces.

  • Internal and external grinding
  • Hydrostatic bearings for high surface quality
  • Heavy machine frame to support large workpieces
  • Swiveling headstock for conical grinding of short parts
  • Integrated rapid feed on Z-axis with manual return
  • Extensive package of standard accessories
Working area
Center height 135 mm
Grinding diameter 8 mm - 200 mm
With steady rest 8 mm - 60 mm
Grinding length 750 mm
Inside grinding diameter with rest 35 mm - 100 mm
Inside grinding diameter without rest 25 mm - 100 mm
Inside grinding depth 125 mm
Workpiece weight between centers (max.) 80 kg
Grinding wheel feed (min.) 0,0025 mm
Chuck diameter 200 mm
Table swivel range (max.) -2° / +6°
Wheel speeds 35 m/s
Work spindle speeds 50 Hz: 25-380 1/min
Travels
Grinding head travel 200 mm
Feed
Table feed, infinitely variable 0,1 m/min - 4 m/min
Feed per hand-wheel rotation X-axis 0,5 mm
Feed per scale division X-axis 0,0025 mm
Headstock
Working headstock swivel range 0 deg - 45 deg
Working spindle taper 4 MT
Grinding headstock
Grinding spindle speed 1670 1/min
Grinding headstock swivel range (r+l) 10°
Inside grinding spindle speed 10000 1/min
Tailstock
Tailstock taper 4 MT
Tailstock quill stroke 25 mm
Drive capacity
Motor rating - grinding spindle / hydraulic pump 5,5 / 0,75 kW
Motor rating inside grinding 1,1 kW
Motor rating - headstock / coolant pump 0,75 / 0,13 kW
Measures and weights
Grinding wheel dimensions 400 mm x 50 mm x 203 mm
Grindstone dimensions, inside grinding (max.) 50 mm x 40 mm x 16 mm
Grindstone dimensions, inside grinding (min.) 45 mm x 35 mm x 10 mm
Overall dimensions (length x width x height) 3 m x 1,8 m x 1,65 m
Weight 3500 kg

  • Large machine bed in a heavy design accommodates workpieces with lengths up to 2000 mm and diameters up to 320 mm
  • Wide, precision-ground guideways ensure maximum accuracy across the entire workpiece length and accommodate high workpiece weights
  • The table features large dimensions and swivels in two directions - table movement via hand-wheel or automatically via linear hydraulic feed
  • The robust feed valve allows very precise micro-feed control on the X axis, including a user-adjustable dwell time at the end of the longitudinal table travel
  • Automatic feed in 2 steps – limited by an adjustable stop

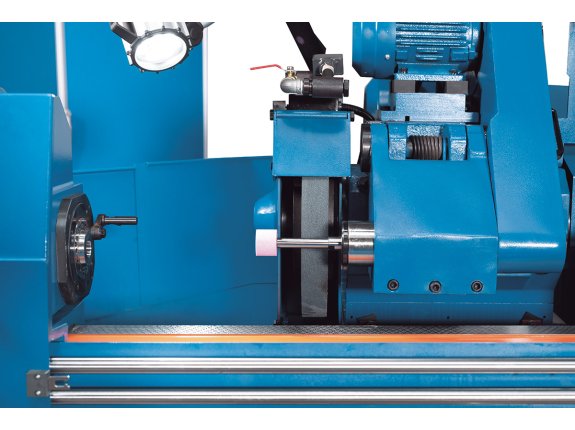

  • The grinding spindle features hydrostatic bearings and provides for maximum precision and surface quality, plus extraordinary tool life and rigidity
  • The powerful grinding spindle motor is designed for continuous operation
  • The heavy-duty spindle head swivels 30° to the left and to the right; the work spindle head swivels 45°

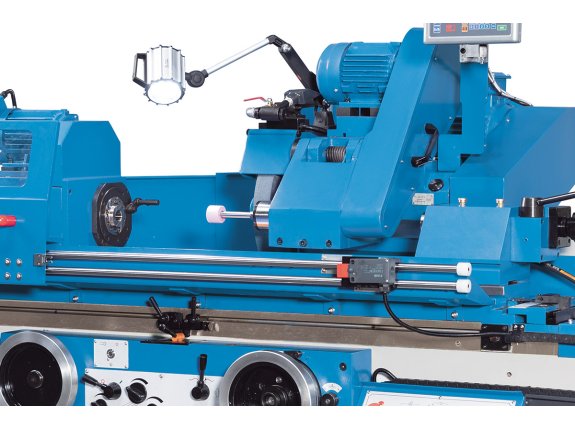

  • Inside grinder included
  • Integrated rapid feed on Z axis with manual return

2-axis position indicator X.Pos 3.2 SKU:
2-axis position indicator X.Pos 3.2
2-axis position indicator X.Pos 3.2 SKU:
3-jaw chuck Ø 200 mm
3-jaw chuck Ø 200 mm SKU:
Balancing mandrel
Balancing mandrel SKU:
Balancing station
Balancing station SKU:
Center point
Center point SKU:
Coolant system
Coolant system SKU:
Grinding wheel dresser
Grinding wheel dresser SKU:
Grinding wheel flange
Grinding wheel flange SKU:
Internal grinding equipment
Internal grinding equipment SKU:
Operator manual
Operator manual SKU:
Operating tools
Operating tools SKU:
Follow rest
Follow rest SKU:
steady rest (open)
steady rest (open) SKU:
steady rest (closed)
steady rest (closed) SKU:
