SBS 1020/2,5 - Compact manual swivel bending machine with segmented upper tool
SBS 1020/2,5 - Compact manual swivel bending machine with segmented upper tool

SBS 1020/2,5

SKU : 131364

The folding machines of the SBS series are used for bending thin sheets. Due to their compact design, they fit easily into small workshops and cover a wide range of applications with their segmented upper tool. With an adjustable angle stop, these folding machines are also suitable for the production of small series.

  • Compact and torsion-proof
  • Segmented mal edie for many bending possiblities
  • Built-in , manual bending compensation
  • Adjustable angle stop for batch production
  • Foot switch for top tool clamping for hands-free use
Working area
Working length 1020 mm
Plate thickness (max.) - 400 N/mm² 2,5 mm
Bending bar angle (range) 135°
Measures and weights
Overall dimensions (length x width x height) 1,35 m x 0,85 m x 1,18 m
Weight 285 kg

  • For formed component bending
  • Compression spring for top counterbalance
  • Cam lock and rebound spring for bending beam counterbalance

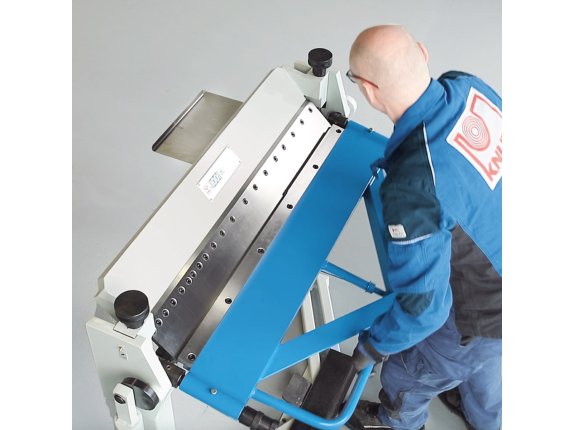

  • Bow handle for bending beam rotation

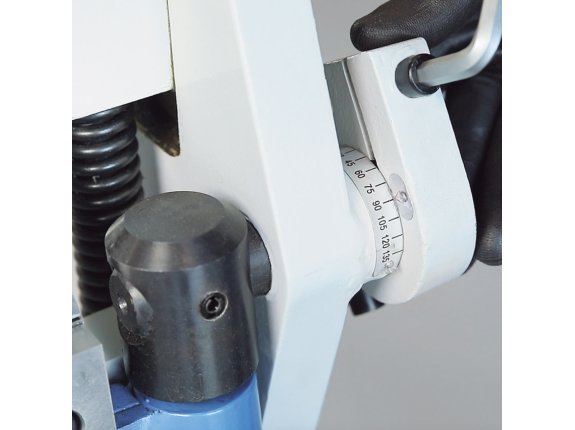

  • Adjustable bending angle stop with scale up to 135°

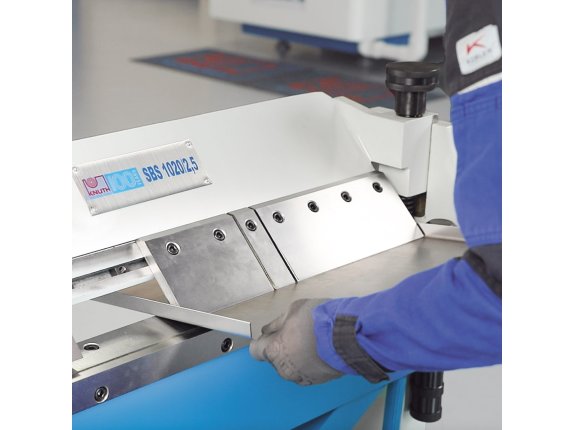

  • Segmented top beam tools
  • Segment size: 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 250 ,270 mm

Segmented sharp nose tool type upper die SKU:
Segmented sharp nose tool type upper die
Segmented sharp nose tool type upper die SKU:
Operator manual
Operator manual SKU:
