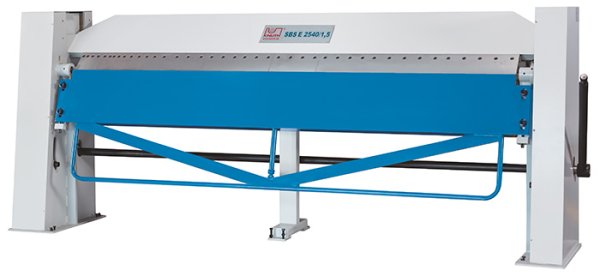

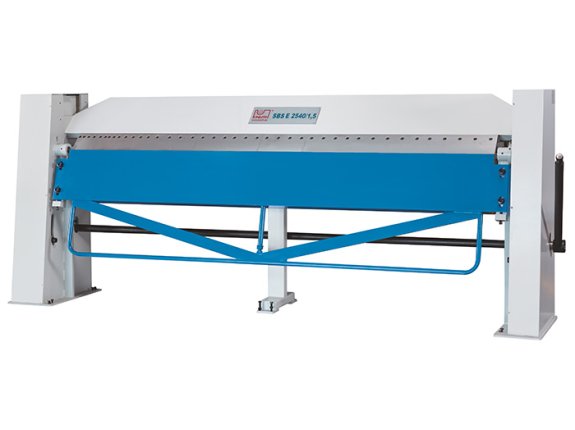

SBS E 2540/1,5 - Heavy manual folding machine with segmented upper tool and manual crowning for large working length requirements

SBS E 2540/1,5

SBS E 2540/1,5 - Heavy manual folding machine with segmented upper tool and manual crowning for large working length requirements

SBS E 2540/1,5

SKU : 131371

The manual folding machines of the SBS E-series with their heavy and robust design are designed for bending long metal sheets of up to 3000 mm (118 in.) in length. Due to its angle stop, this series can also be used for the production of small series.

  • Large bending lengths
  • Segmented upper tool for increased bending possibilities
  • Built-in manual bending compensation
  • Adjustable angle stop
  • Easy to use
Working area
Working length 2540 mm
Plate thickness (max.) - 400 N/mm² 1,5 mm
Working height 920 mm
Male Die
Stroke 120 mm
Bending Die
Bending angle (max.) 135 deg
Adjustment range for A axis 15 mm
Measures and weights
Overall dimensions (length x width x height) 3,32 m x 0,72 m x 1,5 m
Weight 1250 kg

  • The series has a rugged, very robust design and is impressively easy to handle while delivering maximum accuracy.
  • All models of this series have a hardened, segmented male die.
  • Segments can be removed individually, so all sides of the basin can be bent

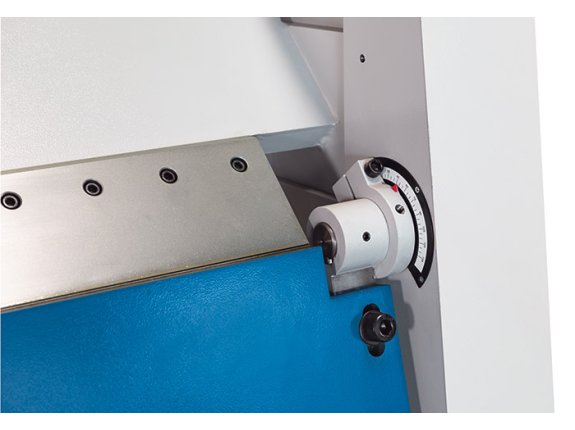

  • Adjustable angular stop for the production of angular small batches
  • A manually adjustable rear gauge is available as an option

Segmented sharp nose tool type upper die SKU:
Segmented sharp nose tool type upper die
Segmented sharp nose tool type upper die SKU:
Operator manual
Operator manual SKU:
