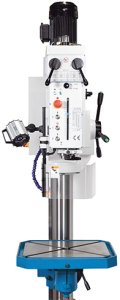

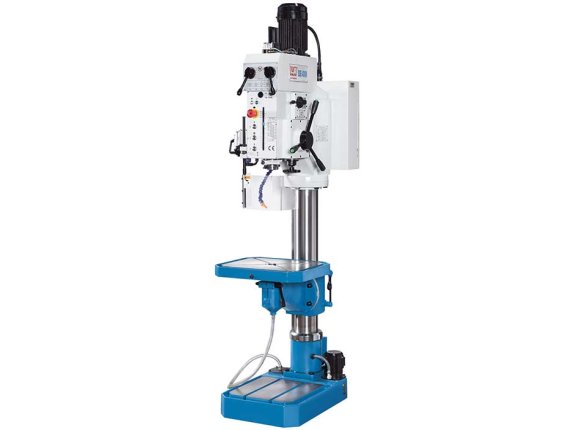

SSB 40 Xn - Our best selling, gear driven drill press for your workshop

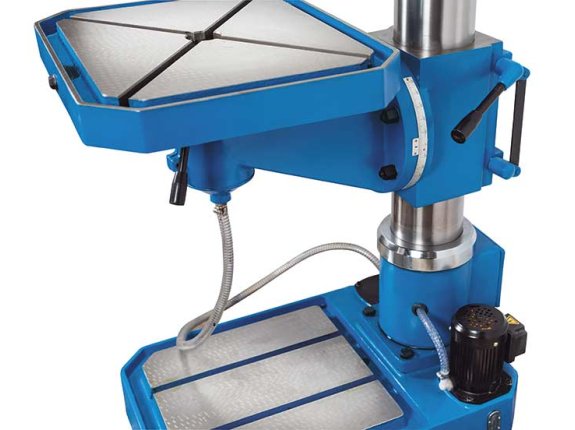

Large drill press table with adjustable angle

Large drill press table with adjustable angle

Coolant system is included

Coolant system is included

SSB 40 Xn - Our best selling, gear driven drill press for your workshop
Large drill press table with adjustable angle
Coolant system is included

SSB 40 Xn

SKU : 162339

The drilling machines of the SSB Xn series are the right choice for every workshop, both for repair and production. These universal drilling machines have a thick-walled column, powerful drives and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies. With its proven reliability, this series has been one of our best-selling solutions for more than 20 years.

  • Tilting table for drilling at an angle
  • Automatic drilling feed
  • Work table with 2 axes of rotation for flexibility in operation
  • Well-considered safety protection
  • Integrated coolant system
Working area
Drilling capacity 40 mm
Tapping capacity, steel M24
Table set up area 540 mm x 440 mm
Manual table travel 550 mm
Quill stroke 190 mm
Table swivel range (max.) ± 45°
Spindle nose-to-table surface distance 610 mm
Spindle nose-to-foot distance 1195 mm
Throat 340 mm
Column diameter 140 mm
Head swivel range -
Table load capacity 150 kg
Headstock
Spindle mount 4 MT
Speed range 75 1/min - 2020 1/min
Feed
Quill feeds 0,12; 0,24; 0,4 mm/R
Drive capacity
Motor rating main drive 1,5 kW
Measures and weights
Overall dimensions (length x width x height) 0,95 m x 0,61 m x 2,23 m
Weight 550 kg

Machine Frame

  • The entire series features a very rigid construction with thick-walled column and large throat
  • The drill table swivels 45° to either side and its height is adjustable via hand crank
  • Crosswise arranged T-slots offer a wide variety of clamping possibilities
  • The table’s swivel and rotation functions simplify alignment of workpieces and clamping devices
  • The central coolant passage ensures smooth rotations even beyond 360°
  • The drill press foot serves as coolant reservoir and also offers a large, precision-machined setup area with parallel clamping slots.

Spindle and quill

  • The 12-step main drive combined with a powerful motor offers a wide, finely segmented speed range
  • Electric components by Schneider guarantee trouble-free and safe operation of the entire electric installation
  • The current speed is shown on a digital display on the machine control panel
  • The 3-step feed gear is integrated in the drill head, runs in an oil bath for low maintenance and is easy to shift
  • The conveniently placed push button at the capstan handle allows for quick and easy ON/Off switching of the automatic feed via electromagnetic coupling
  • The quill stroke can be easily read at a large scale on the drill head, and the drill depth can be limited in the automatic feed via an integrated depth stop
  • After reaching the desired drill depth, the feed will automatically shut off, and the quill will be returned to its zero position via spring force
  • If the user selected the thread cutting function, this stop will also define the desired thread depth
  • Upon reaching the set position, the machine will automatically reverse spindle rotation
  • A powerful integrated coolant pump is part of the SSB series standard equipment
  • The modern LED machine light is bright, long lasting, and provides optimum lighting for increased operator safety
  • For quick tool changing, the SSB drill presses feature an ejection function within the quill that requires no tools
  • Extensive standard equipment and operating tools complete the equipment package

Thread cutting function SKU:

In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle

Thread cutting function
Thread cutting function SKU:

In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle

Automatic drilling feed
Automatic drilling feed SKU:
  • Automatic drill feeds controlled by electromagnetic clutch
  • Three quill feeds: 0.24, 0.12, 0.4 mm/R
Accessory set for drilling
Accessory set for drilling SKU:

Contains:

  • Drill chuck with key B16
  • Reduction sleeve: MT4 / MT3
  • Reduction sleeve: MT4 / MT2
  • Reduction sleeve: MT3 / MT1
  • Drift bolt
Coolant system
Coolant system SKU:
Protective shield
Protective shield SKU:
  • With interlock system for increased safety
  • High adjustable
LED work lamp
LED work lamp SKU:
Operator instructions
Operator instructions SKU:
