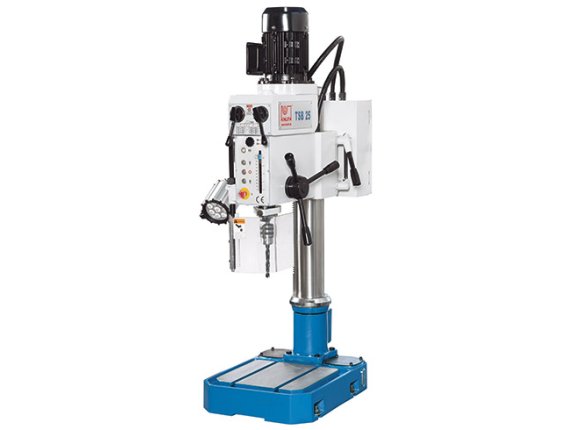

TSB 25 - Featuring gear drive, swivel drilling head and digital display for spindle speed
TSB 25 - Featuring gear drive, swivel drilling head and digital display for spindle speed

TSB 25

SKU : 162340

The TSB bench drill series impresses with its compact dimensions and high drilling performance for a wide range of applications. They are suitable for every workshop, from steel construction to repair shops. The machines have a main spindle gearbox for high torque and a particularly wide speed range. A swiveling drill head enables drilling at an angle. The TSB 35 also has an automatic quill feed for large drilling diameters.

  • Compact table design
  • Swiveling drill head
  • Manual transmission for high torque
Working area
Drilling capacity 25 mm
Tapping capacity, steel M 16
Foot set up area (length x width) 310 mm x 320 mm
Vertical head travel 470 mm
Spindle nose-to-foot distance 650 mm
Throat depth 240 mm
Column diameter 95 mm
Headstock
Spindle speed 125 1/min - 2825 1/min
Spindle mount 3 MT
Quill stroke 110 mm
Feed
Quill feeds - mm/R
Drive capacity
Motor rating main drive 0,75 kW
Measures and weights
Overall dimensions (length x width x height) 0,7 m x 0,41 m x 1,56 m
Weight 220 kg

High Power at a Low Price

  • Drilling capacity 25 mm
  • Throat 240 mm
  • Spindle nose-to-foot distance 650 mm
  • Spindle speed (6) 125-2825 rpm
  • Spindle mount MT 3
  • Rigid cast-iron construction
  • Height-adjustable machine head
  • 6 speed steps
  • Rectangular table with T-slots and circumferential coolant groove

Base SKU:

Machine base with storage space

Base
Base SKU:

Machine base with storage space

Protective shield
Protective shield SKU:
LED work lamp
LED work lamp SKU:
Drill chuck
Drill chuck SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
