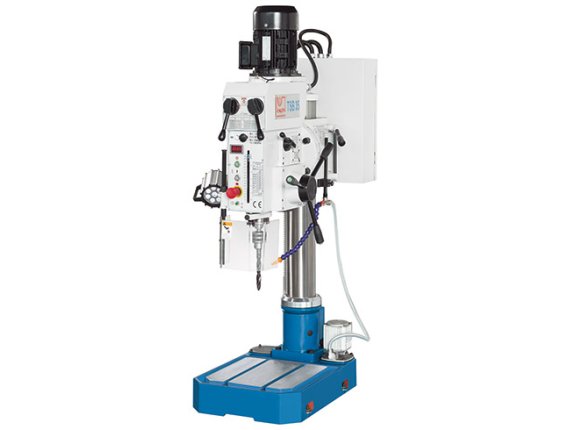

TSB 35 - Featuring gear drive, swivel drilling head and digital display for spindle speed

TSB 35 is shown with digital rpm display

TSB 35 - Featuring gear drive, swivel drilling head and digital display for spindle speed

TSB 35

SKU : 162345

The TSB bench drill series impresses with its compact dimensions and high drilling performance for a wide range of applications. They are suitable for every workshop, from steel construction to repair shops. The machines have a main spindle gearbox for high torque and a particularly wide speed range. A swiveling drill head enables drilling at an angle. The TSB 35 also has an automatic quill feed for large drilling diameters.

  • Compact table design
  • Swiveling drill head
  • Manual transmission for high torque
Working area
Drilling capacity 35 mm
Tapping capacity, steel M 22
Foot set up area (length x width) 370 mm x 360 mm
Vertical head travel 515 mm
Spindle nose-to-foot distance 645 mm
Throat 320 mm
Column diameter 120 mm
Headstock
Spindle speed 125 1/min - 3030 1/min
Spindle mount 4 MT
Quill stroke 155 mm
Feed
Quill feeds (3) 0,1; 0,2; 0,3 mm/R
Drive capacity
Motor rating main drive 1,2 kW
Measures and weights
Overall dimensions (length x width x height) 0,81 m x 0,5 m x 1,67 m
Weight 340 kg

High Power at a Low Price

  • Drilling capacity 35 mm
  • Throat 320 mm
  • Spindle nose-to-foot distance 645 mm
  • Spindle speed (12) 125-3030 rpm
  • Spindle mount MT 4
  • Rigid cast-iron construction
  • Height-adjustable machine head
  • 6 or 12 speed levels
  • Rectangular table with T-slots and circumferential coolant groove
  • Automatic quill feed
  • Digital speed (rpm) display
  • Coolant system
  • Head swivels ± 45°
  • Tapping feature

Base SKU:

Machine base with storage space

Base
Base SKU:

Machine base with storage space

Protective shield
Protective shield SKU:
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
LED work lamp
LED work lamp SKU:
Coolant system
Coolant system SKU:
Drill chuck
Drill chuck SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
