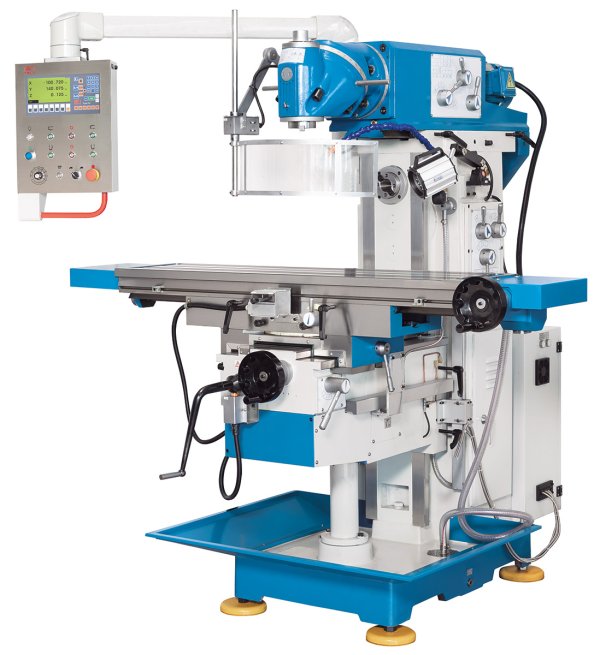

UWF 3.2 - With universal type milling head, automatic feed on all axis, swiveling table and horizontal spindle

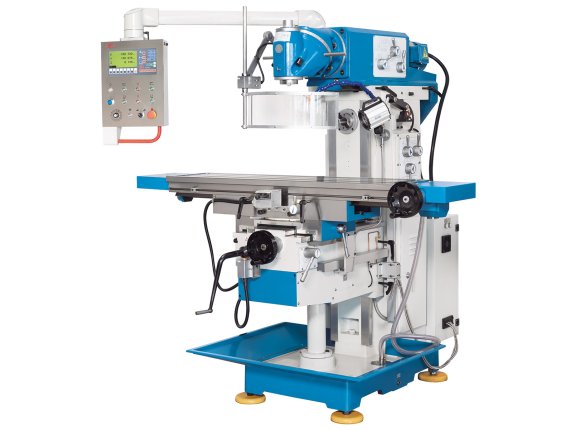

UWF 3.2 - With universal type milling head, automatic feed on all axis, swiveling table and horizontal spindle

UWF 3.2

SKU : 362695

The versatile universal milling machine complements the tried and tested UWF 3. Both models have the large work area, the universal milling head and the horizontal spindle in common. The new UWF 3.2. however has a slightly higher speed range and an infinitely variable servomotor feed, which extends its range of application. Together with the extensive equipment, this model is also ideally suited for repair workshops as well as training and production departments.

  • Universal cutter head swivels on 2 levels
  • Outer arbor support for horizontal milling
  • Swiveling milling table
  • Servo-feed on all axes with rapid feed
  • Extensive standard equipment
ZAR 545,806.00
Working area
Table set up area 1370 mm x 320 mm
Table load capacity (max.) 260 kg
Table swivel range r/l 45 deg
Number of T-slots 3 positions
T-slot (width x spacing) 14 mm x 80 mm
Travels
Travel X-axis 1000 mm
Travel Y-axis 360 mm
Travel Z-axis 400 mm
Vertical milling head
Spindle speed (vertical) 45 1/min - 1660 1/min
Spindle mount SK 40 DIN 2080
Throat 300 mm - 765 mm
Vertical spindle-to-table surface distance 260 mm - 660 mm
Milling head swivel range 360 deg
Rapid feed
Rapid feed X-/ Y-axis 1335 mm/min
Rapid feed Z-axis 1000 mm/min
Horizontal Milling Spindle
Spindle speed (horizontal) 35 1/min - 1500 1/min
Spindle mount SK 40 DIN 2080
Horizontal spindle-to-table surface distance 75 mm - 475 mm
Feed
Feed speed X-axis 30 mm/min - 830 mm/min
Feed speed Y-axis 30 mm/min - 830 mm/min
Feed speed Z-axis 23 mm/min - 625 mm/min
Drive capacity
Motor rating horiz./ vert. 3 kW
Measures and weights
Overall dimensions (length x width x height) 1,9 m x 1,75 m x 2 m
Weight 1950 kg

  • Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
  • Large rectangular guideways ensure precision and quiet operation within permissible high loads
  • Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
  • The milling table features a large setup area and can be rotated in linear direction
  • Quiet, precision-made headstock gears with hardened and ground gears
  • Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
  • By combining both swivel levels, almost any spatial angle can be set
  • Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
  • Powerful servo-motor for infinite variation of feeds in all 3 axes
  • Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
  • Control panel swivels for comfortable operation
  • Coolant system and chip tray are included
