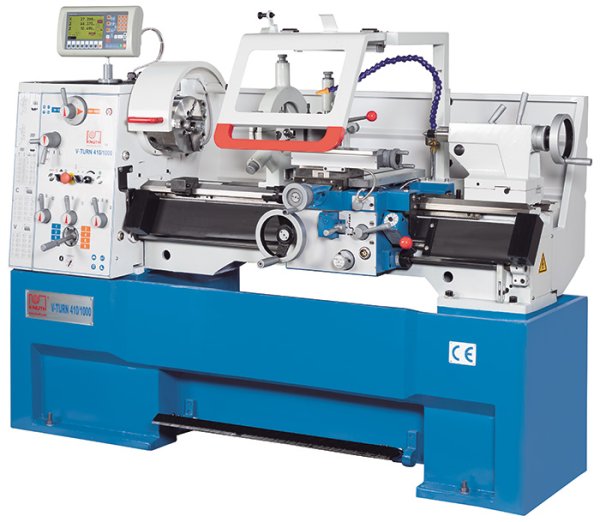

V-Turn 410/1500

SKU : 300821

Our bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 1/min and processes workpieces with small diameters efficiently and of the best quality. The models also offer strength and stability for heavier machining. When facing, the "constant cutting speed" function integrated in the X-Pos adapts the spindle speed to the turning diameter and thus delivers quality that is comparable to the results of a CNC machine.

  • Constant cutting speed
  • High spindle speed and motor power
  • Extensive standard equipment
  • Roller bearing from world-leading manufacturer NSK
Working area
Center width 1500 mm
Center height 205 mm
Turning diameter over bed 380 mm
Turning diameter over gap bridge 580 mm
Turning-Ø over support 255 mm
Gap bridge length 250 mm
Bed width 250 mm
Travels
Travel X-axis 210 mm
Travel Z1-axis 140 mm
Swing range of top slide ± 45°
Headstock
Speed range, high 550 1/min - 3000 1/min
Speed range, low 30 1/min - 550 1/min
Spindle bore 52 mm
Spindle mount Camlock D1-6
Spindle taper 6 MT
Feed
Feed X-axis 0,025 mm/R - 0,85 mm/R
Feed Z-axis 0,05 mm/R - 1,7 mm/R
Threading
Threading, metric (39) 0,2-14 mm
Threading, diametric (21) 8-44 DP
Threading, module 0,3 mm - 3,5 mm
Threading, whitworth (45) 2-72 TPI
Tailstock
Tailstock quill diameter 50 mm
Tailstock taper 4 MT
Tailstock quill stroke 120 mm
Tailstock traverse adjustment ± 13 mm
Drive capacity
Motor rating main drive 5,5 kW
Measures and weights
Overall dimensions (length x width x height) 2,44 m x 1 m x 1,32 m
Weight 1800 kg

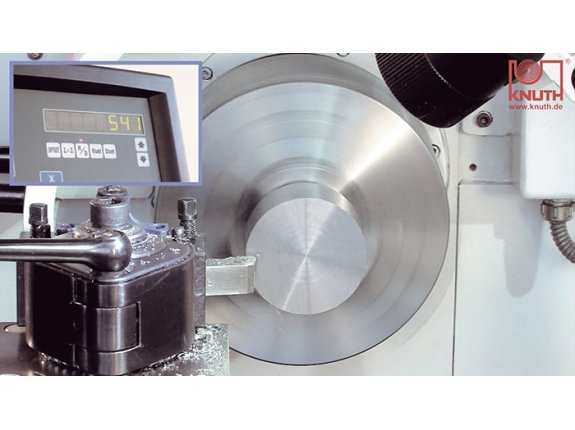

  • Constant cutting speed: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes

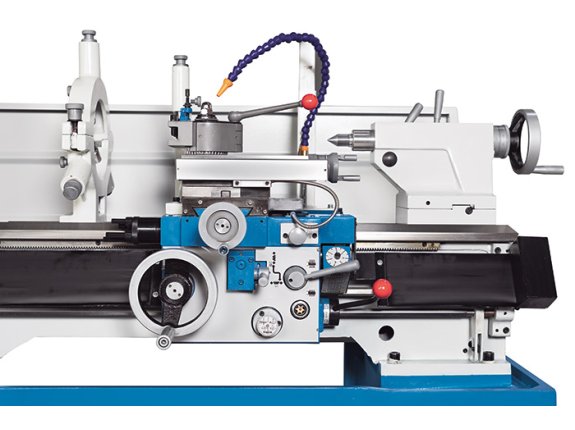

  • A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
  • Wide, hardened and ground guideways ensure superior turning results and long life
  • Large spindle bearings and high-precision headstock ensure excellent concentricity
  • Headstock gears and shafts are hardened and ground for quiet operation und constant speed
  • 5.5 kW headstock motor ensures powerful machining
  • Spindle speeds are infinitely variable from 30 to 550 and 550 to 3000 rpm
  • Micrometer and turret stop are included
  • Integrated central lubrication at the support for low maintenance
  • The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function

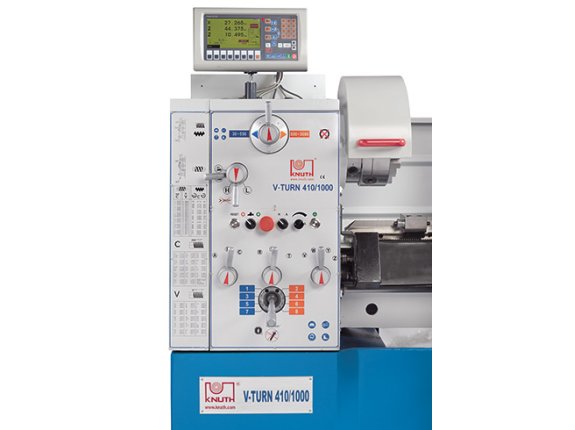

  • Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
  • The electromagnetic brake on the main spindle is maintenance-free and slows the machine safely and reliably

3-axis position indicator, X.pos 3.2 VC SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
3-axis position indicator, X.pos 3.2 VC
3-axis position indicator, X.pos 3.2 VC SKU:
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
4-jaw face plate chuck Ø 250 mm
4-jaw face plate chuck Ø 250 mm SKU:
  • independent 4 jaw chuck
  • size of Ø 250 mm
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 350 mm
Face plate Ø 350 mm SKU:

Face plate diam. Ø350 mm

Quick change tool holder head WB
Quick change tool holder head WB SKU:

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0,01 mm.

Quick change tool holder WBD 25120
Quick change tool holder WBD 25120 SKU:
  •  Tool holder WBD 25120
  •  Side 25×120 mm
Coolant system
Coolant system SKU:
Steady rest
Steady rest SKU:

Max. working diameter Ø130 mm

Turret stop
Turret stop SKU:

Turret stop with 4 positions which are used as spacers when paired with a micrometre stop

Micrometer stop
Micrometer stop SKU:

Increases the precision of operations and reduces downtimes spent for part measuring.

Chip tray
Chip tray SKU:
Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Protective shield for the toolpost
Protective shield for the toolpost SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

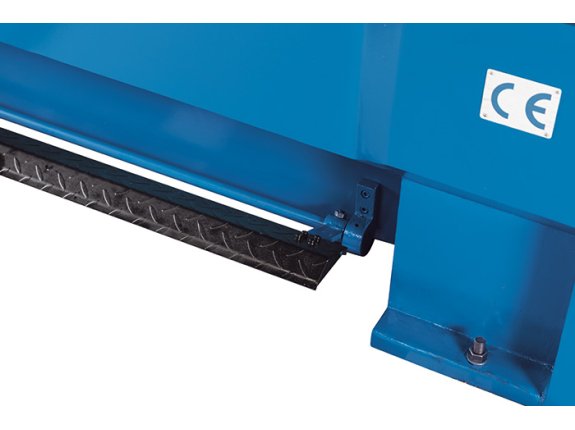

Foot brake pedal
Foot brake pedal SKU:
Work light
Work light SKU:
Thread gauge
Thread gauge SKU:
Toolbox with operating tools
Toolbox with operating tools SKU:
Operator instructions
Operator instructions SKU:
Follow rest
Follow rest SKU:

Max. working diameter Ø70 mm

Dead center
Dead center SKU:
Reducing Sleeve
Reducing Sleeve SKU:

3-axis position indicator, X.pos 3.2 VC

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
