VB 585 A

SKU : 102643

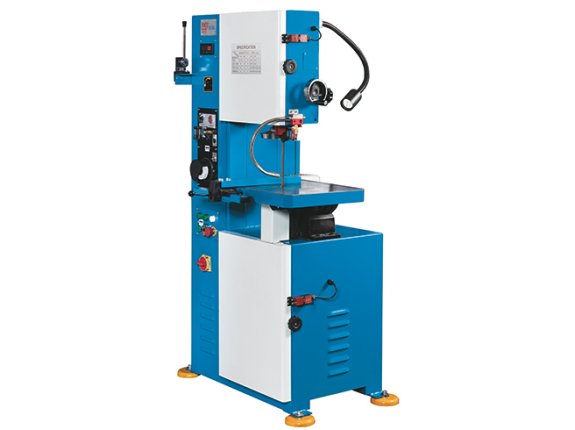

A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides

  • Swiveling table
  • Infinitely variable belt speed
  • Adjustable saw blade guide with carbide jaws
  • Saw blade welder with shearing and grinding unit
Working area
Table dimensions 700 mm x 660 mm x 1002 mm
Table with angle adjustment (l/r) 15/30 deg
Cutting Capacities
Cutting capacity height x throat 336 mm x 585 mm
Cutting speed 15 m/min - 328 m/min
Drive capacity
Motor rating main drive 1,5 kW
Motor rating grinding 0,09 kW
Blade welder capacity 2,4 kVA
Measures and weights
Blade width 6 mm - 19 mm
Blade length 4430 mm - 4520 mm
Overall dimensions (length x width x height) 1,33 m x 1,06 m x 2,11 m
Weight 555 kg

  • The machine frame features a torsionally rigid steel construction for a robust and sturdy design
  • Functional and practical design, plus easy handling are common features of this entire series
  • The support table swivels to the right and left for angled cuts
  • The saw blade speed is controlled electronically and shown on a large digital display

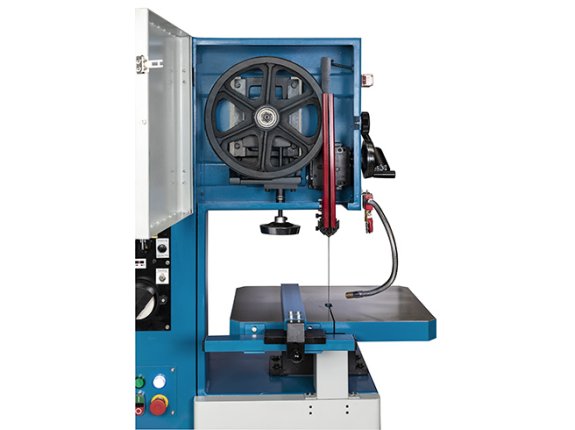

  • The saw blade guides feature carbide jaws that can be adjusted exactly to different saw blade widths
  • Drive gear and idler feature replaceable plastic covers
  • Blade tensioning can be micro-adjusted via an accessible hand-wheel
  • The standard micro-cooling spray increases saw blade life, saves machining time and reduces cost

Saw blade welder assembly SKU:
Saw blade welder assembly
Saw blade welder assembly SKU:
Blade cutting unit
Blade cutting unit SKU:
Work lamp
Work lamp SKU:
Saw-band
Saw-band SKU:
Coolant system
Coolant system SKU:
Adjustable material stop for table
Adjustable material stop for table SKU:
Operator instructions
Operator instructions SKU:
