Linear guides and preloaded preloaded ball screws

Linear-roller guides for super quiet operation

Siemens Sinumerik 828D with ShopMill

Tool changer with double-arm and BT40 spindle

Wide opening front doors

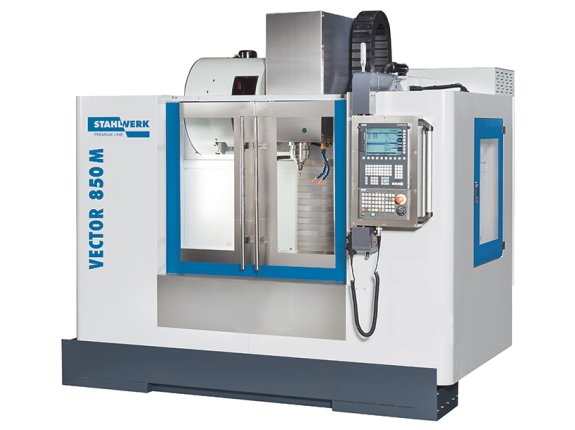

VECTOR 850 M SI

SKU : 181432

The Vector series is the compact all-in-one machining solution, designed and preconfigured for complex manufacturing challenges. The machines are designed using the latest FEM analysis software. The production takes place under strict quality control in order to guarantee perfect execution. Both the tried and tested Meehanite cast and the delta construction of the column ensure additional stability of the machine frame. The consistently high-quality components guarantee smooth operation during multiple shifts.

Extra-wide Y-shaped Meehanite column for maximum stability
30-bar CTS to ensure optimum machining quality
Designed for multi-shift operation
Many customization and automation possibilities

Working area
Table dimensions	1000 mm x 550 mm
Table load capacity	800 kg
Spindle nose-to-table surface distance	150 mm - 700 mm
Spindle center - column	520 mm

Travels
Travel X-axis	850 mm
Travel Y-axis	550 mm
Travel Z-axis	550 mm
Guideway	Roller

Headstock
Spindle speed	10000 1/min
Spindle mount	SK 40 ISO 7388-1 (DIN 69871)
Torque, constant	57 Nm
Spindle bearing	7012 x 4
Spindle drive method	Riemenantrieb

Rapid feed
Rapid feed X-/ Y-axis	36000 mm/min
Rapid feed Z-axis	15000 mm/min

Feed
Work feed X-axis	10000 mm/min
Work feed Y-axis	10000 mm/min
Work feed Z-axis	10000 mm/min

Tooling
Tool changer type	Doppelarm
Number of tool stations	24 positions
Tool selection	Memory random
Tool size Ø x L (max.)	80 mm x 300 mm
Tool weight max.	7 kg
Tool-change time tool/tool	1,8 sec
Tool-changing time chip/chip	3,9 sec

Accuracies
Repeatabilities	± 0,003 / ± 0,00012" mm
Positioning accuracies	± 0,005/ 0,0002" mm

Drive capacity
Main drive, continuous load	9 kW
Total power consumption	15 kVA
Voltage	400 V
Mains frequency	50 Hz

Control
Control	Siemens

Measures and weights
Overall dimensions (length x width x height)	2,42 m x 2,2 m x 2,7 m
Weight	4300 kg

Highlights

Rigid machine structure with extra deep center of gravity and small footprint

Machine Design

30 mm preloaded ball screws combined with a digital drive package provide a rigid table guide and high torque
A major focus during development of this machine was a space-saving design

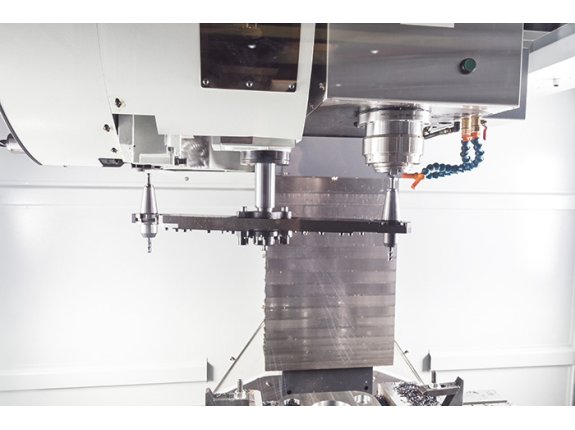

Dual-arm tool changer with 24 stations ensures adequate flexibility and capacity for every day production needs
The Vector Series features linear guides on X, Y and Z to ensure high accuracy made possible by lower friction
30-Bar internal cooling for optimum machining quality

Spindle

Spindle runs on multiple bearings to ensure excellent absorption and dissipation of forces during machining

Tool Changer

Changing times (1.8 seconds tool-to-tool and 3.9 seconds chip-to-chip) increase spindle up-time and machine output

Control Siemens Sinumerik 828D

The top specialist for demanding milling operations

Compact, robust, maintenance-free control panel-based CNC
Comfortable program and parameter input via QWERTY keyboard
100 adjustable zero offsets
Synchronous actions, and quick output of help functions
Siemens Sinumerik 828 D Milling
Maximum machining precision
Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
Highlights & CNC performance data and functions Siemens Sinumerik 828 D Milling
ShopMill: shortest programming time for single parts and small batch productions
ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
Animated Elements: unique operation and programming assistance with animated sequences
Modern data transfer options via USB stick, CF card and network (Ethernet)
Easy Message: maximum machine availability due to process monitoring per texting (SMS)
SINUMERIK MDynamics package with Advanced Surface for mold making applications
Jerk-limited acceleration
Dynamic feed-forward control
4-axis simultaneous interpolation (X, Y, Z and rotary axis)
Linear, circular and helical interpolation
Tapping without compensating chuck, plus thread cutting
Oriented spindle hold
Toggle between inch and metric units
FRAME concept for individual coordinate transformations, rotations, scaling and mirroring

Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

Compact, robust, maintenance-free control panel-based CNC
Comfortable program and parameter input via QWERTY keyboard
Maximum machining precision
Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
ShopMill: shortest programming time for single parts and small batch productions
ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
Animated Elements: unique operation and programming assistance with animated sequences
Modern data transfer options via USB stick, CF card and network (Ethernet)
Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

Control-panel based high-performance CNC Control
Robust front control panel made of magnesium die-casting
Integreated full-size QWERTY keyboard
Maintenance-free design (no buffer battery required)

CNC performance data and functions

SINUMERIK MDynamics package with Advanced Surface for mold making applications
Dynamic feed-forward control
4-axis simultaneous interpolation (X, Y, Z and rotary axis)
Linear, circular and helical interpolation
Tapping without compensating chuck, plus thread cutting
Oriented spindle holder
Toggle between inch and metric units
FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
100 adjustable zero offsets
Synchronous actions and quick help function output

CNC technology cycles

Technology cycles for programGUIDE and ShopMill work step programming are available
Large selection of drilling cycles
Large selection of milling cycles for standard geometry
Large selection of position patterns for drilling and milling operations
High-speed settings for mold making applications
Geometry calculator for free contour input
Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

Animated Elements: input help for machining parameters with animated sequences
Graphical online help system, similar to PC system
Graphical CNC simulation with level display

CNC tool management

Display of tool and magazine data on one screen
Tool management with plain-text tool names
Loading/unloading feature for easy magazine assignment
Tool management with tool life monitoring
10.4“ TFT color monitor
Jerk-limited acceleration

Siemens 828D control with Shopmill

Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

Compact, robust, maintenance-free control panel-based CNC
Comfortable program and parameter input via QWERTY keyboard
Maximum machining precision
Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
ShopMill: shortest programming time for single parts and small batch productions
ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
Animated Elements: unique operation and programming assistance with animated sequences
Modern data transfer options via USB stick, CF card and network (Ethernet)
Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

Control-panel based high-performance CNC Control
Robust front control panel made of magnesium die-casting
Integreated full-size QWERTY keyboard
Maintenance-free design (no buffer battery required)

CNC performance data and functions

SINUMERIK MDynamics package with Advanced Surface for mold making applications
Dynamic feed-forward control
4-axis simultaneous interpolation (X, Y, Z and rotary axis)
Linear, circular and helical interpolation
Tapping without compensating chuck, plus thread cutting
Oriented spindle holder
Toggle between inch and metric units
FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
100 adjustable zero offsets
Synchronous actions and quick help function output

CNC technology cycles

Technology cycles for programGUIDE and ShopMill work step programming are available
Large selection of drilling cycles
Large selection of milling cycles for standard geometry
Large selection of position patterns for drilling and milling operations
High-speed settings for mold making applications
Geometry calculator for free contour input
Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

Animated Elements: input help for machining parameters with animated sequences
Graphical online help system, similar to PC system
Graphical CNC simulation with level display

CNC tool management

Display of tool and magazine data on one screen
Tool management with plain-text tool names
Loading/unloading feature for easy magazine assignment
Tool management with tool life monitoring
10.4“ TFT color monitor
Jerk-limited acceleration

Coolant through spindle 30 bar with double filter

24-station tool changer with dual-arm

Main spindle motor 9 kW

ST 40 mount

Spindle oil cooler

Chain-type conveyor with chip container

Electronic hand-wheel

Oil skimmer

Automatic central lubrication

Coolant system flush gun

Chip wash system

Heat Exchanger for electric control cabinet

Telescoping axis cover

USB port

Ethernet port (LAN)

Work lamp

3-color signal lamp

CF card reader

Totally enclosed work space

Coolant system

Adjustable machine feet

Operating tools

Operator instructions

Preparation for Renishaw TS 27 R

Siemens 828D control with Shopmill

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

Compact, robust, maintenance-free control panel-based CNC
Comfortable program and parameter input via QWERTY keyboard
Maximum machining precision
Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
ShopMill: shortest programming time for single parts and small batch productions
ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
Animated Elements: unique operation and programming assistance with animated sequences
Modern data transfer options via USB stick, CF card and network (Ethernet)
Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

Control-panel based high-performance CNC Control
Robust front control panel made of magnesium die-casting
Integreated full-size QWERTY keyboard
Maintenance-free design (no buffer battery required)

CNC performance data and functions

SINUMERIK MDynamics package with Advanced Surface for mold making applications
Dynamic feed-forward control
4-axis simultaneous interpolation (X, Y, Z and rotary axis)
Linear, circular and helical interpolation
Tapping without compensating chuck, plus thread cutting
Oriented spindle holder
Toggle between inch and metric units
FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
100 adjustable zero offsets
Synchronous actions and quick help function output

CNC technology cycles

Technology cycles for programGUIDE and ShopMill work step programming are available
Large selection of drilling cycles
Large selection of milling cycles for standard geometry
Large selection of position patterns for drilling and milling operations
High-speed settings for mold making applications
Geometry calculator for free contour input
Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

Animated Elements: input help for machining parameters with animated sequences
Graphical online help system, similar to PC system
Graphical CNC simulation with level display

CNC tool management

Display of tool and magazine data on one screen
Tool management with plain-text tool names
Loading/unloading feature for easy magazine assignment
Tool management with tool life monitoring
10.4“ TFT color monitor
Jerk-limited acceleration

Upgrade Spindle Taper from SK40 to HSK63

Upgrade Spindle Taper from SK40 to HSK63 SKU: 253953

Top cover for X.Mill/Vector 650-1000 SKU: 252819

Renishaw OMP 40 Workpiece Measuring SKU: 252820

Arm Type BT40 upg. from 24 to 30 tools SKU: 252967

Connection for 4th axis (wiring only and axis chart) SKU: 253019

Siemens Function: P25: 3D Simulation SKU: 253378

Siemens Function: P13: Residual Material Detection SKU: 253379

Siemens Function: P22: Simultaneous Recording SKU: 253380

Renishaw Tool Setter TS27R SKU: 253386

Measuring Cycles SKU: 253438

Renishaw OTS wireless tool setter (OTS) SKU: 253598

Ø170mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253605

Ø210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253606

preparation for Renishaw OMP40 SKU: 253613

manual tailstock ST-170T for rotary table for X.mill SKU: 253618

manual tailstock ST-210T for rotary table for X.mill SKU: 253619

manual 6'' chuck for rotary table for X.mill SKU: 253622

manual 8'' chuck for rotary table for X.mill SKU: 253623

Upgrade from 10.4” to 15” touch screen (for PPU260 or higher) SKU: 253674

Renishaw OMP 60 workpiece measuring system (BT40) SKU: 253681

200 mm diam. 4th & 5th axis for Vector 650/850/1000 (Si) SKU: 253682

Upgrade from 828D PPU260 to 840DSL IPC447E 10.4" for Vector SKU: 253835

Upgrade Spindle Taper from SK40 to BBT 40 SKU: 253951

12,000 rpm, direct drive CTS for Vector 650-1200(Si) SKU: 253956

Z axis travel upgrade from 550 to 800 mm for X.mill SKU: 253625

Spindle speed upgrade to 12000 rpm, belt-type SKU: 253781

Optional Accessories

Explore the range of compatible accessories in stock

Milling Arbors & Milling Chucks Pull stud DIN 69872A SK40 with hole

SKU : 253962

SmartFactory E.T. Box LAN

SKU : 270307

SmartFactory E.T. Box WIFI

SKU : 270308

SmartFactory E.T. Box W4G

SKU : 270309

Drill Chucks Keyless Drill Chuck 1-13 mm B 16

SKU : 104765

Drill Chucks Keyless Drill Chuck 3-16 mm B 18

SKU : 104770

Vises HNCS 160V hydraulic machine vise

SKU : 104934

Vises Dial for HNCS 160V

SKU : 104935

Clamping Kits De Luxe Clamping Tool Set 18/M16

SKU : 105305

Clamping Kits Swivel Hold-Down Clamp Set 125/M16

SKU : 105800

Collets & Chucks ER 32 Collet Set 6 pcs.

SKU : 106052

Collets & Chucks ER 40 Collet Set 15 pcs.

SKU : 106075

Collets Angle Collet Fixture (vertical + horizontal)

SKU : 106090

Collets 5-C-Collet Clamp-Ø 1 mm

SKU : 106103

Collets 5-C-Collet Clamp-Ø 2 mm

SKU : 106104

Collets 5-C-Collet Clamp-Ø 3 mm

SKU : 106105

Collets 5-C-Collet Clamp-Ø 4 mm

SKU : 106110

Collets 5-C-Collet Clamp-Ø 25 mm

SKU : 106215

Chip Removal Power Worker Metal Cutter

SKU : 123040

Vises HS 150 Hydraulic machine vise

SKU : 125028

Vises Corrugated Parallel Parts 9-23mm

SKU : 128960

Vises Corrugated Parallels 25-39mm

SKU : 128961

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 13

SKU : 192926

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 16

SKU : 192927

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 22

SKU : 192928

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 27

SKU : 192929

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 32

SKU : 192930

Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 40

SKU : 192931

Drill Chucks drill chuck arbor DIN 69871, SK 40, B16

SKU : 193033

Drill Chucks drill chuck arbor DIN 69871, SK 40, B18

SKU : 193034

Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT1

SKU : 193037

Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT2

SKU : 193038

Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT3

SKU : 193039

Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT4

SKU : 193040

Collets & Chucks collet chuck DIN 69871, SK40, ER 40

SKU : 193064

Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 20

SKU : 193078

Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 25

SKU : 193079

Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 32

SKU : 193080

Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 40

SKU : 193081

Similar Products

VECTOR 650 M SI

Travel X-axis: 650 mm

Travel Y-axis: 550 mm

VECTOR 1000 M SI

Travel X-axis: 1.000 mm

Travel Y-axis: 550 mm

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals

Service by KNUTH

All machines need an occasional pit stop. With our all-encompassing plans for service, training and installation you always will get the best possible performance from your KNUTH machines.

View Services

See KNUTH Machines in action

Get a first-hand impression at one of our facilities! Many machines in our portfolio are always in stock and available for demonstration.

Book a Demo

VECTOR 850 M SI

SKU : 181432

Salutation *

First Name *

Last Name *

Email *

Phone number *

Job function *

Company *

Country *

Postcode

Company address

Industry *

Size of machine facilities *

Requested delivery date *

Message

I agree to KNUTH's privacy policy and terms and conditions

Subscribe me to the newsletter

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Explore more machines Book a demo for this machine

Something went wrong

Please refresh the page and try submitting the form again.

Salutation *

First Name *

Last Name *

Email *

Phone number *

Company *

Country *

Postcode

Company address

Best way to contact *

Message

I agree to KNUTH's privacy policy and terms and conditions

Subscribe me to the newsletter

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

Select service type *

Machine name *

Serial number *

Tell us more about your request

Salutation *

First Name *

Last Name *

Email *

Phone number *

Company *

Country *

City *

Postcode *

Street *

I agree to KNUTH's privacy policy and terms and conditions

Subscribe me to the newsletter

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank You!

We have received your request and appreciate your interest! Our service representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

VECTOR 850 M SI

Siemens 828D control with Shopmill

Resources & Downloads

Optional Accessories

Similar Products

VECTOR 650 M SI

VECTOR 1000 M SI

VECTOR 650 M SI

VECTOR 1000 M SI

Need help finding a machine?

Service by KNUTH

See KNUTH Machines in action

Request a quote

Request a Consultation

Request a service
