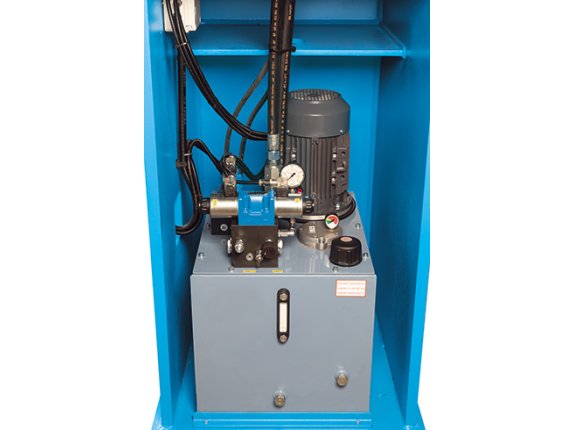

Frame-integrated hydraulic system saves space and is easily accessible

Frame-integrated hydraulic system saves space and is easily accessible

HPK 100 A - C-form press in compact design, the perfect solution for punching, forming and drawing
The large Siemens touchscreen simplifies operation
The workspace is protected by light curtains
Frame-integrated hydraulic system saves space and is easily accessible
HOT DEAL

This machine is part of our seasonal sale. Ask our representative for the discounted price.

HPK 100 A

SKU : 423507
Custom Model

HPK-A series are space efficient presses with three-sided access. The machines are completely built in Europe using high quality components from renown suppliers to guarantee a high reliability and lasting value. These models are highly versatile, handling with ease many applications, from punching, straightening to forming and drawing, thus being present in most industry segments. Additionally, we offer tailored solutions based on specific customer requirements.

  • Classic design with c-frame
  • Completely built in Europe for high reliability
  • Designed for testing or batch production
  • Possibility of Industry 4.0 integration
  • Customized solution available
Quick delivery
Working area
Pressure force 100 t
Table dimensions 800 mm x 600 mm
Stroke 500 mm
Ram-plate size 700 mm x 350 mm
Throat 300 mm
Stroke speed 4 mm/s
Rapid feed
Rapid feed 25 mm/s
Drive capacity
Motor rating 4 kW
Measures and weights
Overall dimensions (length x width x height) 1,9 m x 1,2 m x 2,6 m
Weight 3400 kg

  • Made in Europe - perfectly welded C-frame steel construction for high rigidity, designed for maximum machine force
  • Large ram plates and work tables to ensure large tools or multiple setups
  • Hydraulic presses are extremely versatile due to their distance/time flexibility of the stroke

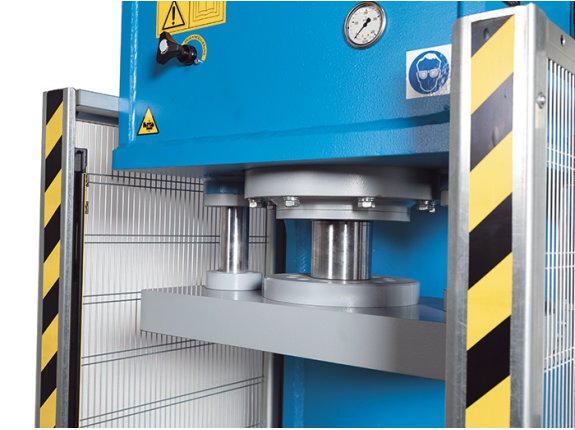

  • A powerful hydraulic cylinder and two self-lubricating circular guides ensure precise and uniform feed of the ram plate during press operations
  • Precision-machined cylinder surfaces and high-quality seals ensure low wear and long lasting reliability
  • Rapid adjustment of stroke length via easy to set stops
  • Space saving hydraulic system located accessibly inside the frame
  • 2-step hydraulic pump for fast rapid feeds and optimum stroke speeds
  • Ram plate and work table with t-slots for tool clamping
  • A mobile control panel provides flexibility, while additional controls are easily accessible integrated in the control cabinet
  • All components are made according to strict standards, and the entire construction meets European safety guidelines

This machine comes with the following accessories:

  • Light curtain 1,000 mm long
  • Upgrade to Siemens KTP 700 Basic control

Two-hand control panel SKU:
Two-hand control panel
Two-hand control panel SKU:
Adjustable stops for up/downstroke
Adjustable stops for up/downstroke SKU:
Pressure gauge
Pressure gauge SKU:
Movable upper table with 2 guides and T-slots
Movable upper table with 2 guides and T-slots SKU:
Automatic operation
Automatic operation SKU:
Automatic cylinder return
Automatic cylinder return SKU:
Siemens PLC
Siemens PLC SKU:
Hydraulic unit with 2 speed automatic change
Hydraulic unit with 2 speed automatic change SKU:
Pressure switch
Pressure switch SKU:
Timer
Timer SKU:
Operator manual
Operator manual SKU:
Light curtain L = 1,000 mm
Light curtain L = 1,000 mm SKU:
SKU:
